5. CARBURETOR

Click Here for Microfiche Usage Tip

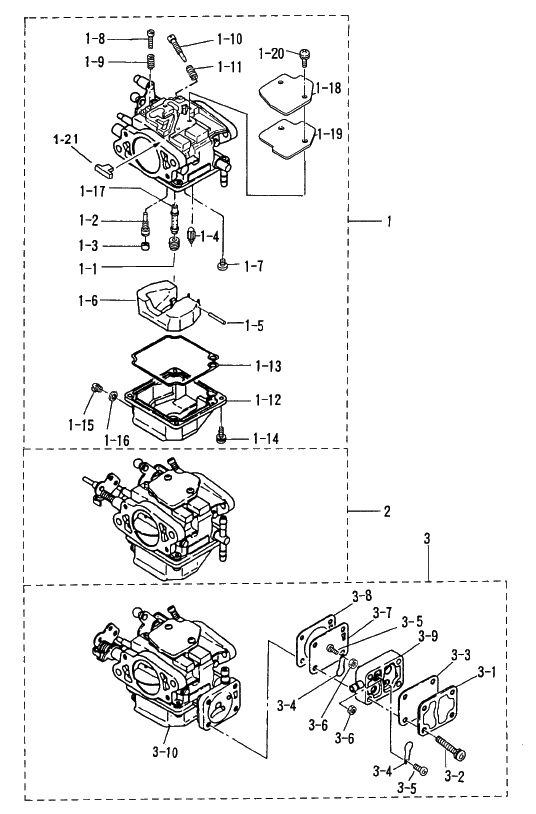

(1) CARBURETOR UPPER(1-1) MAIN JET # 132(1-1) MAIN JET# 135(1-2) SLOW JET # 80(1-3) PLUG(1-4) FLOAT VALVE(1-5) ARM PIN, FLOAT(1-6) FLOAT(1-7) SCREW(1-8) STOP SCREW(1-9) SPRING "A"(1-10) ADJUST SCREW(1-11) SPRING "B"(1-12) FLOAT CHAMBER(1-13) GASKET(1-14) SCREW(1-15) DRAIN SCREW(1-16) GASKET(1-17) MAIN NOZZLE(1-18) CARBURETOR COVER(1-19) GASKET, CARBURETOR COVER(1-20) SCREW(1-21) GROMMET(2) CARBURETOR CENTER(3) CARBURETOR LOWER(3-1) PUMP COVER(3-2) SCREW(3-3) GASKET, PUMP COVER(3-4) CHECK VALVE(3-4) CHECK VALVE(3-5) SCREW(3-5) SCREW(3-6) NUT(3-6) NUT(3-7) DIAPHRAGM PUMP(3-8) GASKET, PUMP BODY(3-9) PUMP BODY(3-10) FLOAT CHAMBER (LOWER)



Parts List
2003 :: 50 HP :: 2 Stroke Nissan NS50D2 :: CARBURETOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CARBURETOR UPPER 3E3032003M 3E3-03200-3 3E3 4 / 50D2 # 59260~ $181.71 1 Sold Out View More Details
(1-1) MAIN JET # 132 3E3034450M 3E3-03445-0 X2 UPPER CENTER $5.20 1
(1-1) MAIN JET# 135 3E3031511M 3E3-03151-1 X1 LOWER $5.48 1
(1-2) SLOW JET # 80 3M2031520M 3M2-03152-0 X3 $11.14 1
(1-3) PLUG 3C8031690M 3C8-03169-0 X3 $2.31 1
(1-4) FLOAT VALVE 3E3031470M 3E3-03147-0 X3 $13.25 1
(1-5) FLOAT ARM PIN 3C8031260M 3C8-03126-0 X3 $2.39 1
(1-6) FLOAT 3C8031250M 3C8-03125-0 X3 $14.32 1
(1-7) SCREW 9217220410M 921722-0410 X3 $0.52 1
(1-8) STOP SCREW 3C8031790M 3C8-03179-0 UPPER CARBURETOR $5.07 1
(1-9) SPRING B 3C8031570M 3C8-03157-0 UPPER CARBURETOR $2.42 1
(1-10) ADJUST SCREW 3C8031560M 3C8-03156-0 X3 UPPER CENTER LOWER $7.59 1
(1-11) SPRING B 3C8031570M 3C8-03157-0 X3 $2.42 1
(1-12) FLOAT CHAMBER 3C8031200M 3C8-03120-0 X2 UPPER CENTER $34.51 1
(1-13) GASKET CARBURETOR 3C8031210M 3C8-03121-0 X3 UPPER CENTER LOWER $4.40 1
(1-14) SCREW 9225320412M 922532-0412 X3 $1.27 4 Sold Out View More Details
(1-15) DRAIN SCREW 9103320405M 910332-0405 X3 $5.11 1
(1-16) GASKET 3C8031930M 3C8-03193-0 X3 $3.05 1
(1-17) MAIN NOZZLE 3E3031410M 3E3-03141-0 X3 $18.20 1
(1-18) CARBURETOR COVER 3C8031810M 3C8-03181-0 X3 $6.90 1
(1-19) GASKET CARBURETOR 3C8031820M 3C8-03182-0 X3 $4.38 1
(1-20) SCREW 9225226410M 922522-6410 X3 OR 922503-6410 $1.79 2
(1-21) GROMMET 3C8031830M 3C8-03183-0 X3 $4.93 1
(2) CARBURETOR CENTER 3E3032073M 3E3-03207-3 50D2 #59260~ $230.17 1
(3) CARBURETOR LOWER 3E3032103M 3E3-03210-3 50D2 #59260~ $181.71 1
(3-1) PUMP COVER 3C8040040M 3G2-04004-0 $9.46 1
(3-2) SCREW 9225316525M 922531-6525 $5.29 4
(3-3) GASKET PUMP COVER 3C8040180M 3C8-04018-0 $4.00 1
(3-4) CHECK VALVE 350040140M 350-04014-0 $3.74 2
(3-5) SCREW 9217030305M 921703-0305 $0.90 2
(3-6) NUT 9302030300M 930203-0300 $1.25 2
(3-7) DIAPHRAGM PUMP 350040050M 350-04005-0 $13.25 1
(3-8) GASKET PUMP BODY 3C8040280M 3C8-04028-0 $3.87 1
(3-9) PUMP BODY 3C8040020M 3C8-04002-0 $11.96 1
(3-10) FLOAT CHAMBER (LOWER) 3C8031230M 3C8-03123-0 $41.45 1
