19. BRACKET (1) MANUAL TILT

Click Here for Microfiche Usage Tip
(1) STERN BRACKET RIGHT(2) STERN BRACKET LEFT(3) BRACKET BOLT(4) NYLON NUT, 7/8(5) BUSHING, BRACKET BOLT(5) BUSHING, BRACKET BOLT(6) BUSHING, 22-25-35.5(7) CAP(7) CAP(8) DISTANCE PIECE(9) BOLT, 8-170(10) WASHER(11) NUT(12) THRUST ROD(13) SPRING, THRUST ROD(14) CLAMP SCREW ASSY(14-1) CLAMP SCREW(14-2) HANDLE, CLAMP SCREW(14-3) RIVET, 3-22(15) PAD, CLAMP SCREW(16) SWIVEL BRACKET(17) STEERING SHAFT(18) BUSHING, 26-32(18) BUSHING, 26-32(19) FRICTION PLATE, BRACKET(20) BOLT(21) SPRING, FRICTION PLATE(22) THRUST PLATE, 27-50-1(23) THRUST PLATE, 26.5-46-1(24) O-RING, 3.5-25.7(25) C-RING, D=25(26) GREASE NIPPLE(27) WASHER(29) MOUNT RUBBER LOWER(30) MOUNT BRACKET(31) DAMPER RUBBER(32) BOLT, MOUNT RUBBER LOWER(33) WASHER, 13-34-3(34) DAMPER RUBBER, 21-36-5(35) NYLON NUT, 12-P1.75(36) WASHER(36) WASHER(37) CAP, MOUNT RUBBER LOWER(37) CAP, MOUNT RUBBER LOWER(38) BOLT(38) BOLT(39) GROUND CABLE(40) GROUND CABLE(41) BOLT(41) BOLT(42) MOUNT RUBBER UPPER(43) BOLT, UPPER MOUNT RUBBER(44) DAMPER RUBBER UPPER(45) LOCK PLATE UPPER(46) CAP, MOUNT RUBBER UPPER(47) BOLT(48) ANODE(49) BOLT(50) ANODE, STERN BRACKET(51) BOLT(52) GROUND CABLE(53) BOLT



Parts List

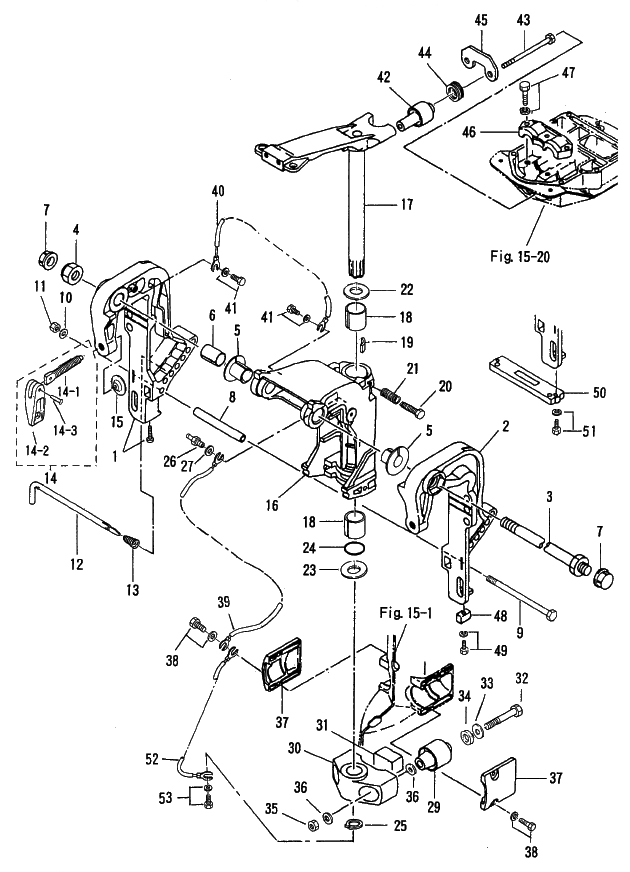

2003 :: 40 HP :: 2 Stroke Tohatsu M40D2 :: BRACKET (1) MANUAL TILT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STERN BRACKET RIGHT 3C8S621120 3C8S62112-0 STARBOARD $0.00 1 Sold Out View More Details
(2) STERN BRACKET LEFT 3C8S621130 3C8S62113-0 PORT $0.00 1 Sold Out View More Details
(3) BRACKET BOLT 346621910M 346-62191-0 $41.18 1
(4) NYLON NUT 7/8 346621240M 346-62124-0 $21.14 1
(5) BUSHING BRACKET BOLT 349621260M 349-62126-0 $4.83 2
(6) BUSHING 22-25-35.5 3C8621320M 3C8-62132-0 $4.83 1
(7) CAP BRACKET BOLT 346621270M 346-62127-0 FOR F TYPE $2.31 2
(8) DISTANCE PIECE 3C8621170M 3C8621170M $13.43 1
(9) BOLT 8-170 3C8621200M 3C8621200M $9.09 1
(10) WASHER 9401130800M 940113-0800 $0.84 1
(11) NUT 9301130800M 930113-0800 $1.99 1 Sold Out View More Details
(12) THRUST ROD 3C8621211M 3C8-62121-1 $19.27 1 Sold Out View More Details
(13) SPRING THRUST ROD 345621222M 345-62122-2 $2.19 1 Sold Out View More Details
(14) CLAMP SCREW ASSY 3C8S621001 3C8S62100-1 $0.00 2 Sold Out View More Details
(14-1) CLAMP SCREW 3E3621030M 3E3-62103-0 $56.36 2
(14-2) HANDLE CLAMP SCREW 332S621021 332S62102-1 $7.57 2
(14-3) RIVET 3C8621041M 3C8-62104-1 $0.92 2
(15) CLAMP SCREW PAD 332621010M 332-62101-0 $3.36 2
(16) SWIVEL BRACKET 3C8S623102 3C8S62310-2 50D2 #62427~ / 40D2 #46567~ $0.00 1 Sold Out View More Details
(17) STEERING SHAFT 3C8S620102 3C8S62010-2 50D2 # 64301~ / 40D2 # 48962~ $0.00 1 Sold Out View More Details
(18) BUSHING 26-32-30 345624170M 345-62417-0 50D #54211~ / 40D 38314~ $7.08 2
(19) FRICTION PLATE 345624410M 345-62441-0 $5.55 1
(20) BOLT 9101030830M 910103-0830 OR 910113-0830 $1.38 1
(21) FRICTION SPRING 346624211M 346-62421-1 $3.20 1
(22) THRUST PLATE (UPPER) 3A0624232M 3A0-62423-2 50D2 #62427~ / 40D2 #46567~ $2.82 1
(23) THRUST PLATE (LOWER) 346624241M 346-62424-1 $3.02 1
(24) O-RING 3.5 - 25.7 345624150M 345-62415-0 50D #54211~ / 40D 38314~ $1.10 1 Sold Out View More Details
(25) C-RING D=25 9451032500M 945103-2500 $1.75 1
(26) GREASE FITTING 344671770M 344-67177-0 $2.56 1 Sold Out View More Details
(27) WASHER 9401030600M 940103-0600 OR 940113-0600 $0.70 1
(29) LOWER MOUNT RUBBER 3C8613020M 3C8-61302-0 $46.05 2
(30) MOUNT BRACKET 3C8S614112 3C8S61411-2 50D2 #62427~ / 40D2 #46567~ $83.35 1
(31) DAMPER RUBBER 3C8613360M 3C8-61336-0 $5.69 1
(32) RUBBER MOUNT BOLT (LOWER) 3C8613211M 3C8-61321-1 $9.66 2
(33) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 2
(34) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $12.88 2
(35) NYLON NUT 12-P1.75 9304031200M 930403-1200 $6.47 2
(36) WASHER 9402031200M 940203-1200 OR 940213-1200 $2.10 4
(37) CAP MOUNT RUBBER LOWER 3C8S613420 3C8S61342-0 $0.00 2 Sold Out View More Details
(38) BOLT 9101135620M 910113-5620 $1.30 4
(39) GROUND CABLE 3C8623960M 3C8-62396-0 L=210 $4.56 1
(40) GROUND CABLE 3C8621580M 3C8-62158-0 L=130 $5.75 1 Sold Out View More Details
(41) BOLT 9101135612M 910113-5612 $1.07 2
(42) RUBBER MOUNT (UPPER) 3E3613011M 3E3-61301-1 $32.23 2
(43) RUBBER MOUNT BOLT (UPPER) 353613070M 353-61307-0 $10.35 2
(44) DAMPER (UPPER) 3E3613330M 3E3-61333-0 $8.97 2
(45) LOCK PLATE (UPPER) 3E3613350M 3E3-61335-0 $5.29 1
(46) CAP MOUNT RUBBER UPPER 3C8S613410 3C8S61341-0 $0.00 1 Sold Out View More Details
(47) BOLT 9101135835M 910113-5835 $3.28 3
(48) ANODE 3B7602181M 3B7-60218-1 $13.25 1
(49) BOLT 9101135635M 910113-5635 $1.96 1 Sold Out View More Details
(50) ANODE 3C7602182M 3C7-60218-2 OPTION $19.84 1
(51) BOLT 9101036630M 910103-6630 OPTION $1.30 2
(52) GROUND CABLE 3A3623960M 3A3-62396-0 L=110 $17.85 1
(53) BOLT 9101135612M 910113-5612 $1.07 1
