9. RECOIL STARTER (F TYPE)

Click Here for Microfiche Usage Tip

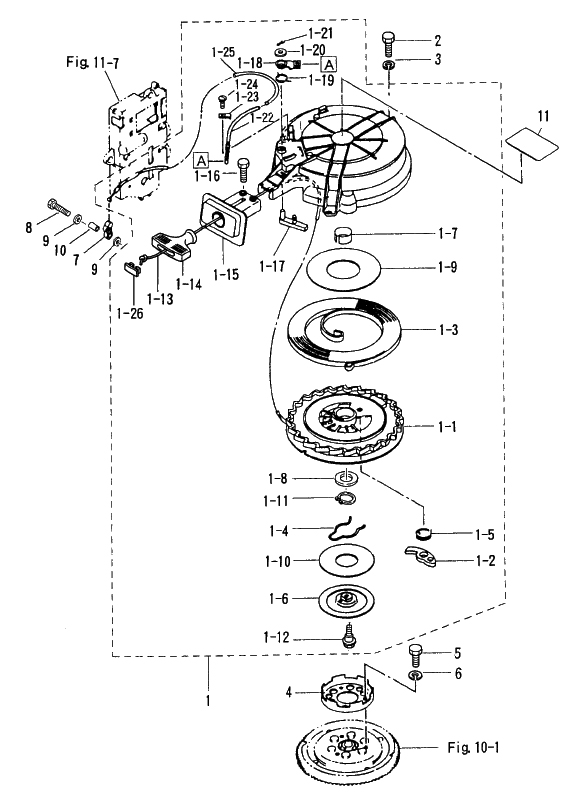

(1) RECOIL STARTER(1-1) REEL(1-2) RATCHET(1-3) STARTER SPRING(1-4) FRICTION SPRING(1-5) RETURN SPRING(1-6) FRICTION PLATE(1-7) BUSHING(1-8) WASHER(1-9) SLIDING PLATE(1-10) SLIDING PLATE(1-11) C-RING(1-12) BOLT(1-13) STARTER ROPE(1-14) STARTER HANDLE(1-15) GUIDE, STARTER ROPE(1-16) BOLT(1-17) REEL STOPPER(1-18) STOPPER ARM(1-19) STOPPER SPRING(1-20) WASHER(1-21) SPLIT PIN(1-22) CABLE(1-23) CABLE HOLDER(1-24) SCREW(1-25) PIPE(1-26) CAP, STARTER HANDLE(2) BOLT(3) SPRING WASHER(4) STARTER PULLEY(5) BOLT(6) SPRING WASHER(7) ARM, STARTER LOCK(8) BOLT(9) WASHER(9) WASHER(10) COLLAR, 6.2-9-9.3(11) CAUTION LABEL (CE-C)



Parts List
2003 :: 40 HP :: 2 Stroke Tohatsu M40D2 :: RECOIL STARTER (F TYPE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RECOIL STARTER 3C8050901M 3C8-05090-1 $157.25 1 Sold Out View More Details
(1-1) REEL 3C8051060M 3C8-05106-0 $92.07 1
(1-2) RATCHET 3C8050030M 3C8-05003-0 $9.89 1
(1-3) STARTER SPRING 3C8050040M 3C8-05004-0 $46.05 1
(1-4) FRICTION SPRING 3C8050070M 3C8-05007-0 $7.34 1
(1-5) RETURN SPRING 3C8050120M 3C8-05012-0 $4.63 1
(1-6) FRICTION PLATE 3C8050060M 3C8-05006-0 $23.01 1
(1-7) BUSHING 3C8051070M 3C8-05107-0 $3.52 1
(1-8) WASHER 3C8051080M 3C8-05108-0 $4.63 1
(1-9) SLIDING PLATE 3C8050230M 3C8-05023-0 $10.35 1
(1-10) SLIDING PLATE 3C8050290M 3C8-05029-0 $5.70 1
(1-11) C-RING 9451272800M 945127-2800 $1.06 1
(1-12) BOLT 3C8051380M 3C8-05138-0 $4.78 1
(1-13) STARTER ROPE 3C8050130M 3C8-05013-0 ø6-2250 $14.31 1
(1-14) STARTER HANDLE 3C8050190M 3C8-05019-0 $14.31 1
(1-15) GUIDE STARTER ROPE 3C8050140M 3C8-05014-0 $59.83 1
(1-16) BOLT 3C8051380M 3C8-05138-0 $4.78 2
(1-17) REEL STOPPER 3C8052520M 3C8-05252-0 $5.55 1
(1-18) STOPPER ARM 3C8052530M 3C8-05253-0 $2.68 1
(1-19) STOPPER SPRING 3C8052160M 3C8-05216-0 $3.91 1
(1-20) WASHER 3C8052370M 3C8-05237-0 $2.31 1
(1-21) SPLIT PIN 9515031520M 951503-1520 $0.88 1
(1-22) CABLE 3C8052170M 3C8-05217-0 $34.51 1
(1-23) CABLE HOLDER 3C8052570M 3C8-05257-0 $2.31 1
(1-24) SCREW 9224310510M 922431-0510 $0.84 1
(1-25) PIPE 3C8052380M 3C8-05238-0 $1.45 1
(1-26) CAP STARTER HANDLE 3R3051310M 3R3-05131-0 $3.04 1
(2) BOLT 9101140625M 910114-0625 $1.04 3
(3) SPRING WASHER 9413030600M 941303-0600 $0.84 3
(4) STARTER PULLEY 3C8059010M 3C8-05901-0 $46.05 1
(5) BOLT 9101140818M 910114-0818 $1.10 3
(6) SPRING WASHER 9413030800M 941303-0800 $0.79 3
(7) ARM STARTER LOCK 3C8052110M 3C8-05211-0 $3.00 1 Sold Out View More Details
(8) BOLT 9101140625M 910114-0625 $1.04 1
(9) WASHER 9401030600M 940103-0600 $0.70 2
(10) COLLAR 6.2 - 9 - 9.3 353760790M 353-76079-0 $4.06 1
(11) CAUTION LABEL (CE-C) 3C7721822M 3C7-72182-2 $1.53 1
