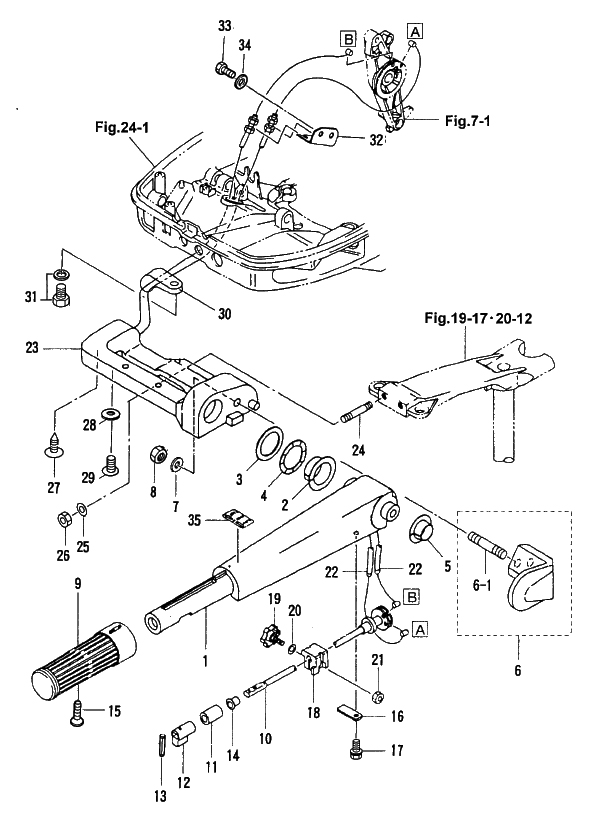

8. STEERING HANDLE (F TYPE)

Click Here for Microfiche Usage Tip
(1) STEERING HANDLE(2) BUSHING "A"(3) WASHER, 30-45-1(4) WAVE WASHER, 30-45-1.2(5) BUSHING "B"(6) HOLDER, STEERING HANDLE(6-1) STUD BOLT(7) WASHER(8) NUT, 10-P1.5(9) GRIP(10) THROTTLE SHAFT(11) RUBBER, THROTTLE SHAFT(12) SPACER, THROTTLE SHAFT(13) SPRING PIN, 3-10(14) BUSHING, 8.4-10-11(15) SCREW(16) SUPPORTER, THROTTLE SHAFT(17) BOLT(18) FRICTION PIECE, GRIP(19) ADJUST SCREW(20) WASHER(21) NUT(22) THROTTLE CABLE(22) THROTTLE CABLE(23) STEERING BRACKET(24) STUD BOLT(25) WASHER(26) NYLON NUT, 8-P1.25(27) CLIP, THROTTLE CABLE(28) WASHER, 6-16-1.5(29) SCREW(30) CLAMP(31) BOLT(32) BRACKET, THROTTLE CABLE(33) BOLT(34) WASHER(35) LABEL, THROTTLE



Parts List
2003 :: 40 HP :: 2 Stroke Tohatsu M40D2 :: STEERING HANDLE (F TYPE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STEERING HANDLE 3C8S630111 3C8S63011-1 $82.87 1
(2) TILLER HANDLE BUSHING A 3C8631010M 3C8-63101-0 $5.98 1
(3) WASHER 30-45-1 3B2631080M 3B2-63108-0 $1.41 1
(4) WAVE WASHER 30-45-1.2 3B2631090M 3B2-63109-0 $4.19 1
(5) TILLER HANDLE BUSHING B 3C8631021M 3C8-63102-1 $2.56 1
(6) HOLDER STEERING HANDLE 3C8S630270 3C8S63027-0 $30.92 1
(6-1) STUD BOLT 9153131022M 915313-1022 $4.26 1
(7) WASHER 9401031000M 940103-1000 OR 940113-1000 $1.50 1
(8) NUT 9301031000M 930103-1000 $1.59 1
(9) GRIP 398630120M 398-63012-0 $29.88 1
(10) THROTTLE SHAFT 3C8630411M 3C8-63041-1 $33.06 1
(11) RUBBER THROTTLE SHAFT 345630480M 345-63048-0 $1.85 1
(12) THROTTLE SHAFT SPACER 398630530M 398-63053-0 $2.31 1
(13) SPRING PIN 3-10 9514030310M 951403-0310 $0.86 1
(14) BUSHING 8.4 -10 -11 350630460M 350-63046-0 $1.85 1
(15) SCREW 9218030525M 921803-0525 $0.92 1
(16) THROTTLE SHAFT SUPPORTER 3C8630630M 3C8-63063-0 $1.85 1
(17) BOLT 9101035612M 910103-5612 OR 910113-5612 $1.07 1
(18) GRIP FRICTION PIECE 3B2630351M 3B2-63035-1 $4.19 1
(19) ADJUSTING SCREW 3B2630340M 3B2-63034-0 $4.19 1
(20) WASHER 9401030600M 940103-0600 OR 940113-0600 $0.70 1
(21) NUT 9301030600M 930113-0600 $0.84 1
(22) THROTTLE CABLE 3C8636000M 3C8-63600-0 $21.14 2
(23) STEERING BRACKET 3C8S620012 3C8S62001-2 $45.63 1
(24) STUD BOLT 9152130845M 915213-0845 $0.00 2 Sold Out View More Details
(25) WASHER 9401030800M 940113-0800 OR 940113-0800 $0.84 2
(26) NYLON NUT 8P-1.25 9304030800M 930446-0800 $1.99 2
(27) THROTTLE CABLE CLIP 3C8636070M 3C8-63607-0 $1.18 1
(28) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 OR 3C8-66308-0 $1.59 1 Sold Out View More Details
(29) SCREW 9215130610M 921513-0610 $0.90 1
(30) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(31) BOLT 9101135612M 910113-5612 $1.07 1
(32) THROTTLE CABLE BRACKET 3C8635080M 3C8-63508-0 $4.78 1
(33) BOLT 9101140614M 910114-0614 $0.67 2
(34) WASHER 9401130600M 940113-0600 $0.83 2
(35) THROTTLE DECAL 369720191M 369-72019-1 $1.20 1
