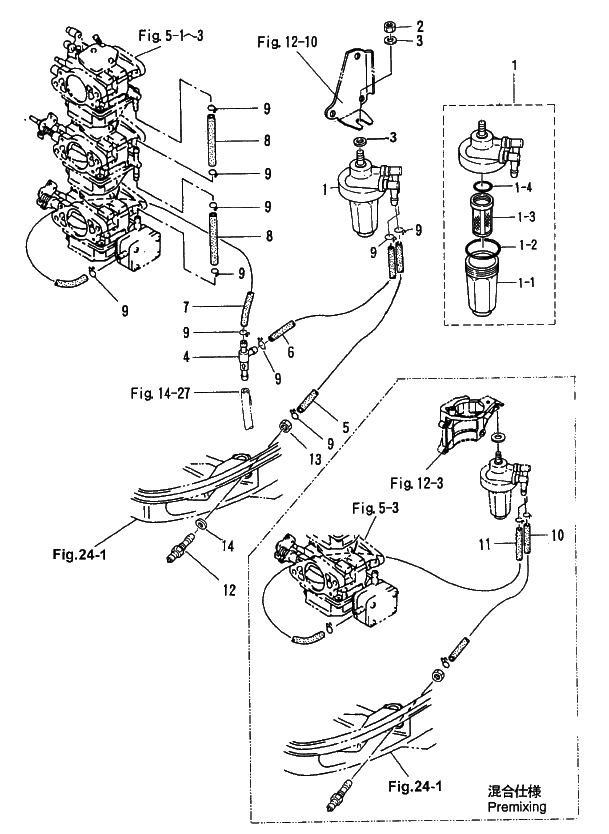

6. FUEL LINE

Click Here for Microfiche Usage Tip
(1) FUEL FILTER(1) FUEL FILTER(1-1) CAP(1-2) O-RING "A"(1-3) FILTER(1-4) O-RING "B"(2) NUT(3) WASHER(3) WASHER(4) CHECK VALVE(5) FUEL PIPE(6) FUEL PIPE(7) FUEL PIPE(8) FUEL PIPE(8) FUEL PIPE(9) CLIP, o10(9) CLIP, o10(9) CLIP, o10(9) CLIP, o10(9) CLIP, o10(9) CLIP, o10(9) CLIP, o10(9) CLIP, o10(9) CLIP, o10(9) CLIP, o10(9) CLIP, o10(9) CLIP, o10(9) CLIP, o10(9) CLIP, o10(9) CLIP, o10(9) CLIP, o10(9) CLIP, o10(9) CLIP, o10(9) CLIP, o10(9) CLIP, o10(10) FUEL PIPE(11) FUEL PIPE(12) FUEL CONNECTOR (ENGINE, MALE)(13) NUT, 10-P1.25(14) GASKET, 10.2-16-0.5



Parts List
2003 :: 40 HP :: 2 Stroke Tohatsu M40D2 :: FUEL LINE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FUEL FILTER 3B7022300M 3B7-02230-0 $27.66 1
(1-1) CUP 3B7022370M 3B7-02237-0 $7.34 1
(1-2) O-RING A 3B7022350M 3B7-02235-0 $2.56 1
(1-3) FILTER 3B7022340M 3B7-02234-0 $6.59 1
(1-4) O-RING B 3B7022360M 3B7-02236-0 $1.45 1
(2) NUT 9301060800M 930106-0800 OR 930113-0800 $1.99 1 Sold Out View More Details
(3) WASHER 9401030800M 940113-0800 OR 940113-0800 $0.84 2
(4) CHECK VALVE COMPLETE 3C8090750M 3C8-09075-0 AUTO-MIXING MODEL $29.88 1
(5) RUBBER HOSE 98AB51000M 98AB51000M AUTO-MIXING MODEL $11.41 1
(6) RUBBER HOSE 98AB51000M 98AB51000M AUTO-MIXING MODEL $11.41 1
(7) RUBBER HOSE 98AB51000M 98AB51000M AUTO-MIXING MODEL $11.41 1
(8) RUBBER HOSE 98AB51000M 98AB51000M AUTO-MIXING MODEL $11.41 2
(9) CLIP ø10 338022150M 338-02215-0 AUTO-MIXING MODEL $1.41 10
(9) CLIP ø10 338022150M 338-02215-0 PREMIXING MODEL $1.41 8
(10) RUBBER HOSE 98AB51000M 98AB51000M PREMIXING MODEL $11.41 1
(11) RUBBER HOSE 98AB51000M 98AB51000M PREMIXING MODEL $11.41 1
(12) FUEL CONNECTOR (ENGINE MALE) 3B2702601M 3B2-70260-1 $16.97 1
(13) NUT 10-P 1.25 332702610M 332-70261-0 $2.58 1
(14) GASKET 10.2-16-0.5 336701120M 336-70112-0 $1.55 1
