4. AIR SILENCER

Click Here for Microfiche Usage Tip

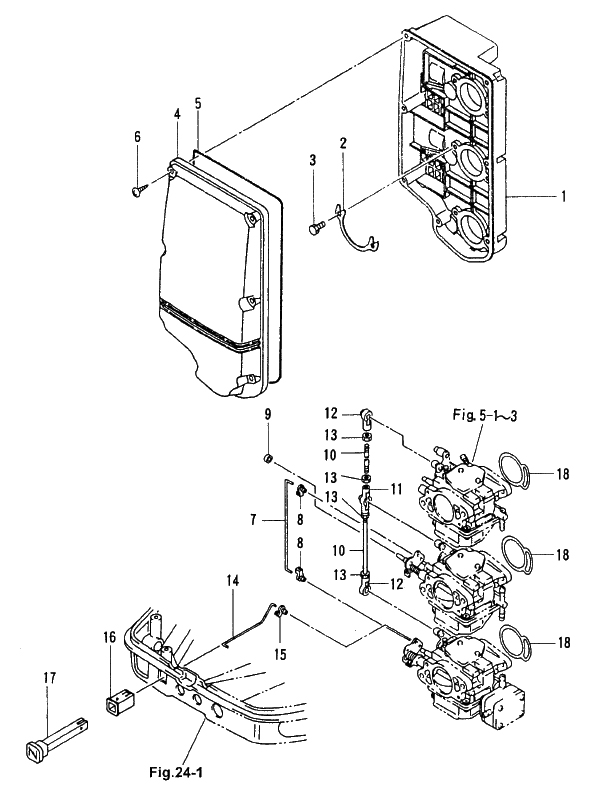

(1) AIR SILENCER(2) LOCK PLATE, AIR SILENCER(3) BOLT, 5-16 PRECOATED(4) COVER, AIR SILENCER(5) SEAL RUBBER, AIR SILENCER(6) TAPPING SCREW, 5-30(7) C-LINK, 3-90(8) ROD SNAP o 3B(8) ROD SNAP o 3B(9) STOPPER, CHOCK SOLENOID HOOK(10) LINK ROD, 5-68(10) LINK ROD, 5-68(11) CAP "B", BALL JOINT(12) CAP "C", BALL JOINT(12) CAP "C", BALL JOINT(13) NUT(13) NUT(13) NUT(14) ROD, CHOKE LINK(15) ROD SNAP o 3B(16) BUSHING, CHOKE KNOB(17) CHOKE KNOB(18) O-RING(18) O-RING(18) O-RING



Parts List
2003 :: 40 HP :: 2 Stroke Tohatsu M40D2 :: AIR SILENCER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) AIR SILENCER 3C8024110M 3C8-02411-0 $39.13 1
(2) LOCK PLATE AIR SILENCE 3C8024170M 3C8-02417-0 $4.38 3
(3) BOLT 5-16 PRE-COATED 3C8024200M 3C8-02420-0 $1.85 6
(4) COVER AIR SILENCER 3C8024150M 3C8-02415-0 $27.66 1
(5) SEAL RUBBER AIR SILENCER 3C8024180M 3C8-02418-0 $8.97 1
(6) TAPPING SCREW 5-30 3F3024230M 3F3-02423-0 $1.41 7
(7) C-LINK 3-90 3C8671910M 3C8-67191-0 $2.25 1
(8) ROD SNAP ø 3B 346671961M 346-67196-1 $2.56 2
(9) STOPPER CHOCK SOLENOID HOOK 353032710M 353-03271-0 FOR EP TYPE $6.39 1
(10) LINK ROD 5-68 348637170M 348-63717-0 $3.91 2
(11) CAP B BALL JOINT 3B7052290M 3B7-05229-0 $2.62 1
(12) BALL JOINT CONNECTOR 3B7052430M 3B7-05243-0 $2.56 2
(13) NUT 9301060500M 930106-0500 $0.86 4
(14) ROD CHOKE LINK 3C8671920M 3C8-67192-0 $4.66 1
(15) ROD SNAP ø 3B 346671961M 346-67196-1 $2.56 1
(16) BUSHING 3C8671560M 3C8-67156-0 $3.31 1
(17) CHOKE ROD 3C8671510M 3C8-67151-0 $5.75 1 Sold Out View More Details
(18) PACKING CARBURETOR 3C8020110M 3C8-02011-0 $3.00 3
