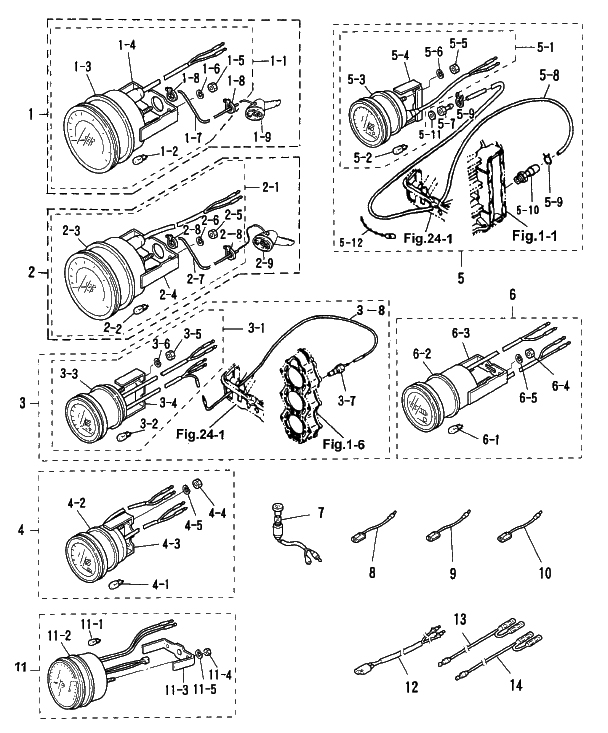

30. OPTIONAL PARTS (1)

Click Here for Microfiche Usage Tip
(1) SPEEDOMETER 75MPH KIT(1-1) SPEEDOMETER 75MPH(1-2) BULB, METER 12V-1.7W(1-3) DAMPER, METER(1-4) PLATE, FITTING(1-5) NUT(1-6) SPRING WASHER(1-7) TUBE, SPEEDOMETER(1-8) BAND, SPEEDOMETER(1-8) BAND, SPEEDOMETER(1-9) SENDER, SPEEDOMETER(2) SPEEDOMETER 50MPH KIT(2-1) SPEEDOMETER 50MPH(2-2) BULB, METER 12V-1.7W(2-3) DAMPER, METER(2-4) PLATE, FITTING(2-5) NUT(2-6) SPRING WASHER(2-7) TUBE, SPEEDOMETER(2-8) BAND, SPEEDOMETER(2-8) BAND, SPEEDOMETER(2-9) SENDER, SPEEDOMETER(3) WATER TEMPERATURE METER KIT(3-1) WATER TEMPERATURE METER(3-2) BULB, METER 12V-1.7W(3-3) DAMPER, METER(3-4) PLATE, FITTING(3-5) NUT(3-6) SPRING WASHER(3-7) SENDER, WATER TEMPERATURE(3-8) READ CABLE, WATER TEMPERATURE METER(4) VOLTMETER(4-1) BULB, METER 12V-1.7W(4-2) DAMPER, METER(4-3) PLATE, FITTING(4-4) NUT(4-5) SPRING WASHER(5) WATER PRESSURE METER KIT(5-1) WATER PRESSURE METER(5-2) BULB, METER 12V-1.7W(5-3) DAMPER, METER(5-4) PLATE, FITTING(5-5) NUT(5-6) SPRING WASHER(5-7) NIPPLE, WATER PRESSURE METER(5-8) PIPE, WATER PRESSURE METER(5-9) CLIP, o10(5-9) CLIP, o10(5-10) NIPPLE, M8-6.8(5-11) GASKET, 2-8-1(5-12) BAND, LEAD WIRE(6) HOUR-METER(6-1) BULB, METER 12V-1.7W(6-2) DAMPER, METER(6-3) PLATE, FITTING(6-4) NUT(6-5) SPRING WASHER(7) SWITCH, METER LAMP(8) ASSIST CORD, RED(9) ASSIST CORD, BLUE(10) ASSIST CORD, BLACK(11) TACHOMETER (WITHOUT OIL LAMP)(11-1) BULB, METER 12V-1.7W(11-2) DAMPER, METER(11-3) PLATE, FITTING(11-4) NUT(11-5) SPRING WASHER(12) LEAD CABLE, TACHOMETER(13) SEPARATE CORD, WHITE(14) SEPARATE CORD, YELLOW



Parts List
2003 :: 40 HP :: 2 Stroke Nissan NS40D2 :: OPTIONAL PARTS (1)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SPEEDOMETER 75MPH KIT 3E0726440M 3E0-72644-0 $0.00 1 Sold Out View More Details
(1-1) SPEEDOMETER 75MPH 3E0726490M 3E0-72649-0 $0.00 1 Sold Out View More Details
(1-2) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 $0.00 1 Sold Out View More Details
(1-3) METER DAMPER 3B7726560M 3B7-72656-0 $3.27 1
(1-4) FITTING PLATE 3B7726610M 3B7-72661-0 $25.33 1
(1-5) NUT 9302030500M 930203-0500 $0.60 2
(1-6) SPRING WASHER 9413030500M 941303-0500 $0.90 2
(1-7) SPEEDOMETER TUBE 3B7726500M 3B7-72650-0 $27.66 1 Sold Out View More Details
(1-8) SPEEDOMETER BAND 3B7726510M 3B7-72651-0 $2.07 2 Sold Out View More Details
(1-9) SPEEDOMETER SENDER 3B7726430M 3B7-72643-0 $52.86 1 Sold Out View More Details
(2) SPEEDOMETER 50MPH KIT 3E0725220M 3E0-72522-0 $0.00 1 Sold Out View More Details
(2-1) SPEEDOMETER 50MPH 3E0726480M 3E0-72648-0 $0.00 1 Sold Out View More Details
(2-2) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 $0.00 1 Sold Out View More Details
(2-3) METER DAMPER 3B7726560M 3B7-72656-0 $3.27 1
(2-4) FITTING PLATE 3B7726610M 3B7-72661-0 $25.33 1
(2-5) NUT 9302030500M 930203-0500 $0.60 2
(2-6) SPRING WASHER 9413030500M 941303-0500 $0.90 2
(2-7) SPEEDOMETER TUBE 3B7726500M 3B7-72650-0 $27.66 1 Sold Out View More Details
(2-8) SPEEDOMETER BAND 3B7726510M 3B7-72651-0 $2.07 2 Sold Out View More Details
(2-9) SPEEDOMETER SENDER 3B7726430M 3B7-72643-0 $52.86 1 Sold Out View More Details
(3) WATER TEMPERATURE METER KIT 3E0725260M 3E0-72526-0 $0.00 1 Sold Out View More Details
(3-1) WATER TEMPERATURE METER ASSY 3E0725970M 3E0-72597-0 $0.00 1 Sold Out View More Details
(3-2) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 $0.00 1 Sold Out View More Details
(3-3) METER DAMPER 3B7726550M 3B7-72655-0 $2.68 1
(3-4) FITTING PLATE 3B7726620M 3B7-72662-0 $19.58 1 Sold Out View More Details
(3-5) NUT 9302030400M 930203-0400 $0.00 2 Sold Out View More Details
(3-6) SPRING WASHER 9413030400M 941303-0400 $0.90 2
(3-7) SENDER WATER TEMPERATURE 3B7725140M 3B7-72514-0 $32.23 1
(3-8) LEAD WIRE WATER TEMPERATURE METER 3B7725180M 3B7-72518-0 $0.00 1 Sold Out View More Details
(4) VOLTMETER 3E0725290M 3E0-72529-0 $0.00 1 Sold Out View More Details
(4-1) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 $0.00 1 Sold Out View More Details
(4-2) METER DAMPER 3B7726550M 3B7-72655-0 $2.68 1
(4-3) FITTING PLATE 3B7726620M 3B7-72662-0 $19.58 1 Sold Out View More Details
(4-4) NUT 9302030400M 930203-0400 $0.00 2 Sold Out View More Details
(4-5) SPRING WASHER 9413030400M 941303-0400 $0.90 2
(5) WATER PRESSURE METER KIT 3E3725270M 3E3-72527-0 $0.00 1 Sold Out View More Details
(5-1) WATER PRESSURE METER 3E0725980M 3E0-72598-0 $0.00 1 Sold Out View More Details
(5-2) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 $0.00 1 Sold Out View More Details
(5-3) METER DAMPER 3B7726550M 3B7-72655-0 $2.68 1
(5-4) FITTING PLATE 3B7726630M 3B7-72663-0 $19.58 1 Sold Out View More Details
(5-5) NUT 9302030500M 930203-0500 $0.60 2
(5-6) SPRING WASHER 9413030500M 941303-0500 $0.90 2
(5-7) WATER PRESSURE METER NIPPLE 3B7726410M 3B7-72641-0 $0.00 1 Sold Out View More Details
(5-8) RUBBER HOSE 98AB51000M 98AB51000M $11.41 1
(5-9) CLIP ø10 338022150M 338-02215-0 $1.41 2
(5-10) NIPPLE M8-6.8 309011360M 309-01136-0 $6.90 1
(5-11) GASKET 2-8-1 121331590M 121-33159-0 $0.97 1
(5-12) LEAD WIRE BAND 336760910M 336-76091-0 $1.01 1
(6) HOURMETER 3E0725240M 3E0-72524-0 $0.00 1 Sold Out View More Details
(6-1) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 $0.00 1 Sold Out View More Details
(6-2) METER DAMPER 3B7726550M 3B7-72655-0 $2.68 1
(6-3) FITTING PLATE 3B7726640M 3B7-72664-0 $19.58 1 Sold Out View More Details
(6-4) NUT 9302030400M 930203-0400 $0.00 2 Sold Out View More Details
(6-5) SPRING WASHER 9413030400M 941303-0400 $0.90 2
(7) METER LAMP SWITCH 353725211M 353-72521-1 $19.47 1
(8) ASSIST CORD (RED) 353725460M 353-72546-0 $5.92 0
(9) ASSIST CORD (BLUE) 353725470M 353-72547-0 $5.92 0
(10) ASSIST CORD (BLACK) 353725480M 353-72548-0 $5.92 0
(11) TACHOMETER (WITHOUT OIL LAMP) 3B7725301M 3B7-72530-1 UNIQUE / FOR PREMIXING TYPE $0.00 1 Sold Out View More Details
(11-1) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR PREMIXING TYPE $0.00 1 Sold Out View More Details
(11-2) METER DAMPER 3B7726560M 3B7-72656-0 FOR PREMIXING TYPE $3.27 1
(11-3) FITTING PLATE 3B7726610M 3B7-72661-0 FOR PREMIXING TYPE $25.33 1
(11-4) NUT 9302030500M 930203-0500 FOR PREMIXING TYPE $0.60 2
(11-5) SPRING WASHER 9413030500M 941303-0500 FOR PREMIXING TYPE $0.90 2
(12) TACHOMETER LEAD CABLE 361725390M 361-72539-0 L=6000 / FOR F TYPE $50.65 1
(13) SEPARATE CORD (WHITE) 361725420M 361-72542-0 FOR F TYPE $8.17 1
(14) SEPARATE CORD (YELLOW) 361725430M 361-72543-0 FOR F TYPE $4.40 1
