28. SEPARATE FUEL TANK

Click Here for Microfiche Usage Tip

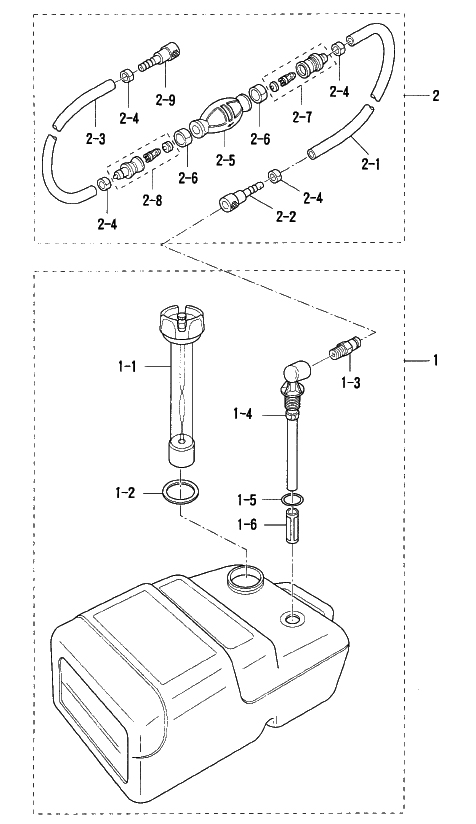

(1) FUEL TANK (25L)(1) FUEL TANK (25L)(1-1) FUEL GAUGE VENTED CAP(1-2) CAP GASKET(1-3) MALE QUICK CONNECTOR(1-4) ELBOW TUBING AND CLAMP ASSY(1-5) O-RING(1-6) FILTER(2) PRIMER BULB ASSY(2-1) FUEL PIPE(2-2) FUEL CONNECTOR (TANK SIDE, FEMALE)(2-3) FUEL PIPE(2-4) CLAMP(2-4) CLAMP(2-4) CLAMP(2-4) CLAMP(2-5) PRIMER BULB(2-6) CLAMP(2-6) CLAMP(2-7) JOINT "A" ASSY IN(2-8) JOINT "A" ASSY OUT(2-9) FUEL CONNECTOR (ENGINE SIDE, FEMALE)



Parts List
2003 :: 40 HP :: 2 Stroke Nissan NS40D2 :: SEPARATE FUEL TANK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FUEL TANK ASSY (25L) 3C7701770M 3C7-70177-0 TOHATSU $102.65 1
(1) FUEL TANK ASSY (25L) 99998FT26M 99998FT26M NISSAN $102.65 1
(1-1) FUEL GAUGE VENTED CAP ASSY 3C7700500M 3C7-70050-0 $0.00 1 Sold Out View More Details
(1-2) TANK CAP GASKET 3C7700210M 3C7-70021-0 $0.00 1 Sold Out View More Details
(1-3) MALE QUICK CONNETOR 3E0702700M 3E0-70270-0 $9.71 1
(1-4) ELBOW TUBING AND CLAMP ASSY 3C7701550M 3C7-70155-0 $13.52 1
(1-5) O-RING 3C7701990M 3C7-70199-0 $1.24 1
(1-6) FILTER 3C7701130M 3C7-70113-0 $3.20 1
(2) PRIMER BULB ASSY 3B7702003M 3B7-70200-3 $125.87 1
(2-1) RUBBER HOSE 98AB71600M 98AB-7-1600 $13.44 1
(2-2) FUEL CONNECTOR (TANK SIDE FEMALE) 3B2702810M 3B2-70281-0 $21.33 1
(2-3) RUBBER HOSE 98AB70700M 98AB-7-0700 $13.44 1
(2-4) CLAMP 332702010M 332-70201-0 $2.07 4
(2-5) PRIMER BULB 3C7702110M 3C7-70211-0 $22.31 1
(2-6) CLAMP 3C7702170M 3C7-70217-0 $3.27 2
(2-7) JOINT A ASSY IN 3C7702201M 3C7-70220-1 $8.52 1
(2-8) JOINT A ASSY OUT 3C7702241M 3C7-70224-1 $8.77 1
(2-9) FUEL CONNECTOR (ENGINE SIDE FEMALE) 3B2702501M 3B2-70250-1 $21.46 1
