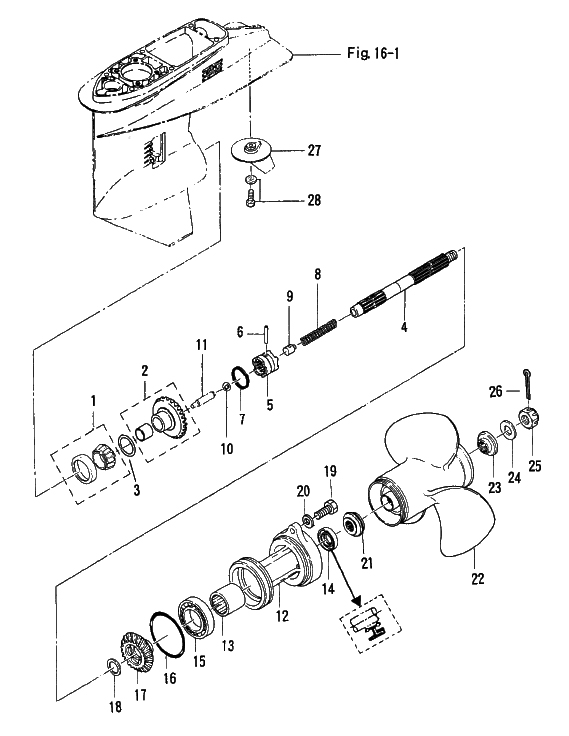

17. GEAR CASE (PROPELLER SHAFT)

Click Here for Microfiche Usage Tip
(1) BEARING, 32007(2) BEVEL GEAR "A"(3) SHIM, 36-44-0.3(3) SHIM, 36-44-0.15(3) SHIM, 36-44-0.1(4) PROPELLER SHAFT(5) CLUTCH(6) CLUTCH PIN(7) SNAP, CLUTCH PIN(8) SPRING, CLUTCH(9) SPRING HOLDER, CLUTCH(10) STEEL BALL, 3/8(11) PUSH ROD, CLUTCH(12) HOUSINCL, PROPELLER SHAFT(13) NEEDLE BEARING, 22-30-30(14) OIL SEAL, 22-36-10(15) BALL BEARING, 6007(16) O-RING, 3.53-69.44(17) BEVEL GEAR "C"(18) WASHER, 22.1-28-3(19) BOLT, 6-25 PRECOATED(20) WASHER(21) THRUST HOLDER, PROPELLER(22) PROPELLER 7 ( 4X11.4X7.1)(22) PROPELLER CS 9 (3X12.1 X9.0)(22) PROPELLER CS 11 (3X11.6X11.0)(22) PROPELLER CS 12 (3X11.4X12.0)(22) PROPELLER CS 13 ( 3X11.1 X 13.0)(22) PROPELLER CS 14 ( 3X11.1X14.0)(22) PROPELLER CS 15 ( 3X11.0X15.0)(23) PROPELLER STOPPER(24) WASHER, 12.5-32-2.5(25) NUT, PROPELLER(26) SPLIT PIN, 3-25(27) TRIM TAB(28) BOLT



Parts List
2003 :: 40 HP :: 2 Stroke Nissan NS40D2 :: GEAR CASE (PROPELLER SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TAPER ROLLER BEARING 32007 345602150M 345-60215-0 $50.65 1
(2) BEVEL GEAR A 3C8640101M 3C8-64010-1 $143.15 1
(3) SHIM 36-44-0.3 353640360M 353-64036-0 $1.56 0
(3) SHIM 36-44-0.15 353640370M 353-64037-0 $1.56 0
(3) SHIM 36-44-0.1 353640380M 353-64038-0 $1.79 0
(4) PROPELLER SHAFT 3C8642110M 3C8-64211-0 $220.25 1
(5) CLUTCH 3C8642152M 3C8-64215-2 #037940XC~ $74.89 1
(6) CLUTCH PIN 3C8642170M 3C8-64217-0 $3.04 1 Sold Out View More Details
(7) CLUTCH PIN SNAP 3C8642191M 3C8-64219-1 $1.61 1
(8) CLUTCH SPRING 3C8642210M 3C8-64221-0 50D # 52260~ / 40D # 35242~ $1.85 1
(9) CLUTCH SPRING RETAINER 3C8642220M 3C8-64222-0 50D # 52260~ / 40D # 35242~ $10.81 1
(10) STEEL BALL 318 9650020803M 965002-0803 50D # 52260~ / 40D # 35242~ $1.13 1
(11) PUSH ROD CLUTCH 3C8642231M 3C8-64223-1 50D # 52260~ / 40D # 35242~ $11.02 1
(12) HOUSINCL PROPELLER SHAFT 3C8S601010 3C8S60101-0 $70.66 1
(13) NEEDLE BEARING 22-30-30 345602110M 345-60211-0 $33.06 1 Sold Out View More Details
(14) OIL SEAL 22-36-10 334602230M 334-60223-0 $9.46 1
(15) BEARING 6007 960106007M 9601-0-6007 $17.62 1
(16) O-RING 3.53-69.44 345601030M 345-60103-0 $4.38 1
(17) BEVEL GEAR C 3C8640300M 3C8-64030-0 $134.35 1
(18) WASHER 22.1-28-3 345640320M 345-64032-0 $5.07 1
(19) BOLT 6-25 PRE-COATED 3C8601080M 3C8-60108-0 50D # 52569~ / 40D # 35343~ $2.62 2
(20) WASHER 9401130600M 940113-0600 50D # 52569~ / 40D # 35343~ $0.83 2
(21) THRUST HOLDER 3C8642310M 3C8-64231-0 $50.42 1
(22) PROPELLER 7 ( 4X11.4X7.1) 348641080M 348-64108-0 $169.01 1
(22) PROPELLER CS 9 (3 X 12.1 X 9.0) 3T5645180M 3T5-64518-0 $131.96 1
(22) PROPELLER CS 11 (3 X 11.6 X 11.0) 3T5645230M 3T5-64523-0 $131.96 1
(22) PROPELLER CS 12 (3 X 11.4 X 12.0) 3T5645250M 3T5-64525-0 $131.96 1
(22) PROPELLER CS 13 (3 X 11.1 X 13.0) 3T5645270M 3T5-64527-0 $131.96 1
(22) PROPELLER CS 14 (3 X 11.1 X 14.0) 3T5645290M 3T5-64529-0 $131.96 1
(22) PROPELLER CS 15 (3 X 11.0 X 15.0) 3T5645320M 3T5-64532-0 $131.96 1
(23) PROPELLER STOPPER 348642320M 348-64232-0 $19.84 1
(24) WASHER 17-32-3 345641240M 345-64124-0 $3.39 1
(25) PROPELLER NUT 353641210M 353-64121-0 $15.44 1
(26) SPLIT PIN 3-25 9515030325M 951503-0325 $0.86 1
(27) TRIM TAB 3C8602171M 3C8-60217-1 $13.60 1
(28) BOLT 9101035620M 910103-5620 OR 910113-5620 $1.30 1
