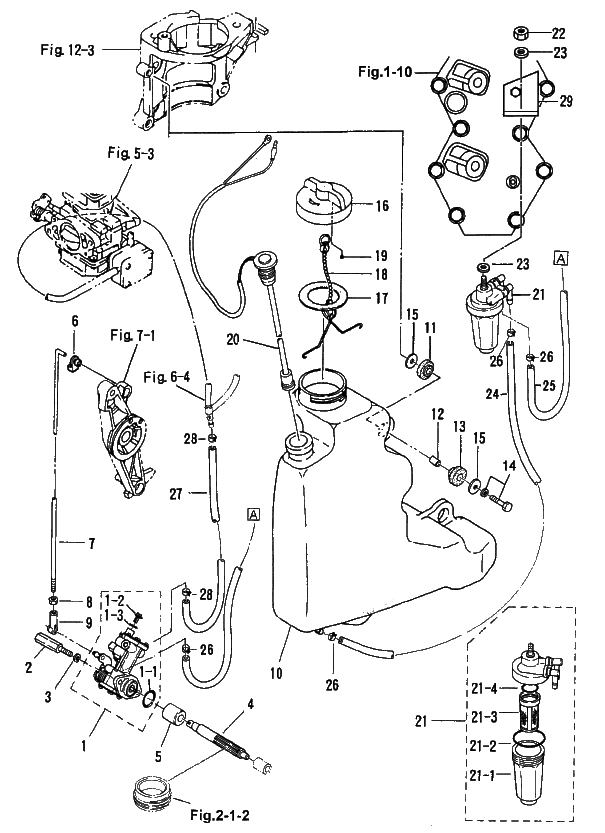

14. OIL PUMP (AUTO MIXING)

Click Here for Microfiche Usage Tip
(1) OIL PUMP(1-1) O-RING, 1.6-19.2(1-2) BOLT, AIR VENT(1-3) WASHER(2) BOLT, OIL PUMP(3) SPRING WASHER(4) DRIVEN GEAR, OIL PUMP(5) BUSHING, 9-20-20.8(6) ROD SNAP, 5-3(7) LINK ROD, OIL PUMP(8) NUT(9) CAP "C", BALL JOINT(10) OIL TANK(11) MOUNT RUBBER, 8.5-14-2.5(12) SPACER, 6.2-9-15.7(13) MOUNT RUBBER, 8.5-14-2.5(14) BOLT(15) WASHER, 6.5-21-1(15) WASHER, 6.5-21-1(16) CAP, OIL TANK(17) GASKET, 36-52-2(18) HOOK, TANK CAP(19) CHECK VALVE, TANK CAP(20) OIL LEVEL SENSOR(21) OIL FILTER(21) OIL FILTER(21-1) CAP(21-2) O-RING "A"(21-3) FILTER(21-4) O-RING "B"(22) NUT(23) WASHER(23) WASHER(24) OIL PIPE(25) OIL PIPE(26) CLIP, o9.5(26) CLIP, o9.5(26) CLIP, o9.5(26) CLIP, o9.5(27) OIL PIPE(28) CLIP, o8.5(28) CLIP, o8.5(29) PLATE, OIL FILTER



Parts List
2003 :: 40 HP :: 2 Stroke Nissan NS40D2 :: OIL PUMP (AUTO MIXING)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) OIL PUMP 3C8090001M 3C8-09000-1 $242.28 1
(1-1) O-RING 1.6-19.2 3B7090020M 3B7-09002-0 $3.97 1
(1-2) AIR VENT BOLT 3B7090040M 3B7-09004-0 $6.90 1
(1-3) WASHER 3B7090060M 3B7-09006-0 $0.99 1
(2) OIL PUMP BOLT 3C8090500M 3C8-09050-0 $0.00 2 Sold Out View More Details
(3) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(4) OIL PUMP DRIVEN GEAR 3C8090650M 3C8-09065-0 $69.03 1
(5) BUSHING 9-20-20.8 3C8090690M 3C8-09069-0 $23.01 1
(6) ROD SNAP 5-3 3C8637330M 3C8-63733-0 $1.45 1
(7) OIL PUMP LINK ROD 3C8090530M 3C8-09053-0 $6.47 1 Sold Out View More Details
(8) NUT 9301060500M 930106-0500 OR 930103-0500 $0.86 1
(9) BALL JOINT CONNECTOR 3B7052430M 3B7-05243-0 $2.56 1
(10) OIL TANK 3C8710100M 3C8-71010-0 $60.36 1
(11) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 3
(12) SPACER 6.2-9-15.7 346671140M 346-67114-0 $1.76 3
(13) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 3
(14) BOLT 9101036630M 910103-6630 $1.30 3
(15) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 6
(16) OIL TANK CAP 3C8710150M 3C8-71015-0 $10.12 1
(17) GASKET 36-52-2 3C8710160M 3C8-71016-0 $2.56 1
(18) HOOK TANK CAP 3C8760170M 3C8-76017-0 $0.00 1 Sold Out View More Details
(19) TANK CAP CHECK VALVE 3C8710180M 3C8-71018-0 $8.52 1
(20) OIL LEVEL SENSOR 3C8710200M 3C8-71020-0 $52.85 1
(21) OIL FILTER 3C7710300M 3C7-71030-0 $51.01 1
(21-1) CUP 3B7022370M 3B7-02237-0 $7.34 1
(21-2) O-RING A 3B7022350M 3B7-02235-0 $2.56 1
(21-3) FILTER 3C7710330M 3C7-71033-0 $12.70 1
(21-4) O-RING B 3B7022360M 3B7-02236-0 $1.45 1
(22) NUT 9301060800M 930106-0800 OR 930113-0800 $1.99 1 Sold Out View More Details
(23) WASHER 9401030800M 940113-0800 OR 940113-0800 $0.84 2
(24) OIL PIPE 99AA60700M 99AA-6-0700 50D2 # 62305~ / 40D2 # 46451~ $12.80 1
(25) OIL PIPE 99AA60400M 99AA-6-0400 50D2 # 62305~ / 40D2 # 46451~ $12.80 1
(26) CLIP ø9.5 3B7090540M 3B7-09054-0 $1.30 4
(27) OIL PIPE 99AA40230M 99AA-4-0230 $11.51 1 Sold Out View More Details
(28) CLIP ø8.5 3C7090560M 3C7-09056-0 $1.41 2
(29) PLATE OIL FILTER 3E3710350M 3E3-71035-0 50D2 # 62305~ / 40D2 # 46451~ $4.43 1 Sold Out View More Details
