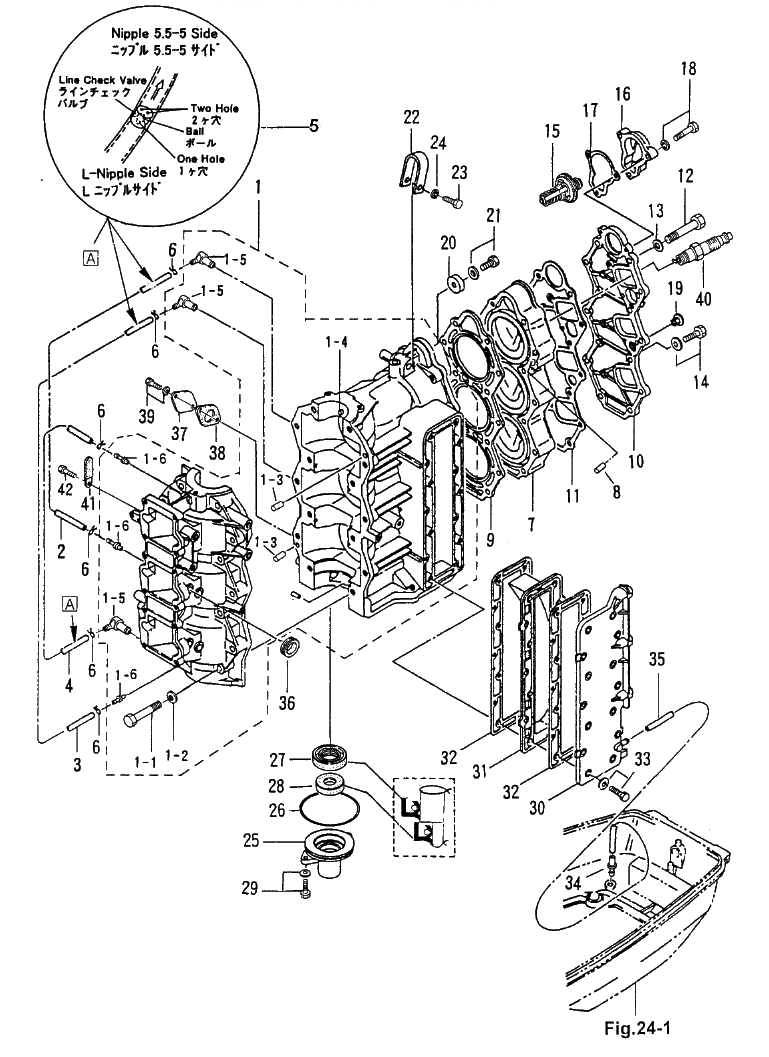

1. CYLINDER - CRANK CASE

Click Here for Microfiche Usage Tip
(1) CYLINDER, CRANK CASE(1-1) BOLT(1-2) WASHER(1-3) KNOCK, 6-12(1-3) KNOCK, 6-12(1-4) KNOCK, MAIN BEARING(1-5) L-NIPPLE (NEW)(1-5) L-NIPPLE (NEW)(1-5) L-NIPPLE (NEW)(1-5) CHECK VALVE NIPPLE (OLD)(1-5) CHECK VALVE NIPPLE (OLD)(1-5) CHECK VALVE NIPPLE (OLD)(1-6) NIPPLE, 5.5-5(1-6) NIPPLE, 5.5-5(1-6) NIPPLE, 5.5-5(2) LUBRICATION PIPE(3) LUBRICATION PIPE(4) LUBRICATION PIPE(5) LINE CHECK VALVE(6) CLIP, o8(6) CLIP, o8(6) CLIP, o8(6) CLIP, o8(6) CLIP, o8(6) CLIP, o8(7) CYLINDER HEAD(8) KNOCK, 6-12(9) GASKET, CYLINDER HEAD(10) COVER, CYLINDER HEAD(11) GASKET, CYLINDER HEAD COVER(12) BOLT(13) WASHER, 8.5-19.5-3.2(14) BOLT(15) THERMOSTAT(16) CAP, THERMOSTAT(17) GASKET, THERMOSTAT CAP(18) BOLT(19) PLUG(20) ANODE(21) BOLT(22) HANGER(23) BOLT(24) WASHER(25) LOWER HEAD, CRANK CASE(26) O-RING, 1.7-59(27) OIL SEAL, 25-40-8(28) OIL SEAL, 16-28-7(29) BOLT(30) EXHAUST COVER, OUTER(31) EXHAUST COVER, INNER(32) GASKET, EXHAUST COVER(32) GASKET, EXHAUST COVER(33) BOLT(34) WATER NIPPLE(35) PIPE, WATER NIPPLE(36) GROMMET, 25-5(37) BLIND PLATE(38) GASKET, BLIND PLATE(39) BOLT(40) SPARK PLUG(40) SPARK PLUG (WITH RESISTANCE)(41) CLAMP, 6.5-47.5P(42) BOLT



Parts List
2003 :: 40 HP :: 2 Stroke Nissan NS40D2 :: CYLINDER - CRANK CASE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYLINDER CRANK CASE 3C8B011002 3C8B01100-2 40D2 #47846~ $1,865.08 1
(1-1) BOLT 9161240845M 916124-0845 $1.48 14
(1-2) WASHER 9401210800M 940121-0800 $0.37 14
(1-3) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(1-4) MAIN BEARING DOWEL PIN 345001170M 345-00117-0 $3.04 1
(1-5) L-NIPPLE (NEW) 393011370M 393-01137-0 50D2 # 63492~ / 40D2 # 47846~ $4.31 3
(1-5) CHECK VALVE NIPPLE (OLD) 3B2011600M 3B2-01160-0 50D2 ~#63491 / 40D2 ~#47845 $0.00 3 Sold Out View More Details
(1-5) L-NIPPLE (NEW) 393011370M 393-01137-0 50D2 # 63492~ / 40D2 # 47846~ $4.31 3
(1-5) CHECK VALVE NIPPLE (OLD) 3B2011600M 3B2-01160-0 50D2 ~#63491 / 40D2 ~#47845 $0.00 3 Sold Out View More Details
(1-6) NIPPLE 5.5-5 393011310M 393-01131-0 50D2 # 63492~ / 40D2 # 47846~ $3.00 3
(2) LUBRICATION PIPE D 98AL41000M 98AL41000M 50D2 # 63492~ / 40D2 # 47846~ $8.81 1
(3) LUBRICATION PIPE D 98AL41000M 98AL41000M 50D2 # 63492~ / 40D2 # 47846~ $8.81 1
(4) LUBRICATION PIPE D 98AL41000M 98AL41000M 50D2 # 63492~ / 40D2 # 47846~ $8.81 1
(5) LINE CHECK VALVE 393011600M 393-01160-0 50D2 # 63492~ / 40D2 # 47846~ $4.31 3
(6) CLIP ø 8 3T5011330M 3T5-01133-0 50D2 # 63492~ / 40D2 # 47846~ $1.44 6
(7) CYLINDER HEAD 3C8B010012 3C8B01001-2 50D2 # 63492~ / 40D2 # 47846~ $144.72 1 Sold Out View More Details
(8) DOWEL PIN 6-12 345011110M 345-01111-0 50D2 # 63492~ / 40D2 # 47846~ $1.30 2
(9) GASKET CYLINDER HEAD 3C8010054M 3C8-01005-4 50D2 # 63492~ / 40D2 # 47846~ $50.65 1
(10) COVER CYLINDER HEAD 3C8B010210 3C8B01021-0 50D2 # 63492~ / 40D2 # 47846~ $82.87 1
(11) GASKET CYLINDER HEAD COVER 3C8010241M 3C8-01024-1 50D2 # 63492~ / 40D2 # 47846~ $14.78 1
(12) BOLT 9161890865M 916189-0865 $2.19 14
(13) WASHER 8.5-19.5-3.2 345010150M 345-01015-0 $1.41 14
(14) BOLT 9101215620M 910121-5620 $0.60 4
(15) THERMOSTAT 353010300M 353-01030-0 $50.61 1 Sold Out View More Details
(16) CAP THERMOSTAT 353B010310 353B01031-0 $22.31 1
(17) GASKET THERMOSTAT CAP 353010320M 353-01032-0 $4.29 1 Sold Out View More Details
(18) BOLT 9101135625M 910113-5625 $1.47 3
(19) PLUG 3B7010460M 3B7-01046-0 $1.41 1
(20) ANODE 338602182M 338-60218-2 $9.20 1
(21) BOLT 9101135620M 910113-5620 $1.30 1
(22) HANGER 3C8B015130 3C8B01513-0 $5.69 1 Sold Out View More Details
(23) BOLT 9101140835M 910114-0835 $1.50 1
(24) WASHER 9401210800M 940121-0800 OR 940113-0800 $0.37 1
(25) CRANK CASE HEAD 3C8012910M 3C8-01291-0 $32.23 1
(26) O-RING 1.7-59 346012160M 346-01216-0 $2.07 1
(27) OIL SEAL 25-40-8 334001220M 334-00122-0 $7.59 1
(28) OIL SEAL 16-28-7 3C8012150M 3C8-01215-0 $5.55 1
(29) BOLT 9101135620M 910113-5620 $1.30 2
(30) EXHAUST COVER OUTER 3C8B023010 3C8B02301-0 $59.83 1
(31) EXHAUST COVER (INNER) 3C8023020M 3C8-02302-0 $50.61 1
(32) GASKET EXHAUST COVER 3C8023050M 3C8-02305-0 $9.60 2
(33) BOLT 9101145625M 910114-5625 $1.04 14
(34) WATER NIPPLE 353011380M 353-01138-0 $2.21 1
(35) RUBBER HOSE 98AB50260M 98AB-5-0260 $11.41 1
(36) GROMMET 25-5 3B7760930M 3B7-76093-0 FOR E TYPE $2.19 1
(37) BLIND PLATE 3C8090811M 3C8-09081-1 PREMIXING MODEL $3.25 1
(38) GASKET BLIND PLATE 3C8090820M 3C8-09082-0 PREMIXING MODEL $3.85 1
(39) BOLT 9101036616M 910103-6616 PREMIXING MODEL $1.20 2
(40) SPARK PLUG ( WITH RESISTANCE) 970101005M 970101005M NGK B7HS-10 $4.64 3
(40) SPARK PLUG ( WITH RESISTANCE) 970101005M 970101005M NGK BR7HS-10 $4.64 3
(41) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(42) BOLT 9101130610M 910113-0610 $0.76 1
