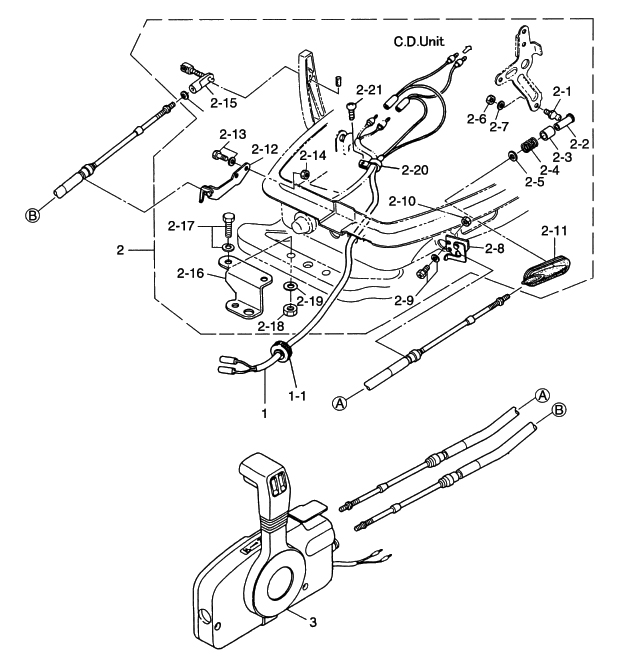

18. OPTIONAL PARTS (I) - REMOTE CONTROL

Click Here for Microfiche Usage Tip
(1) R.C. STOP CORD 3.9M (12.8FEET)(1) R.C. STOP CORD 5.9M (19.4FEET)(1-1) GROMMET, STOP CORD(2) REMOTE CONTROL FITTING PARTS(2-1) BALL JOINT(2-2) BALL HOLDER(2-3) HOLDER CAP(2-4) CAP SPRING(2-5) WASHER, 5.5-14-1.2(2-6) NUT(2-7) SPRING WASHER(2-8) CABLE CLIP(2-9) BOLT(2-10) NUT(2-11) GROMMET, THROTTLE CABLE(2-12) CLIP, CLUTCH CABLE(2-13) BOLT(2-14) NUT(2-15) SLEEVE "B" GUIDE ASSY(2-16) STEERING HOOK PLATE(2-17) BOLT(2-18) NUT(2-19) WASHER(2-20) CLAMP, 6-9.5L(2-21) SCREW(3) REMOTE CONTROL BOX (RC5D)(3) REMOTE CONTROL BOX (RC5C)(3) REMOTE CONTROL BOX (RC5D)(3) REMOTE CONTROL BOX (RC5C)



Parts List
2003 :: 30 HP :: 2 Stroke Tohatsu M30A4 :: OPTIONAL PARTS (I) - REMOTE CONTROL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) R.C. STOP CORD 3.9M (12.8FEET) 361838530M 361-83853-0 $71.35 1 Sold Out View More Details
(1) R.C. STOP CORD 5.9M (19.4FEET) 361838580M 361-83858-0 $85.17 1
(1-1) GROMMET 22-2.5 345760230M 345-76023-0 $4.38 1
(2) REMOTE CONTROL FITTING PARTS 3A1838801M 3A1-83880-1 $187.23 1
(2-1) BALL JOINT 345837210M 345-83721-0 $9.46 1
(2-2) BALL JOINT HOLDER 3A1837220M 3A1-83722-0 $10.59 1
(2-3) HOLDER CAP 332837230M 332-83723-0 $8.63 1
(2-4) CAP SPRING 332837240M 332-83724-0 $1.41 1
(2-5) WASHER 5.5-14-1.2 332837250M 332-83725-0 $0.97 2
(2-6) NUT 9301030600M 930113-0600 OR 930113-0600 $0.84 1
(2-7) SPRING WASHER 9413030600M 941303-0600 $0.84 1
(2-8) CABLE CLIP 345838200M 345-83820-0 $25.33 1
(2-9) BOLT 9104036518M 910403-6518 $0.00 2 Sold Out View More Details
(2-10) NUT 9301030500M 930103-0500 $0.86 2
(2-11) GROMMET THROTTLE CABLE 346837320M 346-83732-0 $15.46 1
(2-12) CLIP CLUTCH CABLE 346838700M 346-83870-0 $34.51 1
(2-13) BOLT 9101036620M 910103-6620 $1.13 2
(2-14) NUT 9301030600M 930113-0600 OR 930113-0600 $0.84 2
(2-15) SLEEVE B GUIDE ASSY 3A1837101M 3A1-83710-1 $13.87 1
(2-16) STEERING HOOK PLATE 346848301M 346-84830-1 $26.40 1
(2-17) BOLT 9101036830M 910103-6830 OR 910113-0830 $1.76 2
(2-18) NUT 9301030800M 930103-0800 OR 930113-0800 $1.99 2
(2-19) WASHER 9401030800M 940113-0800 OR 940113-0800 $0.84 2
(2-20) CLAMP 6 - 9.5L 336069730M 336-06973-0 $1.41 1
(2-21) SCREW 9215030612M 921513-0612 OR 921513-0612 $0.93 1
(3) SINGLE REMOTE CONTROL BOX ASSY (RC5D) 3B7843600M 3B7-84360-0 FOR MF/EF TYPE / TOHATSU $310.10 1
(3) REMOTE CONTROL BOX (RC5C) 3B7843501M 3B7-84350-1 FOR EP TYPE / TOHATSU $301.73 1
(3) SINGLE REMOTE CONTROL BOX ASSY (RC5D) 373843602M 373-84360-2 FOR MF/EF TYPE / NISSAN $0.00 1 Sold Out View More Details
(3) REMOTE CONTROL BOX (RC5C) 383843502M 383-84350-2 FOR EP TYPE / NISSAN $301.73 1
