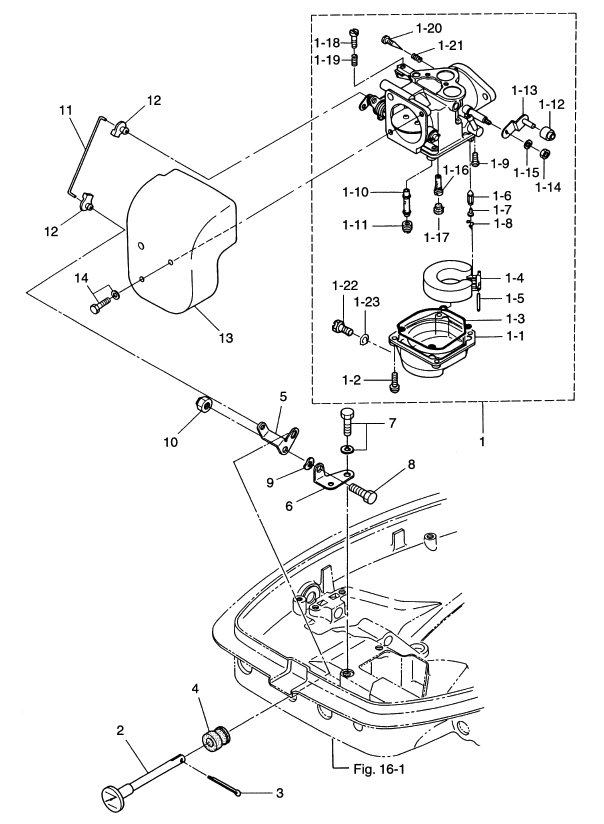

4. CARBURETOR

Click Here for Microfiche Usage Tip
(1) CARBURETOR B03E(1-1) FLOAT CHAMBER(1-2) SCREW(1-3) O-RING, FLOAT CHAMBER(1-4) FLOAT(1-5) ARM PIN, FLOAT(1-6) FLOAT VALVE(1-7) VALVE PIN(1-8) CLIP(1-9) SCREW(1-10) MAIN NOZZLE # 100(1-11) MAIN JET # 155(1-12) COLLAR(1-13) THROTTLE LEVER(1-14) NUT(1-15) SPRING WASHER(1-16) SLOW JET # 85(1-17) RUBBER CAP(1-18) STOP SCREW(1-19) SPRING "A"(1-20) ADJUST SCREW(1-21) SPRING "B"(1-22) DRAIN SCREW(1-23) O-RING(2) CHOKE ROD(3) SPLIT PIN, 2-12(4) BUSHING, CHOKE ROD(5) CHOKE LEVER(6) BRACKET, CHOKE LEVER(7) BOLT(8) BOLT(9) WAVE WASHER, D=6(10) NYLON NUT, 6P-1.0(11) ROD, CHOKE LINK(12) ROD SNAP, o3-B(12) ROD SNAP, o3-B(13) AIR SILENCER(14) BOLT



Parts List
2003 :: 30 HP :: 2 Stroke Tohatsu M30A4 :: CARBURETOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CARBURETOR B03E 3P0032000M 3P0-03200-0 30A4 #35175~ / 25C3 #50039~ $248.70 1
(1-1) FLOAT CHAMBER 353032210M 353-03221-0 $0.00 1 Sold Out View More Details
(1-2) SCREW 9225036414M 922503-6414 $1.36 4
(1-3) O-RING FLOAT CHAMBER 346032220M 346-03222-0 $7.00 1
(1-4) FLOAT 346032310M 346-03231-0 $24.62 1
(1-5) ARM PIN FLOAT HINGE 346032320M 346-03232-0 $2.48 1
(1-6) FLOAT VALVE 3B7032400M 3B7-03240-0 $11.79 1
(1-7) VALVE PIN 334032420M 334-03242-0 $1.71 1
(1-8) CLIP 344032440M 344-03244-0 $3.75 1
(1-9) SCREW 3F3032340M 3F3-03234-0 $1.30 1
(1-10) MAIN NOZZLE # 100 3A1032520M 3A1-03252-0 30A4 #21031~ / 25C3 #27906~ $19.95 1
(1-11) MAIN JET # 155 3A1032510M 3A1-03251-0 30A4 #21031~ / 25C3 #27906~ $6.86 1
(1-12) COLLAR 346032640M 346-03264-0 $4.70 1
(1-13) THROTTLE LEVER 346032720M 346-03272-0 $11.79 1
(1-14) NUT 9301310500M 930131-0500 $0.92 1
(1-15) SPRING WASHER 9413320500M 941332-0500 $0.87 1
(1-16) SLOW JET # 85 3A1032760M 3A1-03276-0 30A4 #21031~ / 25C3 #27906~ $12.63 1
(1-17) RUBBER CAP 346032560M 346-03256-0 $2.40 1
(1-18) STOP SCREW 346032650M 346-03265-0 $4.86 1
(1-19) SPRING A 346032670M 346-03267-0 $2.24 1
(1-20) ADJUST SCREW 346032660M 346-03266-0 $8.12 1
(1-21) SPRING B 346032680M 346-03268-0 $1.55 1
(1-22) DRAIN SCREW 345032920M 345-03292-0 $4.19 1 Sold Out View More Details
(1-23) O-RING 336032930M 336-03293-0 $1.91 1
(2) CHOKE ROD 346671510M 346-67151-0 $6.39 1
(3) SPLIT PIN 2-12 9515030212M 951503-0212 $1.02 1
(4) BUSHING CHOKE ROD 346671040M 346-67104-0 $2.14 1
(5) CHOKE LEVER 346671520M 346-67152-0 $3.29 1
(6) BRACKET CHOKE LEVER 346671530M 346-67153-0 $0.00 1 Sold Out View More Details
(7) BOLT 9101036612M 910103-6612 $1.24 2
(8) BOLT 9101030614M 910103-0614 $0.83 1
(9) WAVE WASHER D=6 9414030600M 941403-0600 $0.56 1
(10) NYLON NUT 6P-1.0 9304060600M 930406-0600 $2.40 1
(11) ROD CHOKE LINK 346671910M 346-67191-0 $2.76 1
(12) ROD SNAP ø 3B 346671961M 346-67196-1 $2.74 2
(13) AIR SILENCER 346024111M 346-02411-1 30A4 # 35175~ / 25C3 # 50039~ $21.22 1
(14) BOLT 9101215614M 910121-5614 $0.86 2
