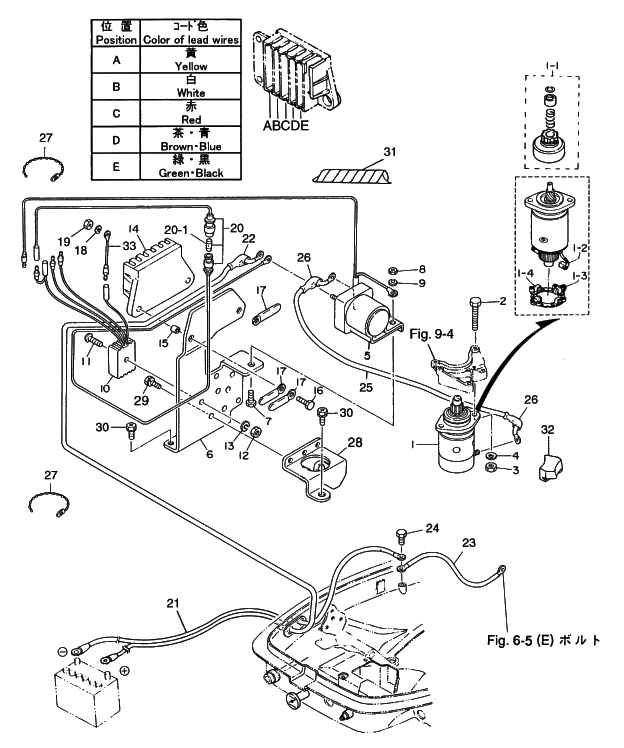

19. OPTIONAL PARTS (II) - ELECTRIC STARTER (COMMON USE FOR P & F TYPES)

Click Here for Microfiche Usage Tip
(1) STARTER MOTOR(1-1) PINION(1-2) CARBON BRUSH (+)(1-3) CARBON BRUSH (-)(1-4) BRUSH HOLDER(2) BOLT(3) NUT(4) SPRING WASHER(5) STARTER SOLENOID(6) BRACKET, STARTER SOLENOID(7) BOLT(8) NUT(9) SPRING WASHER(10) RECTIFIER(11) SCREW(12) NUT(13) SPRING WASHER(14) HOLDER, CABLE TERMINAL(15) COLLAR, 6.4-10-4.7(16) BOLT(17) CLAMP, 6.5-47.5P(17) CLAMP, 6.5-47.5P(17) CLAMP, 6.5-47.5P(18) SPRING WASHER(19) NUT(20) FUSE WIRE(20-1) FUSE (15A)(21) BATTERY CORD(22) CAP, CORD(23) GROUND CABLE(24) BOLT(25) STARTER CORD(26) CAP, CORD(26) CAP, CORD(27) BAND, LEAD WIRE(27) BAND, LEAD WIRE(28) BRACKET, NEUTRAL SWITCH(29) BOLT(30) BOLT(30) BOLT(31) COIL TUBE(32) RUBBER, STARTER MOTOR(33) GROUND CABLE



Parts List
2003 :: 30 HP :: 2 Stroke Nissan NS30A4 :: OPTIONAL PARTS (II) - ELECTRIC STARTER (COMMON USE FOR P & F TYPES)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STARTER MOTOR 346760100M 346-76010-0 $422.61 1
(1-1) PINION 346760150M 346-76015-0 $159.48 1
(1-2) CARBON BRUSH (+) 346760120M 346-76012-0 $0.00 2 Sold Out View More Details
(1-3) CARBON BRUSH (-) 346760130M 346-76013-0 $16.24 1
(1-4) BRUSH HOLDER 346760140M 346-76014-0 $55.20 1
(2) BOLT 9161030835M 916103-0835 OR 916113-0835 $2.01 2
(3) NUT 9301030800M 930103-0800 OR 930113-0800 $1.99 2
(4) SPRING WASHER 9413030800M 941303-0800 $0.79 2
(5) STARTER SOLENOID 346760400M 346-76040-0 $77.11 1
(6) BRACKET STARTER SOLENOID 346760431M 346-76043-1 $19.84 1
(7) BOLT 9101030616M 910113-0616 OR 910113-0616 $0.98 1
(8) NUT 9301030600M 930113-0600 OR 930113-0600 $0.84 1
(9) SPRING WASHER 9413030600M 941303-0600 $0.84 1
(10) RECTIFIER 3G2760600M 3G2-76060-0 30A4 # 35175~ / 25C3 # 50039~ $66.10 1
(11) SCREW 9215030525M 921503-0525 $0.90 1
(12) NUT 9301030500M 930103-0500 $0.86 1
(13) SPRING WASHER 9413030500M 941303-0500 $0.90 1
(14) HOLDER CABLE TERMINAL 353062810M 353-06281-0 $8.29 1
(15) COLLAR 6.4-10-4.7 353062830M 353-06283-0 $4.03 2
(16) BOLT 9101030620M 910103-0620 OR 910113-0620 $1.04 2
(17) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 3
(18) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(19) NUT 9301030600M 930113-0600 OR 930113-0600 $0.84 1
(20) FUSE WIRE 3B2760620M 3B2-76062-0 L=355 $14.70 1
(20-1) FUSE (15A) 346762120M 346-76212-0 $4.26 1
(21) BATTERY CABLE (L=2000) 3B2761200M 3B2-76120-0 L=2000 $61.59 1
(22) CAP CORD 3B7761450M 3B7-76145-0 $3.39 1
(23) STARTER CORD 334761410M 334-76141-0 L=150 $14.31 1
(24) BOLT 9101030612M 910113-0612 OR 910113-0612 $0.84 1
(25) STARTER CABLE 3B2761471M 3B2-76147-1 L=200 $16.50 1
(26) CAP CORD 3A3761450M 3A3-76145-0 $3.39 2
(27) LEAD WIRE BAND 336760910M 336-76091-0 $1.01 3
(28) BRACKET NEUTRAL SWITCH 346760810M 346-76081-0 $12.61 1
(29) BOLT 9104036508M 910403-6508 $0.92 3
(30) BOLT 9104036616M 910403-6616 OR 910903-6616 $1.07 3
(31) COIL TUBE 361761490 361-76149-0 $0.00 1 Sold Out View More Details
(32) RUBBER STARTER MOTOR 346760070M 346-76007-0 $8.97 1
(33) GROUND CABLE 3G2761420M 3G2-76142-0 30A4 # 35175~ / 25C3 # 50039~ $2.79 1
