12. TRANSMISSION - WATER PUMP

Click Here for Microfiche Usage Tip

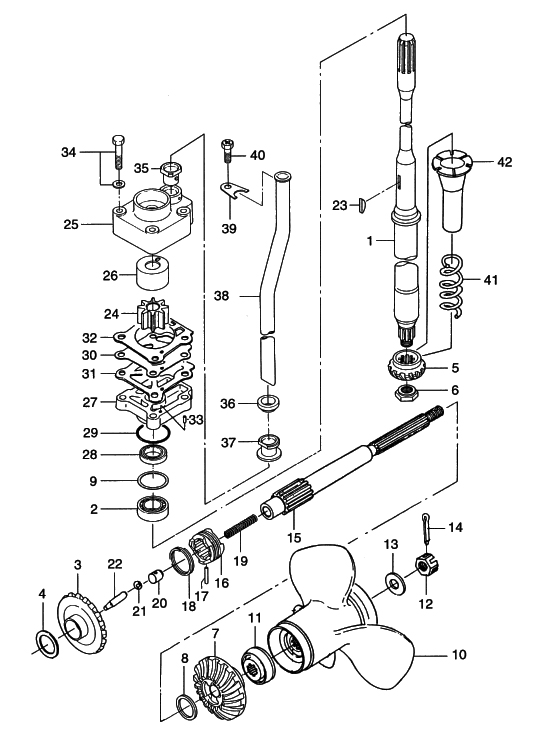

(1) DRIVE SHAFT "S"(1) DRIVE SHAFT "L"(1) DRIVE SHAFT "UL"(1) DRIVE SHAFT "LL"(2) BEARING, 32004(3) BEVEL GEAR "A"(4) SHIM, 26.5-34.8-0.1(4) SHIM, 26.5-34.8-0.15(5) BEVEL GEAR "B"(6) NUT, BEVEL GEAR "B"(7) BEVEL GEAR "C"(8) WASHER,18-24-1.5(9) SHIM, 35-41.9-0.1(9) SHIM, 35-41.9-0.15(9) SHIM, 35-41.9-0.3(9) SHIM, 35-41.9-0.5(10) PROPELLER 8, (3 X 10.2 X 8.3)(10) PROPELLER DS 9, (3 X 9.72 X 9.0)(10) PROPELLER DS 10, (3 X 9.72 X 10)(10) PROPELLER DS 11, (3 X 9.8 X 11.0)(10) PROPELLER DS 12, (3 X 9.8 X 12)(10) PROPELLER DS 13, (3 X 9.6 X 13.0)(10) PROPELLER 8, (3 X 9.9 X 14.2)(11) THRUST HOLDER, PROPELLER(12) NUT, PROPELLER(13) WASHER,12.5-32-2.5(14) SPLIT PIN, 3-22(15) PROPELLER SHAFT(16) CLUTCH(17) CLUTCH PIN(18) SNAP, CLUTCH PIN(19) SPRING, CLUTCH(20) SPRING HOLDER, CLUTCH(21) STEEL BALL, 3/8(22) PUSH ROD, CLUTCH(23) KEY, WATER PUMP IMPELLER(24) IMPELLER, WATER PUMP(25) PUMP CASE UPPER(26) LINER, PUMP CASE(27) PUMP CASE LOWER(28) OIL SEAL, 17-30-9(29) O-RING, 3.5-36(30) GUIDE PLATE, WATER PUMP(31) GASKET, PUMP GUIDE PLATE(32) GASKET, PUMP CASE UPPER(33) KNOCK, 4-10(34) BOLT(35) SEAL RUBBER LOWER, WATER PIPE(36) SEAL RUBBER UPPER, WATER PIPE(37) LOCK RUBBER, WATER PIPE(38) WATER PIPE "S"(38) WATER PIPE "L"(38) WATER PIPE "UL"(38) WATER PIPE "LL"(39) LOCK PLATE, WATER PIPE(40) BOLT(41) SPRING, DRIVE SHAFT(42) PIPE, DRIVE SHAFT



Parts List
2003 :: 30 HP :: 2 Stroke Nissan NS30A4 :: TRANSMISSION - WATER PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE SHAFT S 346643015M 346-64301-5 FOR TRANSOM S $289.92 1
(1) DRIVE SHAFT L 346643025M 346-64302-5 FOR TRANSOM L $301.47 1
(1) DRIVE SHAFT UL 346643035M 346-64303-5 FOR TRANSOM UL $0.00 1 Sold Out View More Details
(1) DRIVE SHAFT LL 346643045M 346-64304-5 FOR TRANSOM LL $0.00 1 Sold Out View More Details
(2) BEARING 32004 346602130M 346-60213-0 $32.23 1
(3) BEVEL GEAR A 346640101M 346-64010-1 30A3 # 30720~ / 25C2 # 40911~ $109.58 1
(4) SHIM 26.5-34.8-0.15 369640230M 369-64081-1 $0.00 0 Sold Out View More Details
(4) SHIM 26.5-34.8-0.15 369640230M 369-64081-1 $0.00 0 Sold Out View More Details
(5) BEVEL GEAR B 346640201M 346-64020-1 $78.21 1 Sold Out View More Details
(6) NUT BEVEL GEAR B 346640271M 346-64027-1 $13.35 1
(7) BEVEL GEAR C 346640300M 346-64030-0 $108.15 1
(8) WASHER BEVEL GEAR C 346640320M 346-64032-0 $4.38 1
(9) SHIM 35 – 41.9 – 0.1 346640810M 346-64081-0 $2.18 0
(9) SHIM 35 – 41.9 – 0.1.5 346640820M 346-64082-0 $2.18 0
(9) SHIM 35 – 41.9 – 0.3 346640830M 346-64083-0 $2.18 0
(9) SHIM 35 – 41.9 – 0.5 346640840M 346-64084-0 $2.18 0
(10) PROPELLER 8 (3 X 260 X 210) 346641065M 346-64106-5 $160.46 1
(10) PROPELLER DS 9 (3 X 252 X 229) 3R0645180M 3R0-64518-0 $104.63 1
(10) PROPELLER DS 10 (3 X 252 X 254) 3R0645210M 3R0-64521-0 STD. TRANSOM UL $104.63 1 Sold Out View More Details
(10) PROPELLER DS 11(3 X 252 X 279) 3R0645230M 3R0-64523-0 STD. TRANSOM L LL $104.63 1
(10) PROPELLER DS 12 (3 X 252 X 305) 3R0645250M 3R0-64525-0 $104.63 1
(10) PROPELLER DS 13 (3 X 257 X 330) 3R0645270M 3R0-64527-0 STD. TRANSOM S $104.63 1
(10) PROPELLER 14 (3 X 252 X 360) 346641055M 346-64105-5 $0.00 1 Sold Out View More Details
(11) THRUST HOLDER 346642315M 346-64231-5 $29.88 1
(12) NUT PROPELLER 346641215M 346-64121-5 $8.05 1
(13) WASHER 12.5-32-2.5 346641245M 346-64124-5 $4.83 1
(14) SPLIT PIN 3 – 22 9515030322M 951503-0322 $0.83 1
(15) PROPELLER 346642116M 346-64211-6 $241.59 1
(16) CLUTCH 346642151M 346-64215-1 $62.13 1
(17) CLUTCH PIN 346642180M 346-64218-0 $2.37 1
(18) SNAP CLUTCH PIN 346642190M 346-64219-0 $1.61 1 Sold Out View More Details
(19) SPRING CLUTCH 332642210M 332-64221-0 $1.85 1
(20) SPRING HOLDER CLUTCH 350642220M 350-64222-0 $13.25 1
(21) STEEL BALL 318 9650020803M 965002-0803 30A3 # 30720~ / 25C2 # 40911~ $1.13 1
(22) PUSH ROD CLUTCH 3C8642231M 3C8-64223-1 30A3 # 30720~ / 25C2 # 40911~ $11.02 1
(23) KEY PUMP IMPELLER 332650220M 332-65022-0 $6.47 1
(24) IMPELLER WATER PUMP 345650210M 345-65021-0 $12.06 1
(25) PUMP CASE UPPER (BLACK) 348650161M 348-65016-1 $28.61 1
(26) LINER PUMP CASE 348650110M 348-65011-0 $6.36 1
(27) PUMP CASE LOWER 346650172M 346-65017-2 30A3 # 31283~ / 25C2 # 41596~ $48.31 1
(28) OIL SEAL 17 - 30 - 9 346650130M 346-65013-0 $8.52 1
(29) O-RING 3.5 - 36 336624150M 336-62415-0 $1.50 1
(30) GUIDE PLATE WATER PUMP 348650250M 348-65025-0 $2.39 1
(31) GASKET GUIDE PLATE 348650291M 348-65029-1 $2.42 1
(32) GASKET PUMP CASE 348650180M 348-65018-0 $2.42 1
(33) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
(34) BOLT 9101135652M 910113-5652 $2.91 4 Sold Out View More Details
(35) SEAL RUBBER LOWER WATER PIPE 3B7650140M 3B7-65014-0 $2.31 1
(36) SEAL RUBBER UPPER WATER PIPE 346652060M 346-65206-0 $2.07 1
(37) WATER PIPE AUXILIARY MOUNT 346652040M 346-65204-0 $2.31 1 Sold Out View More Details
(38) WATER PIPE S 346651000M 346-65100-0 FOR TRANSOM S $14.31 1
(38) WATER PIPE L 346651100M 346-65110-0 FOR TRANSOM L $16.82 1
(38) WATER PIPE UL 346651200M 346-65120-0 FOR TRANSOM UL $0.00 1 Sold Out View More Details
(38) WATER PIPE LL 346651300M 346-65130-0 FOR TRANSOM LL $0.00 1 Sold Out View More Details
(39) LOCK PLATE WATER PIPE 346652030M 346-65203-0 $3.91 1
(40) BOLT 9104030610M 910403-0610 $0.00 1 Sold Out View More Details
(41) SPRING DRIVE SHAFT 346643270M 346-64327-0 $4.38 1
(42) PIPE DRIVE SHAFT 346643280M 346-64328-0 $4.19 1
