5. FUEL PUMP

Click Here for Microfiche Usage Tip

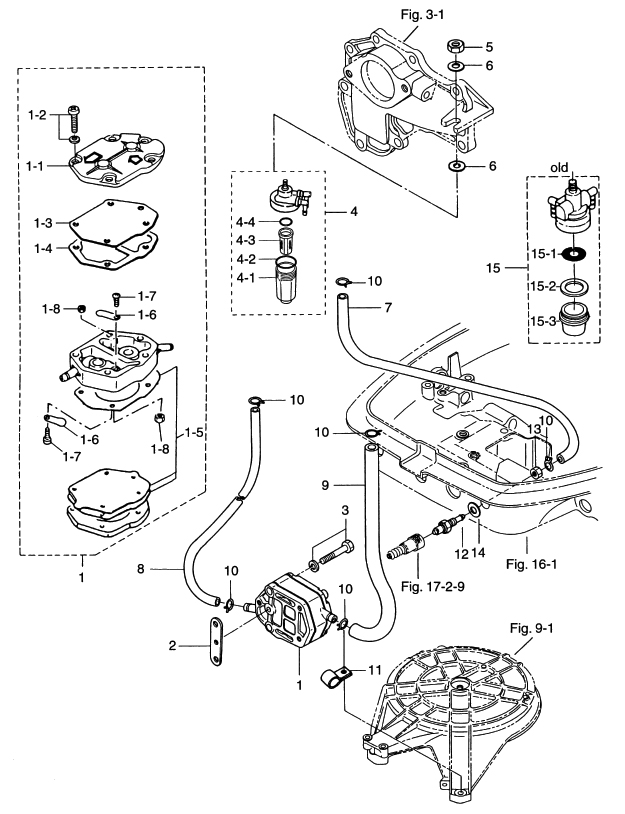

(1) FUEL PUMP(1) FUEL PUMP(1-1) PUMP COVER(1-2) SCREW(1-3) DIAPHRAGM(1-4) GASKET "B", DIAPHRAGM(1-5) DIAPHRAGM SET(1-6) CHECK VALVE(1-6) CHECK VALVE(1-7) SCREW(1-7) SCREW(1-8) NUT(1-8) NUT(2) GASKET, FUEL PUMP(3) SCREW(4) FUEL FILTER(4-1) CAP(4-2) O-RING "A"(4-3) FILTER(4-4) O-RING "B"(5) NUT(6) WASHER, 8.1-16-1.5(6) WASHER, 8.1-16-1.5(7) FUEL PIPE(8) FUEL PIPE(9) FUEL PIPE(10) CLIP, o 10(10) CLIP, o 10(10) CLIP, o 10(10) CLIP, o 10(10) CLIP, o 10(10) CLIP, o 10(11) CLAMP, 6.5-14(12) FUEL CONNECTOR (ENGINE, MALE)(13) NUT, 10-P1.25(14) GASKET, 10.2-16-0.5(15) FUEL FILTER(15-1) FILTER(15-2) GASKET(15-3) CAP



Parts List
2003 :: 30 HP :: 2 Stroke Nissan NS30A4 :: FUEL PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FUEL PUMP 356040001M 356-04000-1 $88.09 1
(1-1) PUMP COVER 334040040M 334-04004-0 $16.82 1
(1-2) SCREW 9225126528M 922512-6528 $0.69 3
(1-3) PUMP DIAPHRAGM 334040050M 334-04005-0 $29.88 1
(1-4) DIAPHRAGM GASKET B 334040070M 334-04007-0 $8.52 1
(1-5) DIAPHRAGM GASKET SET 356040300M 356-04030-0 $25.62 1
(1-6) CHECK VALVE 356040440M 356-04044-0 $4.19 2
(1-7) SCREW 9217220306M 921722-0306 $0.88 2
(1-8) NUT 9302220300M 930222-0300 $0.86 2
(2) GASKET FUEL PUMP 346049010M 346-04901-0 $2.71 1
(3) SCREW 9215036640M 921503-6640 $1.75 2
(4) FUEL FILTER 3B7022300M 3B7-02230-0 $27.66 1
(4-1) CUP 3B7022370M 3B7-02237-0 $7.34 1
(4-2) O-RING A 3B7022350M 3B7-02235-0 $2.56 1
(4-3) FILTER 3B7022340M 3B7-02234-0 $6.59 1
(4-4) O-RING B 3B7022360M 3B7-02236-0 $1.45 1
(5) NUT 9301060800M 930106-0800 $1.99 1 Sold Out View More Details
(6) WASHER 8.1 -16 -1.5 3P0662330M 3P0-66233-0 $1.29 2
(7) RUBBER HOSE 98AB51000M 98AB51000M OLD 98AB-5-0140 $11.41 1
(8) RUBBER HOSE 98AB51000M 98AB51000M $11.41 1
(9) AIR PIPE 98AB50230M 98AB-5-0230 $11.41 1
(10) CLIP ø10 338022150M 338-02215-0 $1.41 6
(11) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(12) FUEL CONNECTOR (ENGINE MALE) 3B2702601M 3B2-70260-1 $16.97 1
(13) NUT 10-P 1.25 332702610M 332-70261-0 $2.58 1
(14) GASKET 10.2-16-0.5 336701120M 336-70112-0 $1.55 1
(15) FUEL FILTER 346022300M 346-02230-0 OLD $21.10 1
(15-1) FILTER 346022340M 346-02234-0 OLD $2.31 1
(15-2) GASKET A 346022350M 346-02235-0 OLD $3.64 1
(15-3) CAP 346022370M 346-02237-0 OLD $12.61 1
