3. INLET - REED VALVE

Click Here for Microfiche Usage Tip

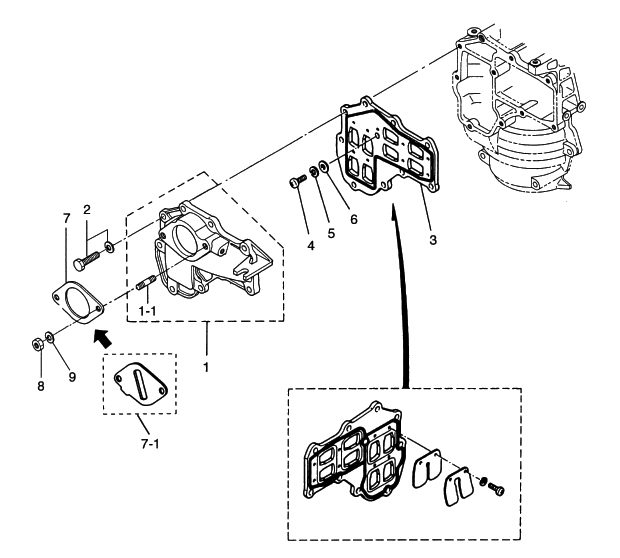

(1) INLET MANIFOLD(1-1) STUD BOLT(2) BOLT(3) REED VALVE ASSY(4) SCREW(5) SPRING WASHER(6) WASHER(7) GASKET, CARBURETOR(7-1) RESTRICTER(8) NUT(9) SPRING WASHER



Parts List
2003 :: 30 HP :: 2 Stroke Nissan NS30A4 :: INLET - REED VALVE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) INLET MANIFOLD 346B020101 346B02010-1 30A4 # 35175~ / 25C3 # 50039~ $63.76 1
(1-1) STUD BOLT 9153210618M 915321-0618 $1.34 2
(2) BOLT 9101216625M 910121-6625 $0.84 9
(3) REED VALVE ASSY 346021002M 346-02100-2 $119.67 1
(4) SCREW 9215210616M 921521-0616 $0.00 1 Sold Out View More Details
(5) SPRING WASHER 9413220600M 941322-0600 $0.35 1
(6) WASHER 9401210600M 940121-0600 $0.86 1
(7) GASKET CARBURETOR 346020110M 346-02011-0 $7.62 1
(7-1) RESTRICTER 3P1035360M 3P1-03536-0 NOT USED FOR 30HP / 25C3 # 50039~ $3.68 0
(8) NUT 9301030600M 930113-0600 OR 930113-0600 $0.84 2
(9) SPRING WASHER 9413030600M 941303-0600 $0.84 2
