2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip

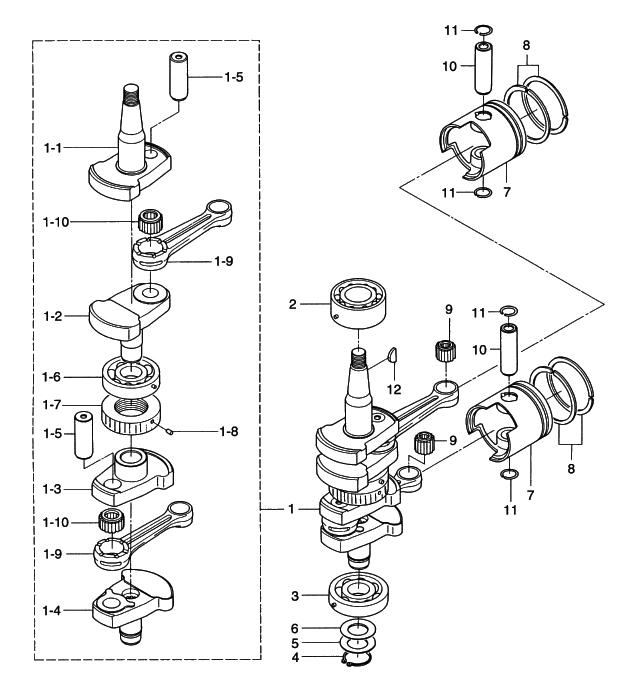

(1) CRANK SHAFT(1-1) CRANK SHAFT "A"(1-2) CRANK SHAFT "B"(1-3) CRANK SHAFT "C"(1-4) CRANK SHAFT "D"(1-5) CRANK PIN(1-5) CRANK PIN(1-6) BALL BEARING, 6305(1-7) LABYRINTH PACKING(1-8) SPRING PIN, 3-8(1-9) CONNECTING ROD(1-9) CONNECTING ROD(1-10) NEEDLE BEARING, 20-28-18(1-10) NEEDLE BEARING, 20-28-18(2) BALL BEARING, 3026(3) BALL BEARING, 6305(4) CLIP(5) SPACER, 25.2-34-1.6(6) SHIM, 25.5-33-0.2(7) PISTON (STD)(7) PISTON (STD)(7) PISTON (0.5MM O/S)(7) PISTON (0.5MM O/S)(8) PISTON RING (STD)(8) PISTON RING (STD)(8) PISTON RING (0.5MM O/S)(8) PISTON RING (0.5MM O/S)(9) NEEDLE BEARING, 17-21-27(9) NEEDLE BEARING, 17-21-27(10) PISTON PIN(10) PISTON PIN(11) CLIP, PISTON PIN(11) CLIP, PISTON PIN(11) CLIP, PISTON PIN(11) CLIP, PISTON PIN(12) KEY, MAGNETO



Parts List
2003 :: 30 HP :: 2 Stroke Nissan NS30A4 :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANK SHAFT 346000301M 346-00030-1 $473.63 1
(1-1) CRANK SHAFT A 346000310M 346-00031-0 $0.00 1 Sold Out View More Details
(1-2) CRANK SHAFT B 346000320M 346-00032-0 $0.00 1 Sold Out View More Details
(1-3) CRANK SHAFT C 346000330M 346-00033-0 $0.00 1 Sold Out View More Details
(1-4) CRANK SHAFT D 346000340M 346-00034-0 $0.00 1 Sold Out View More Details
(1-5) CRANK PIN 334000610M 334-00061-0 $20.96 2
(1-6) BEARING 6305 3J2001140M 3J2-00114-0 30A3 # 29197~ / 25C2 # 38254~ $28.76 1
(1-7) LABYRINTH PACKING 346000511M 346-00051-1 30A3 # 33181~ / 25C2# 45535~ $32.23 1
(1-8) SPRING PIN 3-8 9514070308M 951407-0308 30A3 # 33181~ / 25C2# 45535~ $0.90 1
(1-9) CONNECTING ROD 336000401M 336-00040-1 $85.17 2
(1-10) NEEDLE BEARING 20-28-18 356000430M 356-00043-0 $33.06 2
(2) BALL BEARING 3026 345001130M 345-00113-0 $82.87 1
(3) BEARING 6305 3J2001140M 3J2-00114-0 $28.76 1
(4) C-RING D=25 9451072500M 945107-2500 30A3 # 29197~ / 25C2 # 38254~ $1.10 1
(5) SPACER 25.2-34-1.6 346001160M 346-00116-0 $1.20 1
(6) SHIM 25.5-33-0.2 332001430M 332-00143-0 $1.41 0
(7) PISTON (STD) 346000011M 346-00001-1 $77.11 1
(7) PISTON (0.5MM O/S) 346000041M 346-00004-1 OPTION $79.30 1
(7) PISTON (STD) 346000011M 346-00001-1 $77.11 1
(7) PISTON (0.5MM O/S) 346000041M 346-00004-1 OPTION $79.30 1
(8) PISTON RING 2ND (STD) 346000110M 346-00011-0 $9.90 4
(8) PISTON RING 2ND (0.5MM O/S) 346000140M 346-00014-0 OPTION $12.38 4
(8) PISTON RING 2ND (STD) 346000110M 346-00011-0 $9.90 4
(8) PISTON RING 2ND (0.5MM O/S) 346000140M 346-00014-0 OPTION $12.38 4
(9) NEEDLE BEARING 17-21-27 345000420M 345-00042-0 $11.48 2
(10) PISTON PIN 3C8000210M 3C8-00021-0 $8.80 2
(11) PISTON PIN CLIP 334000241M 334-00024-1 $1.20 4
(12) KEY MAGNETO 334001310M 334-00131-0 $3.39 1
