21. OPTIONAL PARTS (IV) - ACCESSORIES (1)

Click Here for Microfiche Usage Tip

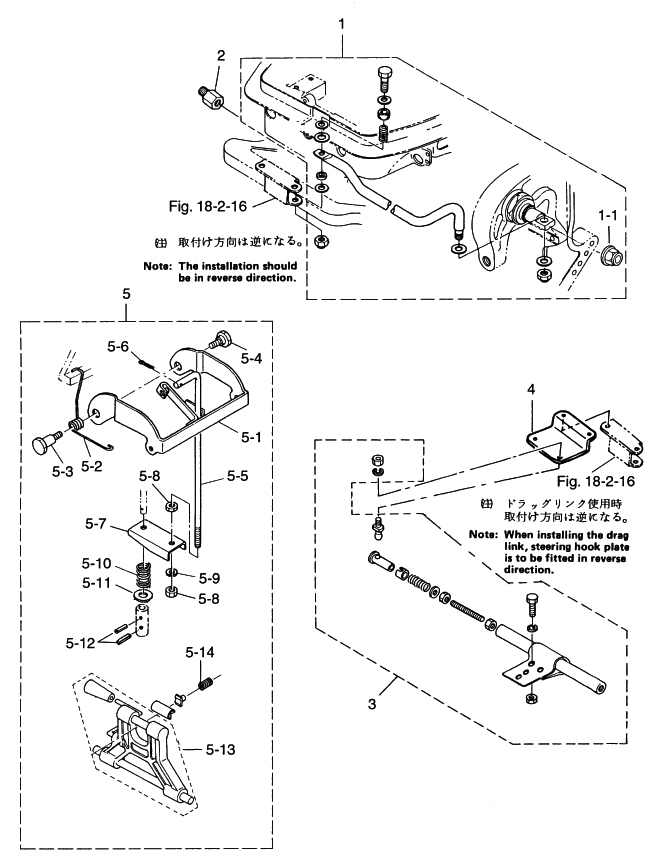

(1) DRAG LINK "C" ASSY(1-1) SEAL RING, DRAG LINK(2) SPACER, DRAG LINK STEERING(3) TWIN REMOTE CONTROL TURN BUCKLE(4) PLATE, TURN BUCKLE(5) SHIFT LEVER, REVERSE LOCK KIT(5-1) REVERSE LOCK(5-2) SPRING, REVERSE LOCK(5-3) SHAFT "B", REVERSE LOCK ARM(5-4) SHAFT, REVERSE LOCK(5-5) LINK, REVERSE LOCK(5-6) SPLIT PIN, 2-12(5-7) PLATE, REVERSE LOCK LINK(5-8) NUT(5-8) NUT(5-9) SPRING WASHER(5-10) SPRING, LINK PLATE(5-11) SPRING HOLDER(5-12) SPRING PIN, 3-12(5-13) TILT STOPPER(5-14) FRICTION SPRING, TILT STOPPER



Parts List
2003 :: 25 HP :: 2 Stroke Tohatsu M25C3 :: OPTIONAL PARTS (IV) - ACCESSORIES (1)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRAG LINK C ASSY 346849051M 346-84905-1 $77.11 1
(1-1) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 $2.56 1 Sold Out View More Details
(2) DRAG LINK SPACER 353849040M 353-84904-0 $66.76 1
(3) TIE-BAR KIT C 3A3849001M 3A3-84900-1 $0.00 1 Sold Out View More Details
(4) PLATE TURN BUCKLE 346849010M 346-84901-0 $39.13 2
(5) SHIFT LEVER REVERSE LOCK KIT 346669010M 346669010M $0.00 1 Sold Out View More Details
(5-1) REVERSE LOCK 346669020M 346-66902-0 TO BE PURCHASED AS AN ASSEMBLY $0.00 1 Sold Out View More Details
(5-2) SPRING REVERSE LOCK 346669030M 346-66903-0 TO BE PURCHASED AS AN ASSEMBLY $0.00 1 Sold Out View More Details
(5-3) SHAFT B REVERSE LOCK ARM 346669040M 346-66904-0 TO BE PURCHASED AS AN ASSEMBLY $0.00 1 Sold Out View More Details
(5-4) SHAFT REVERSE LOCK 332663070M 332-66307-0 TO BE PURCHASED AS AN ASSEMBLY $2.16 1 Sold Out View More Details
(5-5) LINK REVERSE LOCK 346669080M 346-66908-0 TO BE PURCHASED AS AN ASSEMBLY $0.00 1 Sold Out View More Details
(5-6) SPLIT PIN 2-12 9515030212M 951503-0212 TO BE PURCHASED AS AN ASSEMBLY $0.97 1
(5-7) PLATE REVERSE LOCK LINK 346669050M 346-66905-0 TO BE PURCHASED AS AN ASSEMBLY $0.00 1 Sold Out View More Details
(5-8) NUT 9301030500M 930103-0500 TO BE PURCHASED AS AN ASSEMBLY $0.86 1
(5-9) SPRING WASHER 9413030500M 941303-0500 TO BE PURCHASED AS AN ASSEMBLY $0.90 1
(5-10) SPRING LINK PLATE 346669060M 346-66906-0 TO BE PURCHASED AS AN ASSEMBLY $0.00 1 Sold Out View More Details
(5-11) SPRING HOLDER 346669090M 346-66909-0 TO BE PURCHASED AS AN ASSEMBLY $0.00 1 Sold Out View More Details
(5-12) SPRING PIN 3-12 9514030312M 951403-0312 TO BE PURCHASED AS AN ASSEMBLY $0.83 2
(5-13) TILT STOPPER 346S624310 346S62431-0 TO BE PURCHASED AS AN ASSEMBLY $0.00 1 Sold Out View More Details
(5-14) FRICTION SPRING 346624211M 346-62421-1 TO BE PURCHASED AS AN ASSEMBLY $3.20 1
