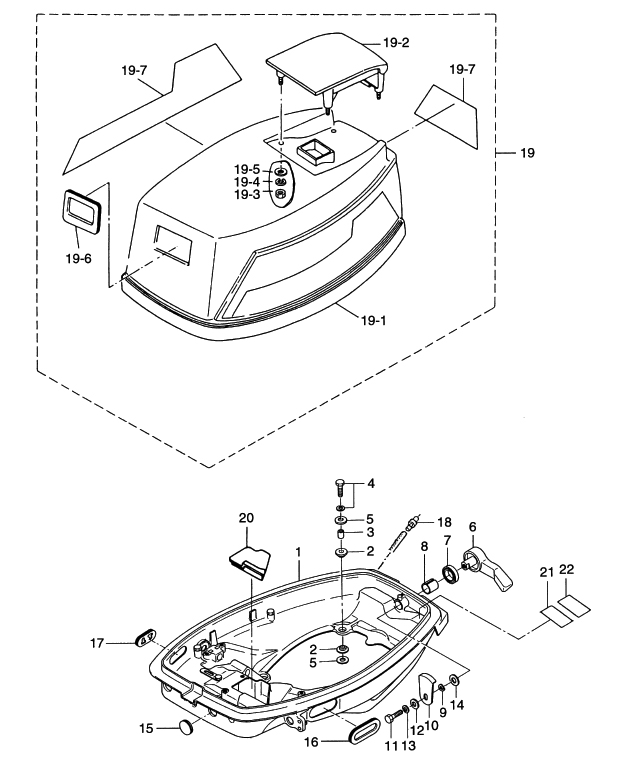

16. MOTOR COVER

Click Here for Microfiche Usage Tip
(1) MOTOR COVER LOWER(2) MOUNT RUBBER(2) MOUNT RUBBER(3) SPACER, 6.2-9-15.7(4) BOLT(5) WASHER, 6.5-21-1(5) WASHER, 6.5-21-1(6) HOOK LEVER(7) SEAL RING, HOOK LEVER(8) BUSHING, 14-16.5-17.7(9) WAVE WASHER, D=14(10) COVER HOOK(11) BOLT(12) WASHER, 6-16-1.5(13) SPRING WASHER(14) WASHER, 14-22-1(15) GROMMET, 22-3(16) GROMMET "B", MOTOR COVER LOWER(17) GROMMET, BATTERY CABLE(18) WATER NIPPLE(19) MOTOR COVER UPPER(19) MOTOR COVER UPPER(19-1) SEAL RUBBER, MOTOR COVER UPPER(19-2) TILT HANDLE(19-3) NUT(19-4) SPRING WASHER(19-5) WASHER, 6.5-16-2(19-6) SEAL RUBBER, STARTER(19-7) DECAL SET(19-7) DECAL SET(19-7) DECAL SET(19-7) DECAL SET(20) GROMMET "D", MOTOR COVER LOWER(21) LABEL, SPARK PLUG(22) LABEL, SPARK PLUG (RESISTANCE)



Parts List
2003 :: 25 HP :: 2 Stroke Tohatsu M25C3 :: MOTOR COVER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) MOTOR COVER LOWER 346S671003 346S67100-3 30A3 # 33577~ / 25C2 # 46214~ $321.13 1
(2) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 8
(3) SPACER 6.2-9-15.7 346671140M 346-67114-0 $1.76 4
(4) BOLT 9101130630M 910113-0630 $1.21 4
(5) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 4
(6) HOOK LEVER 338S671410 338S67141-0 30A3 # 33577~ / 25C2 # 46214~ $16.82 1
(7) SEAL RING 338671470M 338-67147-0 30A3 # 33577~ / 25C2 # 46214~ $1.85 1
(8) BUSHING 14 -16.5 -17.7 350671050M 350-67105-0 30A3 # 33577~ / 25C2 # 46214~ $1.66 1
(9) WAVE WASHER D=14 9414031400M 941403-1400 $0.83 1
(10) COVER HOOK 345671421M 345-67142-1 $11.02 1
(11) BOLT 9101030612M 910113-0612 $0.84 1
(12) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(13) SPRING WASHER 9413030600M 941303-0600 $0.84 1
(14) WASHER 14-22-1 3C8671460M 3C8-67146-0 $1.47 1
(15) GROMMET 22-3 345671610M 345-67161-0 $5.53 1
(16) GROMMET B MOTOR COVER LOWER 346671650M 346-67165-0 $6.59 1
(17) GROMMET BATTERY CORD 353671620M 353-67162-0 $3.31 1
(18) WATER NIPPLE 353011380M 353-01138-0 $2.21 1
(19) MOTOR COVER UPPER 3P0S675000 3P0S67500-0 30A4 #36105~ / 25C3 #52799~ / TOHATSU $0.00 1 Sold Out View More Details
(19) MOTOR COVER UPPER 3A9N675005 3A9N67500-5 30A4 #36105~ / 25C3 #52799~ / NISSAN $0.00 1 Sold Out View More Details
(19-1) TOP COWL SEAL 3F3675010M 3F3-67501-0 $35.48 1
(19-2) TILT HANDLE 349S675210 349S67521-0 $75.33 1
(19-3) NUT 9301030600M 930113-0600 OR 930113-0600 $0.84 4
(19-4) SPRING WASHER 9413030600M 941303-0600 $0.84 4
(19-5) WASHER 6.5 -16 - 2 309700160M 309-70016-0 $1.41 4
(19-6) SEAL RUBBER STARTER 344675030M 344-67503-0 $14.67 1
(19-7) DECAL SET 3P1S878010 3P1S87801-0 25C3 #52799~ / TOHATSU $53.11 1
(19-7) DECAL SET 3A8N878015 3A8N87801-5 25C3 #52799~ / NISSAN $0.00 1 Sold Out View More Details
(20) GROMMET D MOTOR COVER LOWER 346671610M 346-67161-0 OPTION $8.80 1
(21) LABEL SPARK PLUG 332720250 332-72025-0 $0.00 1 Sold Out View More Details
(22) LABEL SPARK PLUG (RESISTANCE) 361720260M 361-72026-0 $1.27 1
