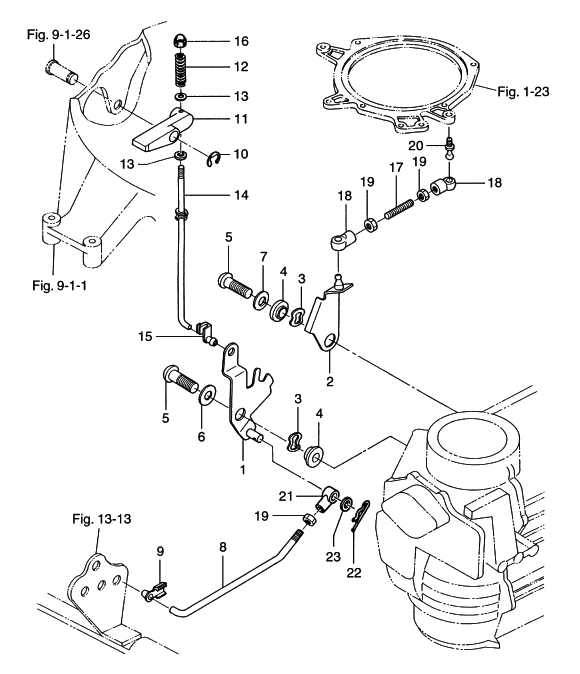

10. STARTER LOCK

Click Here for Microfiche Usage Tip
(1) LOCK ARM, STARTER(2) STOP ARM, THROTTLE(3) WAVE WASHER, D=10(3) WAVE WASHER, D=10(4) BUSHING, 6.2-16-7(4) BUSHING, 6.2-16-7(5) SCREW(5) SCREW(6) WASHER, 6-16-1.5(7) WASHER(8) ROD, STARTER LOCK ARM(9) ROD SNAP, 5-2.5(10) E-RING, D=6(11) LEVER, STARTER LOCK(12) SPRING, STARTER LOCK(13) WASHER(13) WASHER(14) ROD, STARTER LOCK(15) ROD SNAP, 3.5-2(16) CAP, STARTER LOCK LEVER(17) ROD, THROTTLE STOP ARM(18) CAP "C", BALL JOINT(18) CAP "C", BALL JOINT(19) NUT(19) NUT(19) NUT(20) BALL JOINT "B"(21) ROD JOINT o 5(22) R-PIN, D=8(23) WASHER, 8.5-18-1.6



Parts List
2003 :: 25 HP :: 2 Stroke Tohatsu M25C3 :: STARTER LOCK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) LOCK ARM STARTER 346052111M 346-05211-1 $11.99 1
(2) STOP ARM THROTTLE 346052130M 346-05213-0 $14.70 1
(3) WAVE WASHER D=10 9414031000M 941403-1000 $0.81 2
(4) BUSHING 6.2-16-7 346052120M 346-05212-0 $2.31 2
(5) SCREW 9215030620M 921503-0620 $1.02 2
(6) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 OR 3C8-66308-0 $1.59 1 Sold Out View More Details
(7) WASHER 9401030600M 940103-0600 OR 940113-0600 $0.70 1
(8) ROD STARTER LOCK ARM 346052220M 346-05222-0 $5.29 1
(9) ROD SNAP 5-2.5 345052240M 345-05224-0 $1.45 1
(10) E-RING D=6 9453030600M 945303-0600 $0.83 1
(11) LEVER STARTER LOCK 345052260M 345-05226-0 $6.90 1
(12) SPRING STARTER LOCK 345052160M 345-05216-0 $1.61 1
(13) WASHER 9401030400M 940103-0400 $0.58 2
(14) ROD STARTER LOCK 346052171M 346-05217-1 $5.75 1
(15) ROD SNAP 3.5-2 345052231M 345-05223-1 $1.45 1
(16) CAP STARTER LOCK LEVER 346052090M 346-05209-0 $1.85 1
(17) ROD THROTTLE STOP ARM 346052210M 346-05221-0 $2.28 1
(18) BALL JOINT CONNECTOR 3B7052430M 3B7-05243-0 $2.56 2
(19) NUT 9301060500M 930106-0500 $0.86 3
(20) BALL JOINT B 346052280M 346-05228-0 $4.63 1
(21) ROD JOINT ø5 346052340M 346-05234-0 $2.31 1
(22) SNAP PIN D=8 9516030800M 951603-0800 $0.70 1
(23) WASHER 8.5-18-1.6 353837190M 353-83719-0 $2.39 1
