1. CYLINDER - CRANK CASE ASSEMBLY

Click Here for Microfiche Usage Tip

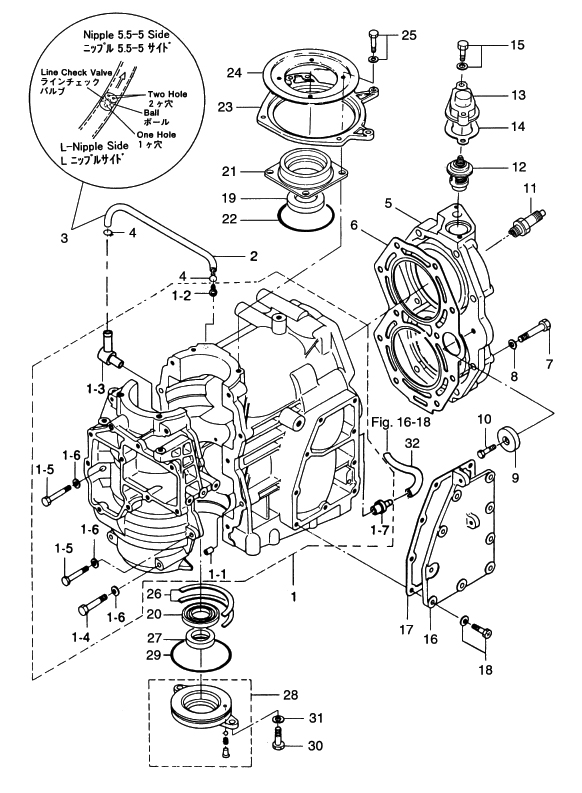

(1) CYLINDER, CRANK CASE(1-1) KNOCK, 8.65-11.5-12.7(1-2) NIPPLE, 5.5-5(1-3) L-NIPPLE (NEW)(1-3) CHECK VALVE NIPPLE (OLD)(1-4) BOLT(1-5) BOLT(1-5) BOLT(1-6) WASHER(1-6) WASHER(1-6) WASHER(1-7) NIPPLE, 7-7(2) LUBRICATION PIPE(3) LINE CHECK VALVE(4) CLIP, o 8(4) CLIP, o 8(5) CYLINDER HEAD(6) GASKET, CYLINDER HEAD(7) BOLT(8) WASHER, 8.5-19.5-3.2(9) ANODE(10) BOLT(11) SPARK PLUG(11) SPARK PLUG ( WITH RESISTANCE)(12) THERMOSTAT(13) CAP, THERMOSTAT(14) GASKET, THERMOSTAT CAP(15) BOLT(16) EXHAUST COVER(17) GASKET, EXHAUST COVER(18) BOLT(19) OIL SEAL, 30-45-8(20) OIL SEAL, 24-40-8(21) MAGNETO BASE(22) O-RING, 2-55.5(23) SET RING(24) GUIDE PLATE(25) BOLT(26) THRUST PLATE, CRANK SHAFT(27) OIL SEAL, 16-28-6(28) HEAD, CRANK CASE(29) O-RING, 1.7-59(30) BOLT(31) SPRING WASHER(32) PIPE, WATER NIPPLE



Parts List
2003 :: 25 HP :: 2 Stroke Tohatsu M25C3 :: CYLINDER - CRANK CASE ASSEMBLY
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYLINDER CRANK CASE 346B011004 346B01100-4 30A4 # 38568~ / 25C3 # 57329~ $1,057.23 1 Sold Out View More Details
(1-1) KNOCK 8.65-11.5-12.7 336011110 336-01111-0 $0.00 2 Sold Out View More Details
(1-2) NIPPLE 5.5-5 393011310M 393-01131-0 30A4 # 38568~ / 25C3 # 57329~ $3.00 1
(1-3) L-NIPPLE (NEW) 393011370M 393-01137-0 30A4 # 38568~ / 25C3 # 57329~ $4.31 1
(1-3) CHECK VALVE NIPPLE (OLD) 3B2011600M 3B2-01160-0 30A4 ~# 38567 / 25C3 ~# 57328 $0.00 1 Sold Out View More Details
(1-4) BOLT 9161240845M 916124-0845 $1.48 8
(1-5) BOLT 9161240840M 916124-0840 $0.00 2 Sold Out View More Details
(1-6) WASHER 9401210800M 940121-0800 $0.37 10
(1-7) NIPPLE 7-7 346011370M 346-01137-0 $5.07 1
(2) LUBRICATION PIPE D 98AL41000M 98AL41000M 30A4 # 38568~ / 25C3 # 57329~ $8.81 1
(3) LINE CHECK VALVE 393011600M 393-01160-0 30A4 # 38568~ / 25C3 # 57329~ $4.31 1
(4) CLIP ø 8 3T5011330M 3T5-01133-0 $1.44 2
(5) CYLINDER HEAD 3A1B010010 3A1B01001-0 30A3 # 21031~ / 25C2 # 27906~ $165.19 1
(6) GASKET CYLINDER HEAD 346010050M 346-01005-0 $58.91 1
(7) BOLT 9161190845M 916119-0845 $0.00 10 Sold Out View More Details
(8) WASHER 8.5-19.5-3.2 345010150M 345-01015-0 $1.41 10
(9) ANODE 338602182M 338-60218-2 $9.20 1
(10) BOLT 9101030616M 910113-0616 OR 910113-0616 $0.98 1
(11) SPARK PLUG ( WITH RESISTANCE) 970101005M 970101005M NGK B7HS-10 $4.64 2
(11) SPARK PLUG ( WITH RESISTANCE) 970101005M 970101005M NGK BR7HS-10 $4.64 2
(12) THERMOSTAT 345010300M 345-01030-0 $26.64 1
(13) THERMOSTAT CAP 3H6B010310M 3H6B01031-0 $10.65 1 Sold Out View More Details
(14) THERMOSTAT CAP GASKET 346010320M 346-01032-0 $1.93 1
(15) BOLT 9101145630M 910114-5630 $1.21 2
(16) EXHAUST COVER 346B023010 346B02301-0 $42.51 1
(17) GASKET EXHAUST COVER 346023050M 346-02305-0 $7.00 1
(18) BOLT 9104216518M 9104216518M $0.76 9
(19) OIL SEAL 30-45-8 126001210M 126-00121-0 $7.34 1
(20) OIL SEAL 24-40-8 346001220M 346-00122-0 $6.07 1
(21) MAGNETO BASE 345014010M 345-01401-0 $52.86 1
(22) O-RING 2-55.5 338014030M 338-01403-0 $2.31 1
(23) SET RING 353637231M 353-63723-1 $22.31 1
(24) GUIDE PLATE 346637222M 346-63722-2 $21.65 1
(25) BOLT 9101216620M 910121-6620 $0.46 4
(26) CRANK SHAFT THRUST PLATE 346001150M 346-00115-0 $2.74 2
(27) OIL SEAL 16 - 28 - 6 346012150M 346-01215-0 $4.40 1
(28) HEAD CRANK CASE 346012100M 346-01210-0 $0.00 1 Sold Out View More Details
(29) O-RING 1.7-59 346012160M 346-01216-0 $2.07 1
(30) BOLT 9101140616M 910114-5616 $0.69 2
(31) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(32) RUBBER HOSE 98AB50250M 98AB-5-0250 $11.41 1
