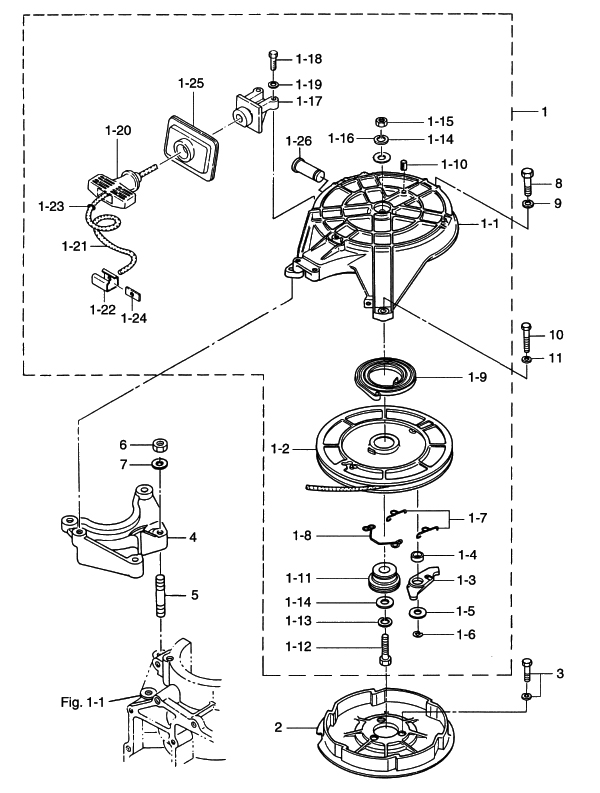

9. RECOIL STARTER

Click Here for Microfiche Usage Tip
(1) RECOIL STARTER(1-1) STARTER CASE(1-2) REEL(1-3) RATCHET(1-4) BUSHING, RATCHET(1-5) WASHER, 6.5-23-1.5(1-6) E-RING, D=5(1-7) RATCHET GUIDE "A"(1-8) RATCHET GUIDE "B"(1-9) STARTER SPRING(1-10) SPRING PIN, 3-16(1-11) STARTER SHAFT(1-12) BOLT(1-13) SPRING WASHER(1-14) WASHER(1-14) WASHER(1-15) NUT(1-16) SPRING WASHER(1-17) GUIDE, STARTER ROPE(1-18) BOLT(1-19) SPRING WASHER(1-20) STARTER HANDLE(1-21) STARTER ROPE(1-22) ROPE ANCHOR(1-23) O-RING, 2.5-4.5(1-24) PLATE, ROPE ANCHOR(1-25) SEAL PLATE, STARTER(1-26) SHAFT, STARTER LOCK LEVER(2) STARTER PULLEY(3) BOLT(4) STARTER BRACKET(5) STUD BOLT(6) NUT(7) WASHER(8) BOLT(9) SPRING WASHER(10) BOLT(11) SPRING WASHER



Parts List
2003 :: 25 HP :: 2 Stroke Nissan NS25C3 :: RECOIL STARTER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RECOIL STARTER 346050001M 346-05000-1 $186.37 1
(1-1) STARTER CASE 345051051M 345-05105-1 $140.39 1
(1-2) REEL ASSY 345051041M 345-05104-1 $66.76 1
(1-3) RATCHET 345050031M 345-05003-1 $6.90 1
(1-4) BUSHING RATCHET 345051351M 345-05135-1 $2.07 1
(1-5) WASHER 6.5 - 23 -1.5 345051220M 345-05122-0 $2.17 1
(1-6) E-RING D=5 9453030500M 945303-0500 $0.86 1
(1-7) RATCHET GUIDE A 345051230M 345-05123-0 $2.56 2
(1-8) RATCHET GUIDE B 345051240M 345-05124-0 $4.63 1
(1-9) STARTER SPRING 345050040M 345-05004-0 $25.33 1
(1-10) SPRING PIN 3-16 9514030316M 951403-0316 $0.83 1
(1-11) STARTER SHAFT 345051320M 345-05132-0 $22.03 1
(1-12) BOLT 9101140830M 910114-0830 $1.85 1
(1-13) SPRING WASHER 9413220800M 941322-0800 $0.92 1
(1-14) WASHER 9401210800M 940121-0800 $0.37 2
(1-15) NUT 9301030800M 930103-0800 OR 910113-0800 $1.99 1
(1-16) SPRING WASHER 9413220800M 941322-0800 $0.92 1
(1-17) GUIDE STARTER ROPE 336050140M 336-05014-0 $11.02 1
(1-18) BOLT 9101140625M 910114-0625 $1.04 2
(1-19) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(1-20) STARTER HANDLE 338050190M 338-05019-0 $8.29 1
(1-21) STARTER ROPE 345050131M 345-05013-1 ø5-2000 $14.31 1
(1-22) ROPE ANCHOR 338051310M 338-05131-0 $2.56 1
(1-23) O-RING 2.5-4.5 350051360M 350-05136-0 $0.90 1
(1-24) PLATE ROPE ANCHOR 345051340M 345-05134-0 $2.07 1
(1-25) SEAL PLATE STARTER 346051161M 346-05116-1 $34.51 1
(1-26) SHAFT STARTER LOCK LEVER 345052250M 345-05225-0 $8.05 1
(2) STARTER PULLEY 345059011M 345-05901-1 $73.63 1
(3) BOLT 9101216625M 910121-6625 $0.84 3
(4) STARTER BRACKET 346B051011 346B05101-1 $33.06 1
(5) STUD BOLT 9153140825M 915314-0825 $2.62 2
(6) NUT 9301210800M 930121-0800 $0.88 2
(7) WASHER 9401210800M 940121-0800 $0.37 2
(8) BOLT 9101140830M 910114-0830 $1.85 1
(9) SPRING WASHER 9413030800M 941303-0800 $0.79 1
(10) BOLT 9101140625M 910114-0625 $1.04 2
(11) SPRING WASHER 9413030600M 941303-0600 $0.84 2
