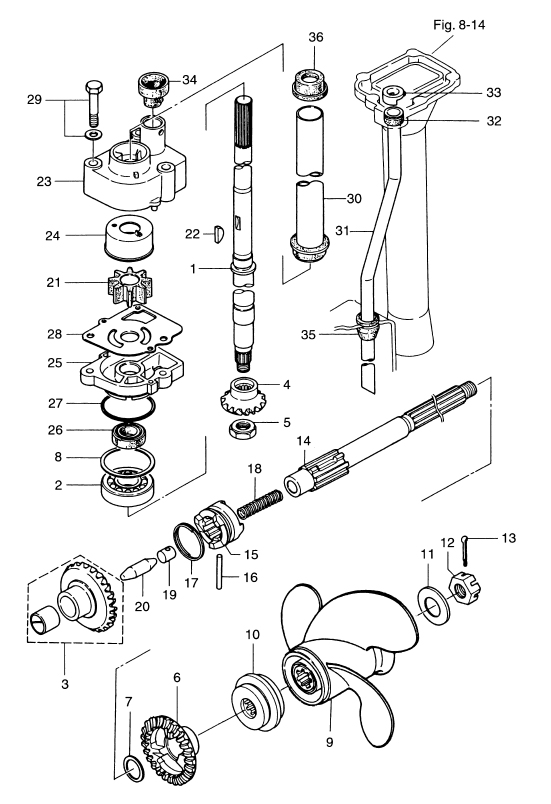

9. TRANSMISSION - WATER PUMP

Click Here for Microfiche Usage Tip
(1) DRIVE SHAFT "S"(1) DRIVE SHAFT "L"(1) DRIVE SHAFT "UL"(1) DRIVE SHAFT "LL"(2) BALL BEARING, 6302(3) BEVEL GEAR "A"(4) BEVEL GEAR "B"(5) NUT, BEVEL GEAR "B"(6) BEVEL GEAR "C"(7) WASHER, 17-22-1.5(8) SHIM, 35-41.9-0.1(8) SHIM, 35-41.9-0.15(8) SHIM, 35-41.9-0.3(8) SHIM, 35-41.9-0.5(9) PROPELLER (6) , 3 X 9.2 X 6.1(9) PROPELLER (7), 3 X 9.2 X 6.6(9) PROPELLER (8), 3 X 9.2 X 7.8(9) PROPELLER (8.5) , 3 X 9.2 X 8.4(9) PROPELLER (8) , 3 X 9.2 X 9.1(9) PROPELLER (10) , 3 X 9.2 X 9.8(10) THRUST HOLDER, PROPELLER(11) WASHER, 12.5-32-2.5(12) NUT, PROPELLER(13) SPLIT PIN, 3-22(14) PROPELLER SHAFT(15) CLUTCH(16) CLUTCH PIN(17) SNAP, CLUTCH PIN(18) SPRING, CLUTCH(19) SPRING HOLDER, CLUTCH(20) PUSH ROD, CLUTCH(21) IMPELLER, WATER PUMP(22) KEY, WATER PUMP IMPELLER(23) PUMP CASE UPPER(24) LINER, PUMP CASE(25) PUMP CASE LOWER(26) OIL SEAL, 13.8-26-9.5(27) O-RING, 3.5-36(28) GUIDE PLATE, WATER PUMP(29) BOLT(30) GUARD PIPE, DRIVE SHAFT(31) WATER PIPE "S"(31) WATER PIPE "L"(31) WATER PIPE "UL"(31) WATER PIPE "LL"(32) SEAL RUBBER UPPER, WATER PIPE(33) STOPPER, WATER PIPE(34) SEAL RUBBER LOWER, WATER PIPE(35) GUIDE RUBBER, WATER PIPE(36) GROMMET UPPER, DRIVE SHAFT



Parts List
2003 :: 18 HP :: 2 Stroke Nissan NS18E2 :: TRANSMISSION - WATER PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE SHAFT S 350643010M 350-64301-0 FOR TRANSOM S $241.59 1
(1) DRIVE SHAFT L 350643020M 350-64302-0 FOR TRANSOM L $253.15 1
(1) DRIVE SHAFT UL 350643030M 350-64303-0 FOR TRANSOM UL $0.00 1 Sold Out View More Details
(1) DRIVE SHAFT LL 350643040M 350-64304-0 FOR TRANSOM LL $266.94 1 Sold Out View More Details
(2) BALL BEARING 6302 960106302M 9601-0-6302 $13.25 1
(3) BEVEL GEAR A 350640100M 350-64010-0 $121.16 1
(4) BEVEL GEAR B 350640200M 350-64020-0 $88.09 1
(5) NUT BEVEL GEAR B 346640271M 346-64027-1 $13.35 1
(6) BEVEL GEAR C 362640300M 362-64030-0 $103.53 1
(7) WASHER 17-22-1.5 350640320M 350-64032-0 $3.87 1
(8) SHIM 35 – 41.9 – 0.1 346640810M 346-64081-0 $2.18 0
(8) SHIM 35 – 41.9 – 0.1.5 346640820M 346-64082-0 $2.18 0
(8) SHIM 35 – 41.9 – 0.3 346640830M 346-64083-0 $2.18 0
(8) SHIM 35 – 41.9 – 0.5 346640840M 346-64084-0 $2.18 0
(9) PROPELLER (6) 3 X 9.2 X 6.1 362641070M 362-64107-0 $78.87 1
(9) PROPELLER (7) 3 X 9.2 X 6.6 362641050M 362-64105-0 15D2/9.9D2 UL $78.87 1
(9) PROPELLER (8) 3 X 9.2 X 7.8 362641030M 362-64103-0 18E2 UL / 15D2/9.9D2 L & LL $90.25 1
(9) PROPELLER (8.5) 3 X 9.2 X 8.4 362641020M 362-64102-0 18E2 LL & UL / 15D2 S $90.25 1
(9) PROPELLER (8) 3 X 9.2 X 9.1 362641010M 362-64101-0 18E2 S $90.25 1
(9) PROPELLER (10) 3 X 9.2 X 9.8 362641080M 362-64108-0 $90.25 1
(10) PROPELLER THRUST HOLDER 362642310M 362-64231-0 $17.57 1
(11) WASHER 12.5-32-2.5 346641245M 346-64124-5 $4.83 1
(12) NUT PROPELLER 346641215M 346-64121-5 $8.05 1
(13) SPLIT PIN 3 – 22 9515030322M 951503-0322 $0.83 1
(14) PROPELLER SHAFT 362642110M 362-64211-0 $211.72 1
(15) CLUTCH 362642150M 362-64215-0 $59.46 1
(16) CLUTCH PIN 350642180M 350-64218-0 ø 5-30 $1.85 1
(17) CLUTCH PIN SNAP 350642190M 350-64219-0 $1.61 1
(18) SPRING CLUTCH 332642210M 332-64221-0 $1.85 1
(19) SPRING HOLDER CLUTCH 350642220M 350-64222-0 $13.25 1
(20) PUSH ROD CLUTCH 350642231M 350-64223-1 $10.98 1
(21) WATER PUMP IMPELLER 334650210M 334-65021-0 $11.37 1
(22) WATER PUMP IMPELLER KEY 350650220M 350-65022-0 $3.96 1 Sold Out View More Details
(23) PUMP CASE (UPPER) 350650161M 350-65016-1 $26.40 1 Sold Out View More Details
(24) PUMP CASE LINER 350650111M 350-65011-1 $10.98 1
(25) PUMP CASE (LOWER) 350650170M 350-65017-0 $15.44 1
(26) OIL SEAL 13.8-26-9.5 332602230M 332-60223-0 $8.05 1
(27) O-RING 3.5 - 36 336624150M 336-62415-0 $1.50 1
(28) WATER PUMP GUIDE PLATE 350650250M 350-65025-0 $2.56 1
(29) BOLT 9101135652M 910113-5652 $2.91 3 Sold Out View More Details
(30) GUARD PIPE DRIVE SHAFT 350643220M 350-64322-0 $22.03 1
(31) WATER PIPE S 350651000M 350-65100-0 FOR TRANSOM S $12.61 1
(31) WATER PIPE L 350651100M 350-65110-0 FOR TRANSOM L $15.46 1
(31) WATER PIPE UL 350651200M 350-65120-0 FOR TRANSOM UL $0.00 1 Sold Out View More Details
(31) WATER PIPE LL 350651300M 350-65130-0 FOR TRANSOM LL $19.33 1 Sold Out View More Details
(32) SEAL RUBBER UPPER WATER PIPE 350652060M 350-65206-0 $1.43 1
(33) STOPPER WATER PIPE 350652050M 350-65205-0 $1.76 1
(34) WATER PIPE SEAL (LOWER) 350650140M 350-65014-0 $1.70 1
(35) GUIDE RUBBER WATER PIPE 350652040M 350-65204-0 $2.07 1
(36) GROMMET UPPER DRIVE SHAFT 350643260M 350-64326-0 $2.40 1
