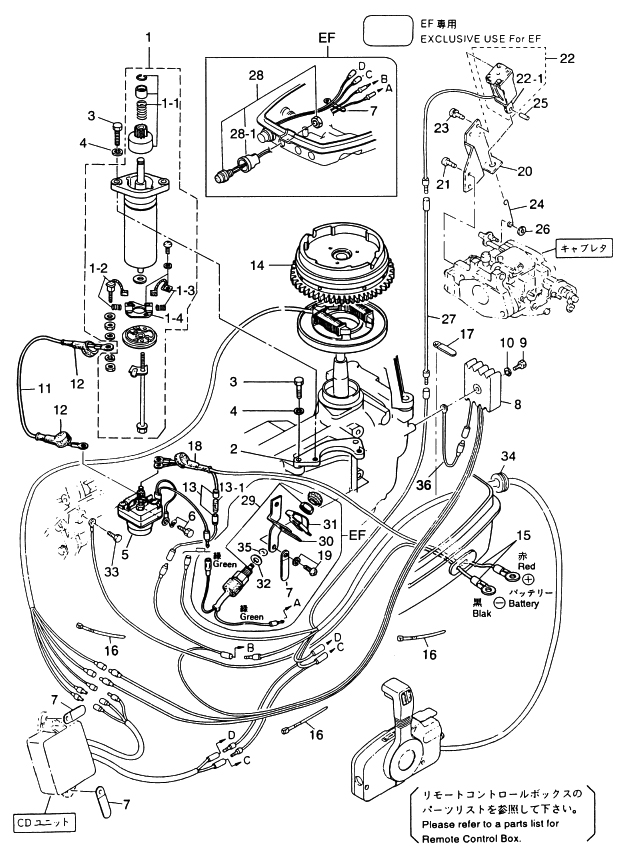

17. OPTIONAL PARTS ELECTRIC STARTER

Click Here for Microfiche Usage Tip
(1) STARTER MOTOR(1-1) PINION(1-2) CARBON BRUSH (+) (WITH SPRING)(1-3) CARBON BRUSH (-) (WITH SPRING)(1-4) BRUSH HOLDER(2) BRACKET, STARTER MOTOR(3) BOLT(3) BOLT(4) SPRING WASHER(4) SPRING WASHER(5) STARTER SOLENOID(6) BOLT(7) CLAMP, 6.5-67P(7) CLAMP, 6.5-67P(7) CLAMP, 6.5-67P(7) CLAMP, 6.5-67P(8) RECTIFIER(9) SCREW(10) SPRING WASHER(11) STARTER CORD(12) CAP, CORD(12) CAP, CORD(13) FUSE WIRE(13-1) FUSE (15A)(14) FLYWHEEL CUP (WITH RING GEAR)(15) BATTERY CORD(16) BAND, LEAD WIRE(16) BAND, LEAD WIRE(16) BAND, LEAD WIRE(17) CLAMP, 6.5-47.5P(18) CAP, CORD(19) SCREW(20) BRACKET, CHOKE SOLENOID(21) SCREW(22) CHOKE SOLENOID(22-1) PLUNGER, CHOKE SOLENOID(23) SCREW(24) HOOK, CHOKE SOLENOID(25) SPRING PIN, 3-12(26) O-RING, 1.5-2.5(27) LEAD WIRE (BLUE)(28) MAIN SWITCH(28-1) PROTECTOR, MAIN SWITCH(29) NEUTRAL SWITCH(30) BRACKET, NEUTRAL SWITCH(31) ACTUATOR, NEUTRAL SWITCH(32) SPACER, NEUTRAL SWITCH(33) BOLT(34) GROMMET, 22-2.5(35) WASHER, 12.5-24-1(36) GROUND CABLE



Parts List
2003 :: 15 HP :: 2 Stroke Tohatsu M15D2 :: OPTIONAL PARTS ELECTRIC STARTER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STARTER MOTOR (OLD) 350760100M 350-76010-0 FOR EP EF $330.38 1
(1-1) PINION 350760150M 350-76015-0 FOR EP EF $127.93 1
(1-2) POSITIVE BRUSH (WITH SPRING) (OLD) 350760120M 350-76012-0 FOR EP EF $27.52 1
(1-3) NEGATIVE BRUSH (WITH SPRING) (OLD) 350760130M 350-76013-0 FOR EP EF $27.52 1
(1-4) BRUSH HOLDER (OLD) 350760140M 350-76014-0 FOR EP EF $66.76 1
(2) BRACKET STARTER MOTOR 350760110M 350-76011-0 FOR EP EF $46.05 1
(3) BOLT 9161030830M 916103-0830 FOR EP EF $2.91 4
(4) SPRING WASHER 9413030800M 941303-0800 FOR EP EF $0.79 4
(5) STARTER SOLENOID 346760400M 346-76040-0 FOR EP EF $77.11 1
(6) BOLT 9101036618M 910103-6618 FOR EP EF $0.79 1
(7) CLAMP 6.5-67P 398069720M 398-06972-0 FOR EP EF $2.31 4
(8) RECTIFIER 3G2760600M 3G2-76060-0 18E2/15D2/9.9D2~ FOR EP EF $66.10 1
(9) SCREW 9215030525M 921503-0525 FOR EP EF $0.90 1
(10) SPRING WASHER 9413030500M 941303-0500 FOR EP EF $0.90 1
(11) STARTER CABLE 3B2761471M 3B2-76147-1 L=200 / FOR EP EF $16.50 1
(12) CAP CORD 3A3761450M 3A3-76145-0 FOR EP EF $3.39 2
(13) FUSE WIRE 3B2760620M 3B2-76062-0 L=355 / FOR EP EF $14.70 1
(13-1) FUSE (15A) 346762120M 346-76212-0 FOR EP EF $4.26 1
(14) FLYWHEEL CUP (WITH RING GEAR) 3G2060911M 3G2-06091-1 18E2/15D2/9.9D2~ FOR EP EF $465.35 1
(15) BATTERY CABLE (L=2000) 3B2761200M 3B2-76120-0 L=2000 / FOR EP EF $61.59 1
(16) LEAD WIRE BAND 100 353843980M 353-84398-0 FOR EP: 2 / FOR EF: 1 $0.84 2
(17) CLAMP 6.5-47.5P 309069720M 309-06972-0 FOR EP EF $2.07 1
(18) CAP CORD 3B7761450M 3B7-76145-0 FOR EP EF $3.39 1
(19) SCREW 9215036612M 921503-6612 FOR EP :1 / FOR EF:2 $0.00 2 Sold Out View More Details
(20) BRACKET CHOKE SOLENOID 3G2760551M 3G2-76055-1 FOR EP $5.48 1
(21) SCREW 9215036512M 921503-6512 FOR EP $0.51 2
(22) CHOKE SOLENOID 361760500M 361-76050-0 FOR EP $88.09 1
(22-1) PLUNGER 361760730M 361-76073-0 FOR EP $8.80 1
(23) SCREW 9215036408M 921503-6408 FOR EP $0.90 3
(24) HOOK CHOKE SOLENOID 3G2760571M 3G2-76057-1 FOR EP $3.57 1
(25) SPRING PIN 3-12 9514030312M 951403-0312 FOR EP $0.83 1
(26) O-RING 1.5-2.5 3C7032710M 3C7-03271-0 FOR EP $1.04 1
(27) LEAD WIRE (BLUE) 398760490M 398-76049-0 FOR EP $0.00 1 Sold Out View More Details
(28) MAIN SWITCH 361760260M 361-76026-0 FOR EF $27.66 1
(28-1) PROTECTOR MAIN SWITCH 346760391M 346-76039-1 FOR EF $4.38 1
(29) NEUTRAL SWITCH 398760800M 398-76080-0 FOR EF $41.45 1
(30) BRACKET NEUTRAL SWITCH 350760810M 350-76081-0 FOR EF $4.40 1
(31) NEUTRAL SWITCH ACTUATOR 398760830M 398-76083-0 FOR EF $4.02 1
(32) SPACER NEUTRAL SWITCH 3M4760840M 3M4-76084-0 FOR EF $1.44 1
(33) BOLT 9101030612M 910113-0612 OR 910113-0612 / FOR EP EF $0.84 1
(34) GROMMET 22-2.5 345760230M 345-76023-0 FOR EP $4.38 1
(35) WASHER 12.5-24-1 3B7637310M 3B7-63731-0 FOR EF $2.31 1
(36) GROUND CABLE 3G2761420M 3G2-76142-0 18E2/15D2/9.9D2~ FOR EP EF $2.79 1
