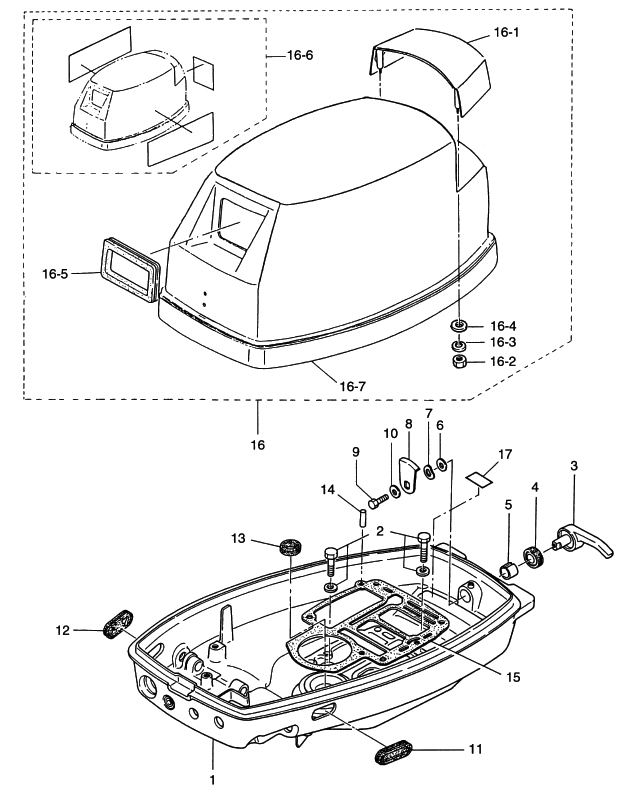

13. MOTOR COVER

Click Here for Microfiche Usage Tip
(1) MOTOR COVER LOWER(2) BOLT(3) HOOK LEVER(4) SEAL RING, HOOK LEVER(5) BUSHING,14-16.5-17.7(6) WASHER,14-22-1(7) WAVE WASHER, D=14(8) COVER HOOK(9) BOLT(10) WASHER, 6-16-1.5(11) GROMMET "B", MOTOR COVER LOWER(12) GROMMET, BATTERY CABLE(13) OIL SEAL,12.8-25-7(14) KNOCK, 6-12(15) GASKET, ENGINE BASE(16) MOTOR COVER UPPER(16) MOTOR COVER UPPER(16-1) TILT HANDLE(16-2) NUT(16-3) SPRING WASHER(16-4) WASHER, 6-16-1.5(16-5) SEAL RUBBER, STARTER(16-6) DECAL SET(16-6) DECAL SET(16-7) SEAL RUBBER, MOTOR COVER UPPER(17) LABEL, SPARK PLUG(17) LABEL, SPARK PLUG (RESISTANCE)



Parts List
2003 :: 15 HP :: 2 Stroke Tohatsu M15D2 :: MOTOR COVER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) MOTOR COVER LOWER 350S671004 350S67100-4 $0.00 1 Sold Out View More Details
(2) BOLT 9101135620M 910113-5620 $1.39 2 Sold Out View More Details
(3) HOOK LEVER 338S671410 338S67141-0 $18.00 1
(4) SEAL RING 338671470M 338-67147-0 $1.98 1
(5) BUSHING 14 -16.5 -17.7 350671050M 350-67105-0 $1.78 1
(6) WASHER 14-22-1 3C8671460M 3C8-67146-0 $1.57 1
(7) WAVE WASHER D=14 9414031400M 941403-1400 $0.88 1
(8) COVER HOOK 345671421M 345-67142-1 $11.79 1
(9) BOLT 9101030612M 910113-0612 OR 910113-0612 $0.90 1
(10) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 OR 3C8-66308-0 $1.70 1
(11) GROMMET B MOTOR COVER LOWER 346671650M 346-67165-0 $7.05 1
(12) GROMMET BATTERY CORD 353671620M 353-67162-0 $3.54 1
(13) OIL SEAL 12.8-25-7 350012151M 350-01215-1 $5.09 1
(14) DOWEL PIN 6-12 345011110M 345-01111-0 $1.39 2
(15) GASKET ENGINE BASE 350013031M 350-01303-1 $26.77 1
(16) MOTOR COVER UPPER 3M4S675001 3M4S67500-1 TOHATSU $397.13 1 Sold Out View More Details
(16) MOTOR COVER UPPER 3M7N675005 3M7N67500-5 NISSAN $0.00 1 Sold Out View More Details
(16-1) TILT HANDLE 3M2S675210 3M2S67521-0 $43.48 1
(16-2) NUT 9301030600M 930113-0600 OR 930113-0600 $0.90 4
(16-3) SPRING WASHER 9413030600M 941303-0600 $0.90 4
(16-4) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 OR 3C8-66308-0 $1.70 1
(16-5) SEAL RUBBER STARTER 344675030M 344-67503-0 $15.70 1
(16-6) DECAL SET 3M3S878010 3M3S87801-0 TOHATSU $0.00 1 Sold Out View More Details
(16-6) DECAL SET 3M6N878015 3M6N87801-5 NISSAN $0.00 1 Sold Out View More Details
(16-7) TOP COWL SEAL 3F3675010M 3F3-67501-0 $37.96 1 Sold Out View More Details
(17) LABEL SPARK PLUG 332720250 332-72025-0 $0.00 1 Sold Out View More Details
(17) LABEL SPARK PLUG (RESISTANCE) 361720260M 361-72026-0 $1.36 1
