12. REVERSE LOCK

Click Here for Microfiche Usage Tip

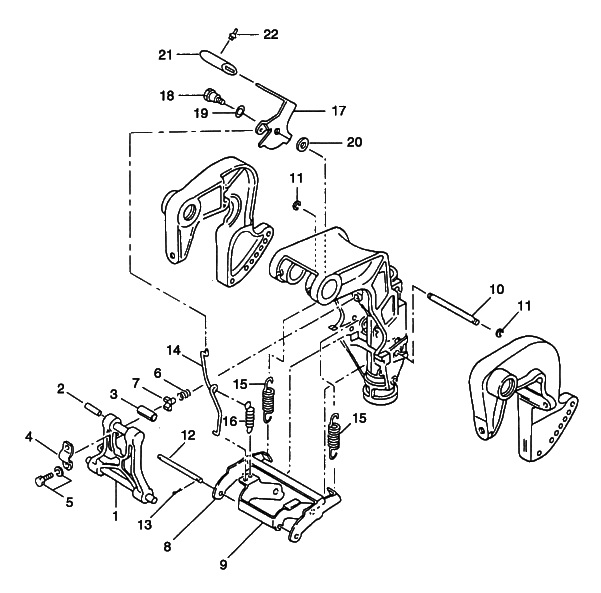

(1) TILT STOPPER(2) SPRING PIN, 5-35(3) BUSHING, 8.2-10-26.5(4) SET PLATE, TILT STOPPER(5) BOLT(6) FRICTION SPRING, TILT STOPPER(7) SET PIECE(8) REVERSE LOCK "A"(9) ARM, REVERSE LOCK(10) SHAFT, REVERSE LOCK "A"(11) E-RING, D=6(11) E-RING, D=6(12) ROD, REVERSE LOCK "A"(13) SPLIT PIN, 2-12(14) LINK, REVERSE LOCK "A"(15) SPRING, REVERSE LOCK(15) SPRING, REVERSE LOCK(16) SPRING, REVERSE LOCK LINK(17) LEVER, REVERSE LOCK LINK(18) SHAFT, REVERSE LOCK LEVER(19) WAVE WASHER, D=8(20) WASHER, 6-16-1.5(21) GRIP, REVERSE LOCK LEVER(22) STOPPER, GRIP



Parts List
2003 :: 15 HP :: 2 Stroke Tohatsu M15D2 :: REVERSE LOCK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TILT STOPPER 3G2S624310 3G2S62431-0 $32.39 1
(2) SPRING PIN 5-35 9514030535M 951403-0535 $1.18 1
(3) BUSHING 8.2-10-26.5 350624370M 350-62437-0 $1.55 1
(4) SET PLATE TILT STOPPER 350624390M 350624390M $5.29 1
(5) BOLT 9101135818M 910113-5818 $0.00 2 Sold Out View More Details
(6) SPRING FRICTION TILT STOPPER 3C8624211M 3C8-62421-1 $2.42 1
(7) SET PIECE TILT STOPPER 346624380M 346-62438-0 $1.41 1
(8) REVERSE LOCK A 3G2663510M 3G2-66351-0 $19.87 1
(9) REVERSE LOCK ARM 3G2663131M 3G2-66313-1 $16.85 1
(10) REVERSE LOCK SHAFT A 3G2663191M 3G2-66319-1 $6.62 1
(11) E-RING D=6 9453030600M 945303-0600 $0.83 2
(12) REVERSE LOCK ROD A 3G2663210M 3G2-66321-0 $4.44 1
(13) SPLIT PIN 2-12 9515030212M 951503-0212 $0.97 1
(14) REVERSE LOCK LINK A 3G2663120M 3G2-66312-0 $5.58 1
(15) REVERSE LOCK SPRING 3G2663310M 3G2-66331-0 $8.97 2
(16) REVERSE LOCK LINK SPRING 350663150M 350-66315-0 $2.63 1
(17) REVERSE LOCK LINK LEVER 3G2663110M 3G2-66311-0 $20.93 1
(18) REVERSE LOCK LEVER SHAFT 3V9052540M 3V9-05254-0 $10.03 1
(19) WAVE WASHER D=8 9414030800M 941403-0800 $0.90 1
(20) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(21) GRIP LOCK LEVER 346663330M 346-66333-0 $4.83 1
(22) STOPPER LEVER GRIP 346663340M 346-66334-0 $1.27 1
