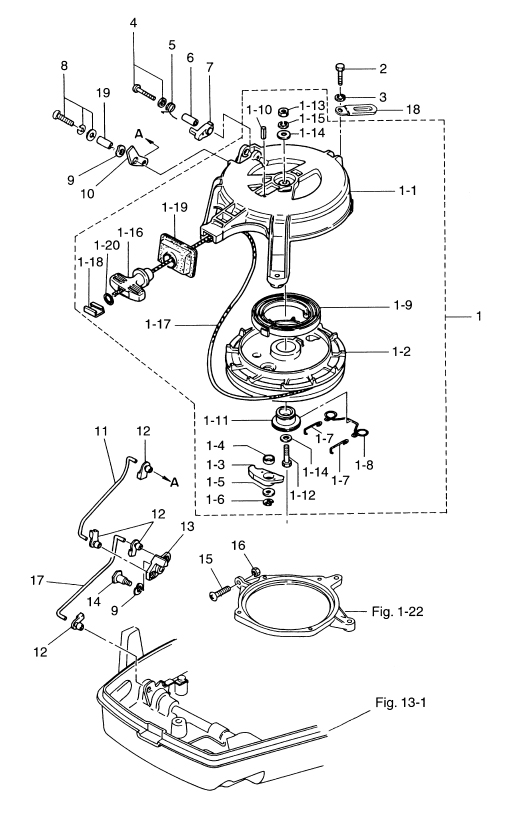

7. RECOIL STARTER & STARTER LOCK

Click Here for Microfiche Usage Tip
(1) RECOIL STARTER(1-1) STARTER CASE(1-2) REEL(1-3) RATCHET(1-4) BUSHING, RATCHET(1-5) WASHER, 6.5-21-1(1-6) E-RING, D=5(1-7) RATCHET GUIDE "A"(1-7) RATCHET GUIDE "A"(1-8) RATCHET GUIDE "B"(1-9) STARTER SPRING(1-10) SPRING PIN, 3-16(1-11) STARTER SHAFT(1-12) BOLT(1-13) NUT(1-14) WASHER(1-14) WASHER(1-15) SPRING WASHER(1-16) STARTER HANDLE(1-17) STARTER ROPE(1-18) ROPE ANCHOR(1-19) SEAL PLATE, STARTER(1-20) O-RING, 2.5-4.5(2) BOLT(3) SPRING WASHER(4) SCREW(5) SPRING, STARTER LOCK(6) COLLAR, 4-6-21(7) STARTER LOCK(8) SCREW(9) WAVE WASHER, D=8(9) WAVE WASHER, D=8(10) CAM, STARTER LOCK(11) LOCK LINK, STARTER(12) ROD SNAP, 3.5-2(12) ROD SNAP, 3.5-2(12) ROD SNAP, 3.5-2(13) THROTTLE STOPPER(14) SHAFT, THROTTLE STOPPER(15) SCREW(16) NUT(17) STOPPER LINK, THROTTLE(18) CLAMP, 6.5-47.5P(19) COLLAR, 6.1-8-4



Parts List
2003 :: 15 HP :: 2 Stroke Tohatsu M15D2 :: RECOIL STARTER & STARTER LOCK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RECOIL STARTER 350050000M 350-05000-0 $220.25 1
(1-1) STARTER CASE 350051050M 350-05105-0 $71.01 1
(1-2) REEL 350051041M 350-05104-1 $50.61 1
(1-3) RATCHET 345050031M 345-05003-1 $6.90 1
(1-4) BUSHING RATCHET 345051351M 345-05135-1 $2.07 1
(1-5) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 1
(1-6) E-RING D=5 9453030500M 945303-0500 $0.86 1
(1-7) RATCHET GUIDE A 350051230M 350-05123-0 $2.13 2
(1-8) RATCHET GUIDE B 350051240M 350-05124-0 $4.38 1
(1-9) STARTER SPRING 345050040M 345-05004-0 $25.33 1
(1-10) SPRING PIN 3-16 9514030316M 951403-0316 $0.83 1
(1-11) STARTER SHAFT 350051320M 350-05132-0 $25.33 1
(1-12) BOLT 9101140635M 910114-0635 $1.06 1
(1-13) NUT 9301030600M 930113-0600 OR 910113-0600 $0.84 1
(1-14) WASHER 9401210600M 940121-0600 OR 940113-0600 $0.86 2
(1-15) SPRING WASHER 9413220600M 941322-0600 $0.35 1
(1-16) STARTER HANDLE 338050190M 338-05019-0 $8.29 1
(1-17) STARTER ROPE 350050131M 350-05013-1 ø 5 X 1600 $13.51 1
(1-18) ROPE ANCHOR 338051310M 338-05131-0 $2.56 1
(1-19) SEAL PLATE STARTER 350051160M 350-05116-0 $34.51 1
(1-20) O-RING 2.5-4.5 350051360M 350-05136-0 $0.90 1
(2) BOLT 9101140630M 910114-0630 $1.21 3
(3) SPRING WASHER 9413030600M 941303-0600 $0.84 3
(4) SCREW 9215035430M 921503-5430 $0.93 1
(5) SPRING STARTER LOCK 338052160M 338-05216-0 $1.27 1
(6) COLLAR 4- 6- 21 338052550M 338-05255-0 $1.85 1
(7) STARTER LOCK 338052520M 338-05252-0 $3.27 1
(8) SCREW 9215037616M 921503-7616 $1.36 1
(9) WAVE WASHER D=8 9414030800M 941403-0800 $0.90 2
(10) CAM STARTER LOCK 350052530M 350-05253-0 $1.30 1
(11) LOCK LINK STARTER 350052170M 350-05217-0 $3.74 1
(12) ROD SNAP 3.5-2 345052231M 345-05223-1 $1.45 4
(13) THROTTLE STOPPER 350052110M 350-05211-0 $2.70 1
(14) SHAFT THROTTLE STOPPER 350052270M 350-05227-0 $14.33 1
(15) SCREW 9215060525M 921506-0525 $0.90 1
(16) NUT 9301060500M 930106-0500 $0.86 1
(17) STOPPER LINK THROTTLE 350052220M 350-05222-0 $4.40 1 Sold Out View More Details
(18) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(19) COLLAR 6.1-8-4 3M2052150M 3M2-05215-0 $1.30 1
