5. MAGNETO

Click Here for Microfiche Usage Tip

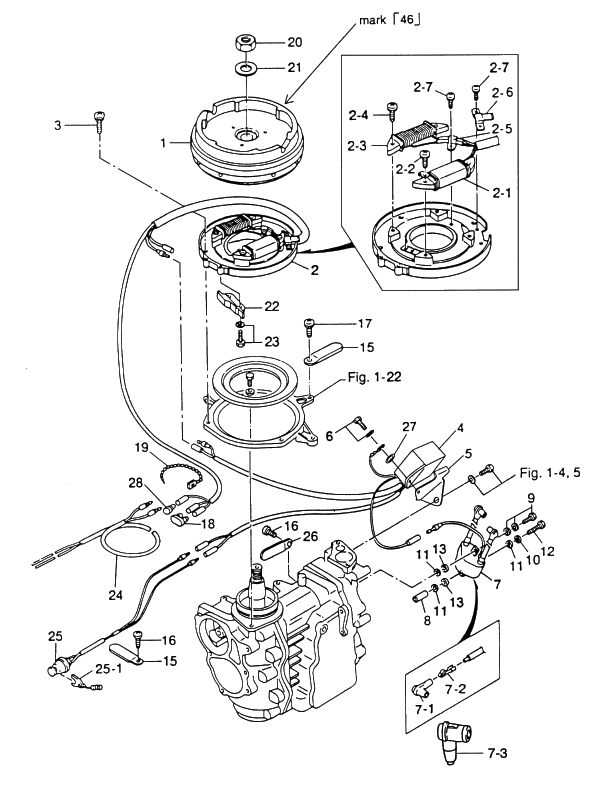

(1) FLYWHEEL CUP(2) COIL PLATE ASSY(2-1) EXCITER COIL(2-2) SCREW(2-3) ALTERNATOR SET(2-4) SCREW(2-5) HOLDER, ALTERNATOR CORD(2-6) HOLDER, MAGNETO CORD(2-7) SCREW(2-7) SCREW(3) SCREW(4) C.D. UNIT(5) BRACKET, C.D. UNIT(6) BOLT(7) IGNITION COIL (WITH RESISTANCE CAP)(7-1) PLUG CAP(7-2) TERMINAL, PLUG CAP(7-3) PLUG CAP ( WITH RESISTANCE)(8) SPACER, 6-8-28.5(9) BOLT(10) SPRING WASHER(11) WASHER(11) WASHER(11) WASHER(12) BOLT(13) GASKET, 6.2-11-1(13) GASKET, 6.2-11-1(15) CLAMP, 6.5-47.5P(15) CLAMP, 6.5-47.5P(16) SCREW(16) SCREW(17) SCREW(18) PLUG, CABLE TERMINAL(19) BAND, LEAD WIRE(20) NUT, MAGNETO (16P-1.5)(21) WASHER, 17-30-1.6(22) THROTTLE CAM(23) BOLT(24) EXTENSION CORD(25) LANYARD STOP SWITCH(25-1) LOCK, LANYARD STOP SWITCH(26) CLAMP, 6.5-67P(27) WASHER, 6-16-1.5(28) PLUG "B", CABLE TERMINAL



Parts List
2003 :: 15 HP :: 2 Stroke Tohatsu M15D2 :: MAGNETO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL CUP 3G2060011M 3G2-06001-1 FF5114 MARKE [46] / 18E2/15D2/9.9D2~ $0.00 1 Sold Out View More Details
(2) COIL PLATE ASSY 3G2060021M 3G2-06002-1 18E2/15D2/9.9D2~ $418.52 1
(2-1) EXCITER COIL 3G3060211M 3G3-06021-1 18E2/15D2/9.9D2~ $77.11 1
(2-2) SCREW 9215216524M 921521-6524 $0.55 2
(2-3) ALTERNATOR SET 3G2060231M 3G2-06023-1 18E2/15D2/9.9D2~ $55.07 1
(2-4) SCREW 9215216530M 921521-6530 $0.00 2 Sold Out View More Details
(2-5) HOLDER ALTERNATOR CORD 3G2060251M 3G2-06025-1 $0.00 1 Sold Out View More Details
(2-6) HOLDER MAGNETO CORD 350060250M 350-06025-0 $1.61 1
(2-7) SCREW 9215216406M 921521-6406 $1.99 3
(3) SCREW 9215216510M 921521-6510 $0.44 4
(4) C.D. UNIT 3G2060602M 3G2-06060-2 CU 2556 / 18E2/15D2/9.9D2~ $165.75 1
(5) BRACKET C.D. UNIT 3G2060610M 3G2-06061-0 18E2/15D2/9.9D2~ $0.00 1 Sold Out View More Details
(6) BOLT 9101135612M 910113-5612 OR 910103-5612 $1.07 1
(7) IGNITION COIL (WITH RESISTANCE CAP) 3G2060402M 3G2-06040-2 $58.75 1
(7-1) PLUG CAP 3M2069210M 3M2069210M $9.66 2
(7-2) TERMINAL PLUG CAP 3M2069260M 3M2-06926-0 $5.58 2
(7-3) PLUG CAP ( WITH RESISTANCE) 3C7069210M 3C7-06921-0 $5.66 2
(8) SPACER 6-8-28.5 128026051M 128-02605-1 $2.31 1
(9) BOLT 9101037625M 9101037625M $1.29 1
(10) SPRING WASHER 9413030600M 941303-0600 $0.84 1
(11) WASHER 9401030600M 940103-0600 OR 940113-0600 $0.70 3
(12) BOLT 9101030655M 910103-0655 $1.41 1
(13) GASKET 6.2-11-1 151331590M 151-33159-0 $1.93 2
(15) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 2
(16) SCREW 9215030610M 921503-0610 OR 921513-0610 $0.90 2
(17) SCREW 9225216510M 922521-6510 $0.52 1
(18) CABLE TERMINAL PLUG 353760370M 353-76037-0 $2.53 1
(19) LEAD WIRE BAND 336760910M 336-76091-0 $1.01 1
(20) NUT MAGNETO (16P-1.5) 334001320M 334-00132-0 $0.00 1 Sold Out View More Details
(21) WASHER 17-30-1.6 334001330M 334-00133-0 $1.61 1
(22) THROTTLE CAM 3M3637180M 3M3-63718-0 18E2/15D2~ $13.29 1
(23) BOLT 9101035514M 910103-5514 $0.90 2
(24) EXTENSION CORD LIGHT 369761670M 369-76167-0 OPTION $10.59 1
(25) STOP SWITCH 398068300M 398-06830-0 $48.44 1
(25-1) STOP SWITCH LANYARD 353068210M 353-06821-0 $16.48 1 Sold Out View More Details
(26) CLAMP 6.5-67P 398069720M 398-06972-0 $2.31 1
(27) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 OR 3C8-66308-0 $1.59 1 Sold Out View More Details
(28) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 $1.50 1
