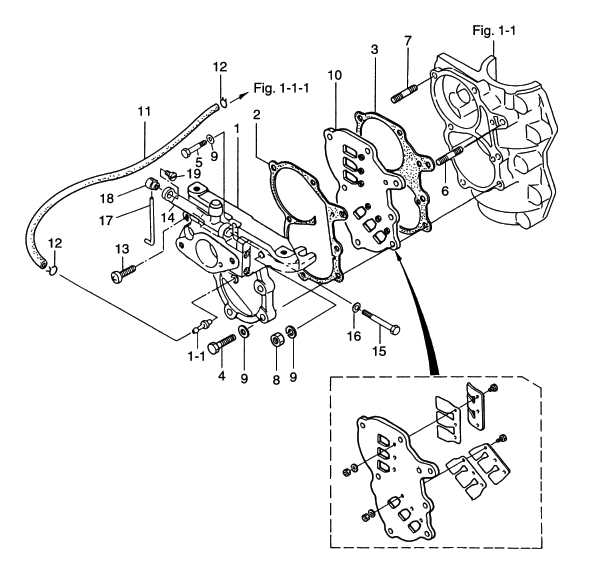

3. INLET - REED VALVE

Click Here for Microfiche Usage Tip
(1) INLET MANIFOLD(1-1) NIPPLE, 4.8-5(2) GASKET "A", INLET MANIFOLD(3) GASKET "B", INLET MANIFOLD(4) BOLT(5) BOLT(6) STUD BOLT(7) STUD BOLT(8) NUT(9) WASHER(9) WASHER(9) WASHER(10) REED VALVE ASSY(11) LUBRICATION PIPE(12) CLIP o 7(12) CLIP o 7(13) SCREW(14) THROTTLE ARM (WITH ROLLER)(15) BOLT(16) SPRING WASHER(17) ROD(18) END, THROTTLE LEVER(19) SCREW



Parts List
2003 :: 15 HP :: 2 Stroke Tohatsu M15D2 :: INLET - REED VALVE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) INLET MANIFOLD 3M2B020100 3M2B02010-0 18E#88700~ / 15D#39018~ / 9.9D#71413~ $56.52 1 Sold Out View More Details
(1-1) NIPPLE 4.8-5 338011311M 338-01131-1 $3.00 1
(2) GASKET A INLET MANIFOLD 350021040M 350-02104-0 $4.23 1
(3) GASKET B INLET MANIFOLD 350021051M 350-02105-1 $5.53 1
(4) BOLT 9161240628M 916124-0628 $1.20 4
(5) BOLT 9161240635M 916124-0635 OR 916114-0635 $1.02 1
(6) STUD BOLT 9153240625M 915324-0625 $2.74 1
(7) STUD BOLT 9153240630M 915324-0630 $2.19 1
(8) NUT 9301210600M 930121-0600 $0.86 2
(9) WASHER 9401210600M 940121-0600 $0.86 7
(10) REED VALVE ASSY 362021001M 362-02100-1 $94.31 1
(11) RUBBER HOSE 98AB31000M 98AB31000M $10.72 1
(12) CLIP ø 7 338011330M 338-01133-0 $1.04 2
(13) SCREW 9215210620M 921521-0620 $0.00 1 Sold Out View More Details
(14) THROTTLE ARM (WITH ROLLER) 3M2031720M 3M2-03172-0 18E#88700~ / 15D#39018~ / 9.9D#71413~ $10.70 1
(15) BOLT 9161030550M 916103-0550 $1.64 1
(16) SPRING WASHER 9413030500M 941303-0500 $0.90 1
(17) ROD 350031740M 350-03174-0 $2.40 1
(18) END THROTTLE LEVER 350031760M 350-03176-0 $5.07 1
(19) SCREW 350031780M 350-03178-0 $1.45 1
