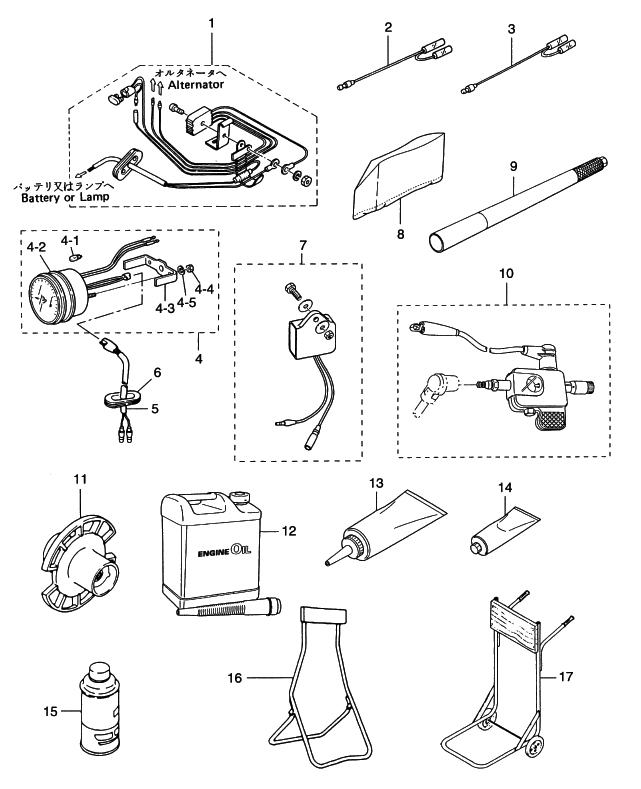

18. OPTIONAL PARTS & ACCESSORIES

Click Here for Microfiche Usage Tip
(1) RECTIFIER KIT(2) SEPARATE CORD (WHITE)(3) SEPARATE CORD (YELLOW)(4) TACHOMETER(4-1) BULB, METER 12V-1.7W(4-2) DAMPER, METER(4-3) FITTING PLATE(4-4) NUT(4-5) SPRING WASHER(5) LEAD WIRE, TACHOMETER(6) GROMMET, CORD(7) TACHOMETER UNIT KIT(8) VINYL MOTOR COVER (M)(9) LONG HANDLE 0.8M(9) LONG HANDLE 1.0M(10) SPARK TESTER(11) TEST PROPELLER(12) TOHATSU PREMIUM TCW3 OIL (12-PINTS)(12) TOHATSU PREMIUM TCW3 OIL (12-QUARTS)(12) TOHATSU PREMIUM TCW3 OIL (4-GALLONS)(12) TOHATSU PREMIUM TCW3 OIL (55 GALLON DRUM)(12) NISSAN PREMIUM TCW3 OIL (12-PINTS)(12) NISSAN PREMIUM TCW3 OIL (12-QUARTS)(12) NISSAN PREMIUM TCW3 OIL (4-GALLONS)(13) TOHATSU GEAR LUBE (12-QUARTS)(13) TOHATSU GEAR LUBE (5 GAL PAIL)(13) TOHATSU GEAR LUBE (16 GAL DRUM)(13) NISSAN GEAR LUBE (12-QUARTS)(13) NISSAN GEAR LUBE (5 GAL PAIL)(13) NISSAN GEAR LUBE (16 GAL DRUM)(14) TOHATSU GREASE (10-14 OZ. CARTRIDGE)(14) NISSAN GREASE (10-14 OZ. CARTRIDGE)(15) TOUCH-UP PAINT (SILVER GRAY)(16) STAND(17) CART



Parts List
2003 :: 15 HP :: 2 Stroke Nissan NS15D2 :: OPTIONAL PARTS & ACCESSORIES
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RECTIFIER KIT 346761602M 346-76160-2 $94.25 1
(2) SEPARATE CORD (WHITE) 361725420M 361-72542-0 $8.17 1
(3) SEPARATE CORD (YELLOW) 361725430M 361-72543-0 $4.40 1
(4) TACHOMETER (WITHOUT OIL LAMP) 3B7725301M 3B7-72530-1 UNIQUE $0.00 1 Sold Out View More Details
(4-1) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 $0.00 1 Sold Out View More Details
(4-2) METER DAMPER 3B7726560M 3B7-72656-0 $3.27 1
(4-3) FITTING PLATE 3B7726610M 3B7-72661-0 $25.33 1
(4-4) NUT 9302030500M 930203-0500 $0.60 2
(4-5) SPRING WASHER 9413030500M 941303-0500 $0.90 2
(5) TACHOMETER LEAD CABLE 361725390M 361-72539-0 $50.65 1
(6) GROMMET CORD 345671690M 345-67169-0 $10.59 1
(7) TACHOMETER UNIT KIT 3P0726790M 3P0-72679-0 18E2/15D2/9.9D2~ $25.86 1
(8) VINYL MOTOR COVER (M) 332723110M 332-72311-0 UNIQUE $0.00 1 Sold Out View More Details
(9) LONG HANDLE 0.8M 3A1630390M 3A1-63039-0 $0.00 1 Sold Out View More Details
(9) LONG HANDLE 1.0M 3A1630380M 3A1-63038-0 $0.00 1 Sold Out View More Details
(10) SPARK TESTER 3F3725400M 3F3-72540-0 $169.88 1
(11) TEST PROPELLER 362641110M 362-64111-0 $290.20 1 Sold Out View More Details
(12) TOHATSU PREMIUM TCW3 OIL (12-PINTS) 332723041M 332723041M PINTS - 12 PER CASE $0.00 1 Sold Out View More Details
(12) TOHATSU PREMIUM TCW3 OIL (12-QUARTS) 332723081M 332723081M QUARTS - 12 PER CASE $145.62 1
(12) TOHATSU PREMIUM TCW3 OIL (4-GALLONS) 332723051M 332723051M GALLONS - 4 PER CASE $1,678.23 1 Sold Out View More Details
(12) TOHATSU PREMIUM TCW3 OIL (55 GALLON DRUM) 332723061M 332723061M 55 GALLON DRUM $163.62 1
(12) NISSAN PREMIUM TCW3 OIL (12-PINTS) 332723011M 332723011M PINTS - 12 PER CASE $0.00 1 Sold Out View More Details
(12) NISSAN PREMIUM TCW3 OIL (12-QUARTS) 332723071M 332723071M QUARTS - 12 PER CASE $1,678.23 1 Sold Out View More Details
(12) NISSAN PREMIUM TCW3 OIL (4-GALLONS) 332723021M 332723021M GALLONS - 4 PER CASE $163.62 1
(13) TOHATSU GEAR LUBE (12-QUARTS) 332823100M 332823100M QUARTS - 12 PER CASE $140.48 1
(13) TOHATSU GEAR LUBE (5 GAL PAIL) 332823120M 332823120M 5 GALLON PAIL $200.25 1
(13) TOHATSU GEAR LUBE (16 GAL DRUM) 332823140M 332823140M 16 GALLON DRUM $0.00 1 Sold Out View More Details
(13) NISSAN GEAR LUBE (12-QUARTS) 332823090M 332823090M QUARTS - 12 PER CASE $140.48 1
(13) NISSAN GEAR LUBE (5 GAL PAIL) 332823110M 332823110M 5 GALLON PAIL $200.25 1
(13) NISSAN GEAR LUBE (16 GAL DRUM) 332823130M 332823130M 16 GALLON DRUM $0.00 1 Sold Out View More Details
(14) TOHATSU GREASE (10-14 OZ. CARTRIDGE) 332823180M 332823180M 14OZ. CARTRIDGES - 10 PER CASE $89.08 1
(14) NISSAN GREASE (10-14 OZ. CARTRIDGE) 332823170M 332823170M 14OZ. CARTRIDGES - 10 PER CASE $89.08 1
(15) TOUCH-UP PAINT (SILVER GRAY) 3B7723260M 3B7-72326-0 N.A.F.N. $0.00 1 Sold Out View More Details
(16) STAND 332724020M 332-72402-0 $0.00 1 Sold Out View More Details
(17) CART 332724010M 332-72401-0 $0.00 1 Sold Out View More Details
