4. CARBURETOR - FUEL FILTER

Click Here for Microfiche Usage Tip

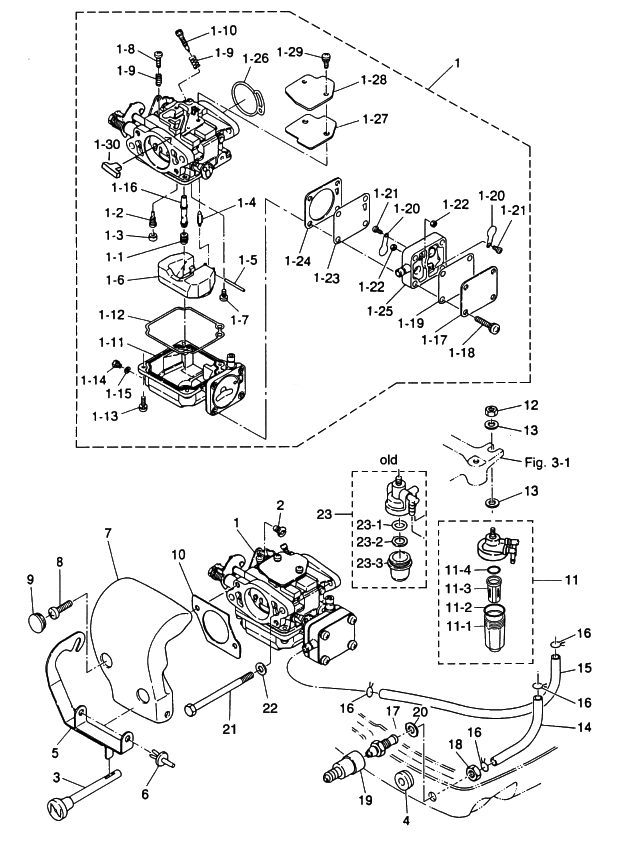

(1) CARBURETOR(1) CARBURETOR(1-1) MAIN JET # 110(1-2) SLOW JET # 80(1-3) PLUG(1-4) FLOAT VALVE(1-5) ARM PIN, FLOAT(1-6) FLOAT(1-7) SCREW(1-8) STOP SCREW(1-9) SPRING(1-9) SPRING(1-10) ADJUST SCREW(1-11) FLOAT CHAMBER(1-12) GASKET(1-13) SCREW(1-14) DRAIN SCREW(1-15) GASKET(1-16) MAIN NOZZLE(1-17) PUMP COVER(1-18) SCREW(1-19) GASKET, PUMP COVER(1-20) CHECK VALVE(1-20) CHECK VALVE(1-21) SCREW(1-21) SCREW(1-22) NUT(1-22) NUT(1-23) DIAPHRAGM, PUMP(1-24) GASKET, PUMP BODY(1-25) PUMP BODY(1-26) O-RING(1-27) GASKET, CARBURETOR COVER(1-28) CARBURETOR COVER(1-29) SCREW(1-30) GROMMET(2) ROD SNAP, 3.4-1.6(3) CHOKE ROD(4) BUSHING, CHOKE ROD(5) CHOKE LEVER(6) PLASTIC RIVET, 6.5(7) AIR SILENCER(8) SCREW(9) GROMMET,17-2.7(10) GASKET, AIR SILENCER(11) FUEL FILTER(11-1) CAP(11-2) O-RING "A"(11-3) FILTER(11-4) O-RING "B"(12) NUT(13) WASHER, 8.1-16-1.5(13) WASHER, 8.1-16-1.5(14) FUEL PIPE(15) FUEL PIPE(16) CLIP o 10(16) CLIP o 10(16) CLIP o 10(16) CLIP o 10(17) FUEL CONNECTOR (ENGINE SIDE, MALE)(18) NUT,10-P1.25(19) FUEL CONNECTOR (ENGINE SIDE, FEMALE)(20) GASKET,10.2-16-0.5(21) BOLT(22) WASHER(23) FUEL FILTER(23-1) FILTER(23-2) GASKET "A"(23-3) CAP



Parts List
2003 :: 15 HP :: 2 Stroke Nissan NS15D2 :: CARBURETOR - FUEL FILTER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CARBURETOR 3G2031003M 3G2-03100-3 3G22 / 18E2/15D2/9.9D2 $248.54 1 Sold Out View More Details
(1-1) MAIN JET # 110 3M2031510M 3M2-03151-0 18E2/15D2/9.9D2 $5.41 1
(1-2) SLOW JET # 80 3M2031520M 3M2-03152-0 18E2/15D2/9.9D2 $11.14 1
(1-3) PLUG 3C8031690M 3C8-03169-0 $2.31 1
(1-4) FLOAT VALVE 3E3031470M 3E3-03147-0 $13.25 1
(1-5) FLOAT ARM PIN 3C8031260M 3C8-03126-0 $2.39 1
(1-6) FLOAT 3C8031250M 3C8-03125-0 $14.32 1
(1-7) SCREW 9217220410M 921722-0410 $0.52 1
(1-8) STOP SCREW 3C8031790M 3C8-03179-0 $5.07 1
(1-9) SPRING 3C8031510M 3C8-03151-0 $4.74 2
(1-10) ADJUST SCREW 3G2031560M 3G2-03156-0 $7.59 1
(1-11) FLOAT CHAMBER 3G2031200M 3G2-03120-0 $34.51 1
(1-12) GASKET CARBURETOR 3C8031210M 3C8-03121-0 $4.40 1
(1-13) SCREW 9225320412M 922532-0412 $1.27 4 Sold Out View More Details
(1-14) DRAIN SCREW 9103320405M 910332-0405 $5.11 1
(1-15) GASKET 3C8031930M 3C8-03193-0 $3.05 1
(1-16) MAIN NOZZLE 3M2031410M 3M2-03141-0 18E2/15D2/9.9D2 $15.46 1
(1-17) PUMP COVER 3G2040040M 3G2-04004-0 $9.46 1
(1-18) SCREW 9225316525M 922531-6525 $5.29 4
(1-19) GASKET PUMP COVER 3C8040180M 3C8-04018-0 $4.00 1
(1-20) CHECK VALVE 350040140M 350-04014-0 $3.74 2
(1-21) SCREW 9217030305M 921703-0305 $0.90 2
(1-22) NUT 9302030300M 930203-0300 $1.25 2
(1-23) DIAPHRAGM PUMP 350040050M 350-04005-0 $13.25 1
(1-24) GASKET PUMP BODY 3C8040280M 3C8-04028-0 $3.87 1
(1-25) PUMP BODY 3C8040020M 3C8-04002-0 $11.96 1
(1-26) PACKING CARBURETOR 3C8020110M 3C8-02011-0 $3.00 1
(1-27) GASKET CARBURETOR 3C8031820M 3C8-03182-0 $4.38 1
(1-28) CARBURETOR COVER 3C8031810M 3C8-03181-0 $6.90 1
(1-29) SCREW 9225226410M 922522-6410 $1.79 2
(1-30) GROMMET 3C8031830M 3C8-03183-0 $4.93 1
(2) ROD SNAP 3.4-1.6 3G2671960M 3G2-67196-0 $1.41 1
(3) CHOKE ROD 3G2671511M 3G2-67151-1 $3.98 1 Sold Out View More Details
(4) BUSHING CHOKE ROD 350671040M 350-67104-0 $1.66 1
(5) CHOKE LEVER 3G2671520M 3G2-67152-0 $10.81 1
(6) PLASTIC RIVET 6.5 350671540M 350-67154-0 $1.85 2
(7) AIR SILENCER 3G2024110M 3G2-02411-0 $19.33 1
(8) SCREW 9225530512M 922553-0512 18E2#11354~ / 15D2#46558~ / 9.9D2#83739~ $1.27 2
(9) GROMMET 17-2.7 345671170M 345-67117-0 $2.31 2 Sold Out View More Details
(10) GASKET AIR SILENCER 3G2024140M 3G2-02414-0 $2.91 1
(11) FUEL FILTER 3B7022300M 3B7-02230-0 $27.66 1
(11-1) CUP 3B7022370M 3B7-02237-0 $7.34 1
(11-2) O-RING A 3B7022350M 3B7-02235-0 $2.56 1
(11-3) FILTER 3B7022340M 3B7-02234-0 $6.59 1
(11-4) O-RING B 3B7022360M 3B7-02236-0 $1.45 1
(12) NUT 9301060800M 930106-0800 $1.99 1 Sold Out View More Details
(13) WASHER 8.1 -16 -1.5 3P0662330M 3P0-66233-0 $1.29 2
(14) RUBBER HOSE 98AB51000M 98AB51000M OLD 98AB-5-0200 $11.41 1
(15) RUBBER HOSE 98AB51000M 98AB51000M OLD 98AB-5-0215 $11.41 1
(16) CLIP ø10 338022150M 338-02215-0 $1.41 4
(17) FUEL CONNECTOR (ENGINE MALE) 3B2702601M 3B2-70260-1 $16.97 1
(18) NUT 10-P 1.25 332702610M 332-70261-0 $2.58 1
(19) FUEL CONNECTOR (ENGINE SIDE FEMALE) 3B2702501M 3B2-70250-1 $21.46 1
(20) GASKET 10.2-16-0.5 336701120M 336-70112-0 $1.55 1
(21) BOLT 9161030680M 916103-0680 $2.22 2
(22) WASHER 9401130600M 940113-0600 OR 910103-0600 $0.83 2
(23) FUEL FILTER 346022300M 346-02230-0 OLD $21.10 1
(23-1) FILTER 346022340M 346-02234-0 OLD $2.31 1
(23-2) GASKET A 346022350M 346-02235-0 OLD $3.64 1
(23-3) CAP 346022370M 346-02237-0 OLD $12.61 1
