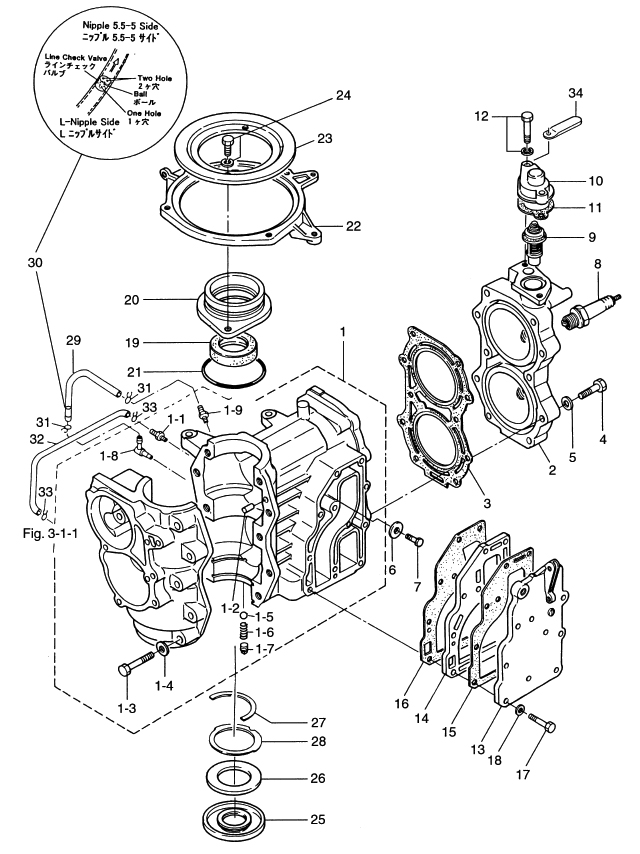

1. CYLINDER - CRANK CASE ASSEMBLY

Click Here for Microfiche Usage Tip
(1) CYLINDER, CRANK CASE(1-1) NIPPLE, 4.8-5(1-2) KNOCK, 6-12(1-3) BOLT(1-4) WASHER(1-5) NYLON BALL, 3/16(1-6) SPRING, CHECK VALVE(1-7) SEALING, PLUG, 4.9-4(1-8) L-NIPPLE (NEW)(1-8) CHECK VALVE NIPPLE (OLD)(1-9) NIPPLE, 5.5-5(2) CYLINDER HEAD(3) GASKET, CYLINDER HEAD(4) BOLT(5) WASHER(6) ANODE(7) BOLT(8) SPARK PLUG(8) SPARK PLUG ( WITH RESISTANCE)(9) THERMOSTAT(10) CAP, THERMOSTAT(11) GASKET, THERMOSTAT CAP(12) BOLT(13) EXHAUST COVER, OUTER(14) EXHAUST COVER, INNER(15) OUTER GASKET(16) INNER GASKET(17) BOLT(18) WASHER(19) OIL SEAL, 25-45-8(20) MAGNETO BASE(21) O-RING, 2-55.5(22) SET RING(23) GUIDE PLATE(24) BOLT(25) OIL SEAL, 25-62-9.5(26) RING, OIL SEAL LOWER(27) THRUST PLATE UPPER, CRANK SHAFT(28) THRUST PLATE LOWER, CRANK SHAFT(29) LUBRICATION PIPE(30) LINE CHECK VALVE(31) CLIP o 8(31) CLIP o 8(32) LUBRICATION PIPE(33) CLIP o 7(33) CLIP o 7(34) CLAMP, 6.5-67P



Parts List
2003 :: 9.9 HP :: 2 Stroke Tohatsu M9.9D2 :: CYLINDER - CRANK CASE ASSEMBLY
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYLINDER CRANK CASE 3G2B011001 3G2B011001 15D2 # 44381~ / 9.9D2 # 80077~ $881.04 1 Sold Out View More Details
(1-1) NIPPLE 4.8-5 338011311M 338-01131-1 $3.00 1
(1-2) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(1-3) BOLT 9101240845M 910124-0845 $0.00 10 Sold Out View More Details
(1-4) WASHER 9401210800M 940121-0800 $0.37 10
(1-5) NYLON BALL 3/16 332011211M 332-01121-1 $1.85 1
(1-6) SPRING CHECK VALVE 332011220M 332-01122-0 $0.67 1
(1-7) SEALING PLUG 4.9-4 350000630M 350-00063-0 $1.61 1
(1-8) L-NIPPLE (NEW) 393011370M 393-01137-0 18E2#03126~ / 15D2#44381~ / 9.9D2 # 80077~ $4.31 1
(1-8) CHECK VALVE NIPPLE (OLD) 3B2011600M 3B2-01160-0 18E2#03125~ / 15D2#44380~ / 9.9D2 # 80076~ $0.00 1 Sold Out View More Details
(1-9) NIPPLE 5.5-5 393011310M 393-01131-0 18E2#03126~ / 15D2#44381~ / 9.9D2 # 80077~ $3.00 1
(2) CYLINDER HEAD 397B010010 397B01001-0 $110.12 1
(3) GASKET CYLINDER HEAD 351010050M 351-01005-0 $29.65 1
(4) BOLT 9161190840M 916119-0840 $1.93 10
(5) WASHER 9401210800M 940121-0800 $0.37 10
(6) ANODE 338602182M 338-60218-2 $9.20 1
(7) BOLT 9101030616M 910113-0616 OR 910113-0616 $0.98 1
(8) SPARK PLUG ( WITH RESISTANCE) 970101005M 970101005M NGK B7HS-10 $4.64 2
(8) SPARK PLUG ( WITH RESISTANCE) 970101005M 970101005M NGK BR7HS-10 $4.64 2
(9) THERMOSTAT 350010301M 350-01030-1 $33.06 1
(10) THERMOSTAT CAP 3H6B010310M 3H6B01031-0 $10.65 1 Sold Out View More Details
(11) THERMOSTAT CAP GASKET 346010320M 346-01032-0 $1.93 1
(12) BOLT 9101145630M 910114-5630 $1.21 2
(13) EXHAUST COVER OUTER 350B023011 350B02301-1 $38.28 1 Sold Out View More Details
(14) EXHAUST COVER INNER 350B023020 350B02302-0 $43.73 1
(15) OUTER GASKET 350023050M 350-02305-0 $7.36 1
(16) INNER GASKET 350023060M 350-02306-0 $7.46 1
(17) BOLT 9101140625M 910114-0625 OR 910114-5625 $1.04 1
(18) WASHER 9401210600M 940121-0600 $0.86 1
(19) OIL SEAL 25-45-8 350001210M 350-00121-0 $8.52 1
(20) MAGNETO BASE 350014010M 350-01401-0 $0.00 1 Sold Out View More Details
(21) O-RING 2-55.5 338014030M 338-01403-0 $2.31 1
(22) SET RING 350637230M 350-63723-0 $19.83 1
(23) GUIDE PLATE 346637222M 346-63722-2 $21.65 1
(24) BOLT 9101210620M 910121-0620 $0.47 2
(25) OIL SEAL 25-62-9.5 350012155M 350-01215-5 $9.43 1
(26) RING OIL SEAL LOWER 362001280M 362-00128-0 $3.39 1
(27) THRUST PLATE UPPER CRANK SHAFT 350001150M 350-00115-0 $3.27 1
(28) THRUST PLATE LOWER CRANK SHAFT 350001070M 350-00107-0 $3.00 1
(29) LUBRICATION PIPE D 98AL41000M 98AL41000M 18E2#03126~ / 15D2#44381~ / 9.9D2 # 80077~ $8.81 1
(30) LINE CHECK VALVE 393011600M 393-01160-0 18E2#03126~ / 15D2#44381~ / 9.9D2 # 80077~ $4.31 1
(31) CLIP ø 8 3T5011330M 3T5-01133-0 18E2#03126~ / 15D2#44381~ / 9.9D2 # 80077~ $1.44 2
(32) RUBBER HOSE 98AB31000M 98AB31000M $10.72 1
(33) CLIP ø 7 338011330M 338-01133-0 $1.04 2
(34) CLAMP 6.5-67P 398069720M 398-06972-0 $2.31 1
