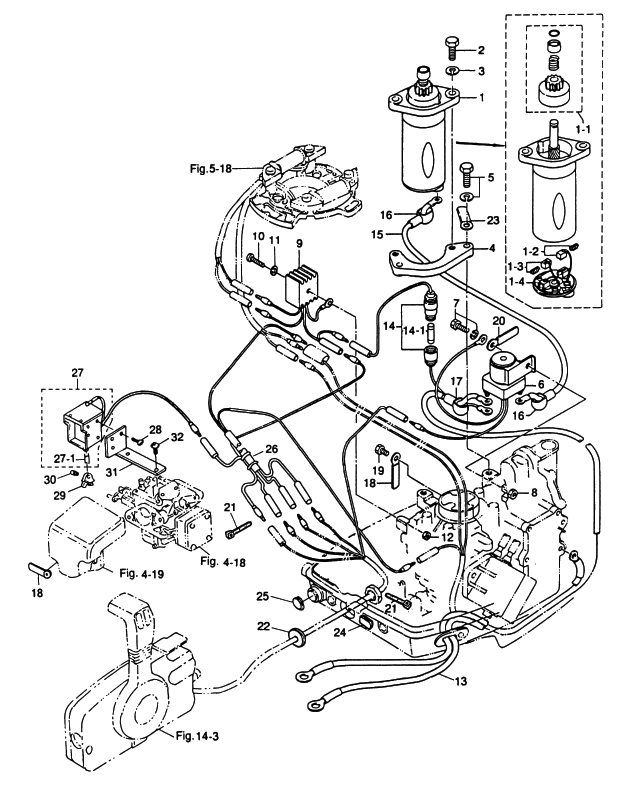

15. ELECTRIC STARTER (P TYPE)

Click Here for Microfiche Usage Tip
(1) STARTER MOTOR(1-1) PINION(1-2) CARBON BRUSH (+) (WITH SPRING)(1-3) CARBON BRUSH (-) (WITH SPRING)(1-4) BRUSH HOLDER(2) BOLT(3) SPRING WASHER(4) BRACKET, STARTER MOTOR(5) BOLT(6) STARTER SOLENOID(7) BOLT(8) NUT(9) RECTIFIER(10) SCREW(11) SPRING WASHER(12) NUT(13) BATTERY CABLE(14) FUSE WIRE(14-1) FUSE (15A)(15) STARTER CORD(16) CAP, CORD(16) CAP, CORD(17) CAP, CORD(18) CLAMP, 6.5-47.5P(18) CLAMP, 6.5-47.5P(19) BOLT(20) CLAMP, 6.5-67P(21) BAND, LEAD WIRE 100(21) BAND, LEAD WIRE 100(22) GROMMET, 16-2.5(23) CLAMP, 9-20U(24) GROMMET, THROTTLE HOLE(25) GROMMET,17-2.7(26) ASSIST CORD(27) CHOKE SOLENOID(27-1) PLUNGER, CHOKE SOLENOID(28) SCREW(29) HOOK, CHOKE SOLENOID(30) SPRING PIN, 3-12(31) BRACKET, CHOKE SOLENOID(32) SCREW



Parts List
2003 :: 9.8 HP :: 2 Stroke Tohatsu M9.8B :: ELECTRIC STARTER (P TYPE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STARTER MOTOR (OLD) 350760100M 350-76010-0 $330.38 1
(1-1) PINION 350760150M 350-76015-0 $127.93 1
(1-2) POSITIVE BRUSH (WITH SPRING) (OLD) 350760120M 350-76012-0 $27.52 1
(1-3) NEGATIVE BRUSH (WITH SPRING) (OLD) 350760130M 350-76013-0 $27.52 1
(1-4) BRUSH HOLDER (OLD) 350760140M 350-76014-0 $66.76 1
(2) BOLT 9161030830M 916103-0830 $2.91 2
(3) SPRING WASHER 9413030800M 941303-0800 $0.79 2
(4) BRACKET STARTER MOTOR 350760110M 350-76011-0 $46.05 1
(5) BOLT 9101036825M 910103-6825 $1.76 2
(6) STARTER SOLENOID 346760400M 346-76040-0 $77.11 1
(7) BOLT 9101036620M 910103-6620 $1.13 1
(8) NUT 9301030600M 930113-0600 OR 910113-0600 $0.84 1
(9) RECTIFIER 3B2760600M 3B2-76060-0 $66.10 1
(10) SCREW 9215030525M 921503-0525 $0.90 1
(11) SPRING WASHER 9413030500M 941303-0500 $0.90 1
(12) NUT 9301030500M 930103-0500 $0.86 1
(13) BATTERY CABLE (L=2000) 3B2761200M 3B2-76120-0 L=2000 $61.59 1
(14) FUSE WIRE 3B2760620M 3B2-76062-0 L=355 $14.70 1
(14-1) FUSE (15A) 346762120M 346-76212-0 $4.26 1
(15) STARTER CABLE 3B2761471M 3B2-76147-1 L=200 $16.50 1
(16) CAP CORD 3A3761450M 3A3-76145-0 $3.39 2
(17) CAP CORD 3B7761450M 3B7-76145-0 $3.39 1
(18) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 2
(19) BOLT 9101140610M 910114-0610 $0.76 1
(20) CLAMP 6.5-67P 398069720M 398-06972-0 $2.31 1
(21) LEAD WIRE BAND 100 353843980M 353-84398-0 $0.84 2
(22) GROMMET 345671930M 345-67193-0 $3.00 1
(23) CLAMP 9-20U 345069171M 345-06917-1 $4.83 1
(24) GROMMET THROTTLE HOLE 3B2636240M 3B2-63624-0 $3.27 1
(25) GROMMET 17-2.7 345671170M 345-67117-0 $2.31 1 Sold Out View More Details
(26) ASSIST CORD 3B2761660M 3B2-76166-0 $21.14 1
(27) CHOKE SOLENOID 361760500M 361-76050-0 $88.09 1
(27-1) PLUNGER 361760730M 361-76073-0 $8.80 1
(28) SCREW 9215036408M 921503-6408 $0.90 3
(29) CHOKE SOLENOID HOOK 346760570M 346-76057-0 $3.00 1
(30) SPRING PIN 3-12 9514030312M 951403-0312 $0.83 1
(31) BRACKET CHOKE SOLENOID 3B2760550M 3B2-76055-0 $7.39 1
(32) SCREW 9215030510M 921503-0510 $0.81 2
