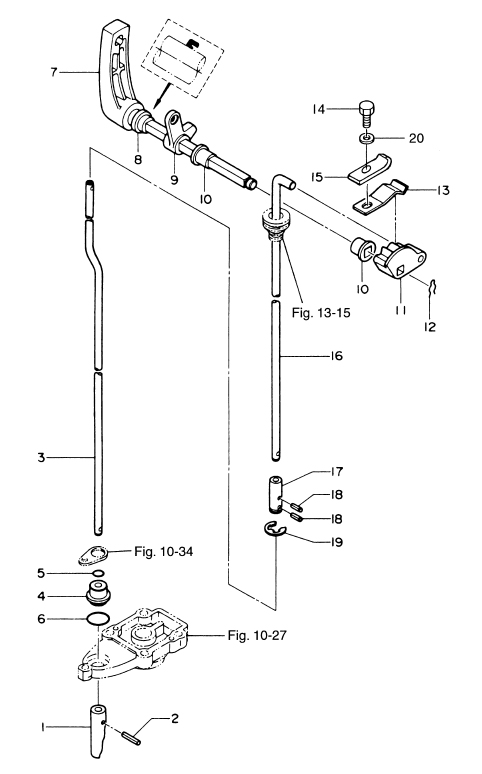

11. GEAR SHIFT

Click Here for Microfiche Usage Tip
(1) CLUTCH CAM(2) SPRING PIN, 3-10(3) CAM ROD "S"(3) CAM ROD "L"(3) CAM ROD "UL"(4) BUSHING, CAM ROD(5) O-RING, 2.5-4.9(6) O-RING, 2.4-15.4(7) SHIFT LEVER(8) OIL SEAL, 14-20-4.5(9) STARTER LOCK LEVER(10) BUSHING, SHIFT LEVER SHAFT(10) BUSHING, SHIFT LEVER SHAFT(11) SHIFT ROD LEVER(12) SNAP RETAINER, D=8(13) STOPPER, SHIFT LEVER(14) BOLT(15) PLATE, SHIFT LEVER STOPPER(16) SHIFT ROD(17) JOINT, SHIFT ROD(18) SPRING PIN, 3-10(19) E-RING, D=10(20) WASHER



Parts List
2003 :: 9.8 HP :: 2 Stroke Tohatsu M9.8B :: GEAR SHIFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLUTCH CAM 369660110M 369-66011-0 $17.77 1
(2) SPRING PIN 3-10 9514030310M 951403-0310 $0.86 1
(3) CAM ROD S 3B2660120M 3B2-66012-0 FOR TRANSOM S $16.10 1
(3) CAM ROD L 3B2660130M 3B2-66013-0 FOR TRANSOM L $17.99 1
(3) CAM ROD UL 3B2660140M 3B2-66014-0 FOR TRANSOM UL $19.09 1
(4) CAM ROD BUSHING 369660310M 369-66031-0 $3.39 1
(5) O-RING 2.5-4.9 369660211M 369-66021-1 $1.27 1
(6) O-RING 2.4-15.4 332660320M 332-66032-0 $1.41 1
(7) SHIFT LEVER 3B2661100M 3B2-66110-0 $23.15 1
(8) OIL SEAL 14-20-4.5 3K9661370M 3K9-66137-0 $2.31 1
(9) STARTER LOCK LEVER 3B2052111M 3B2-05211-1 $3.27 1
(10) SHIFT LEVER SHAFT BUSHING 350671010M 350-67101-0 $2.07 2
(11) SHIFT ROD LEVER 3B2662250M 3B2-66225-0 $5.07 1
(12) SNAP RETAINER D=8 9517030800M 951703-0800 $0.83 1
(13) STOPPER SHIFT LEVER 3C8661120M 3B2-66113-0 8B # 49677~ $1.89 1
(14) BOLT 9101140610M 910114-0610 $0.76 1
(15) SHIFT LEVER STOPPER 3C8661160M 3C8-66116-0 8B # 49677~ $2.53 1
(16) SHIFT ROD 3B2662110M 3B2-66211-0 $15.87 1
(17) JOINT SHIFT ROD 3B2662410M 3B2-66241-0 $5.55 1
(18) SPRING PIN 3-10 9514030310M 951403-0310 $0.86 2
(19) E-RING D=10 9453031000M 9453031000M $1.04 1
(20) WASHER 9401030600M 940103-0600 OR 940113-0600 $0.70 1
