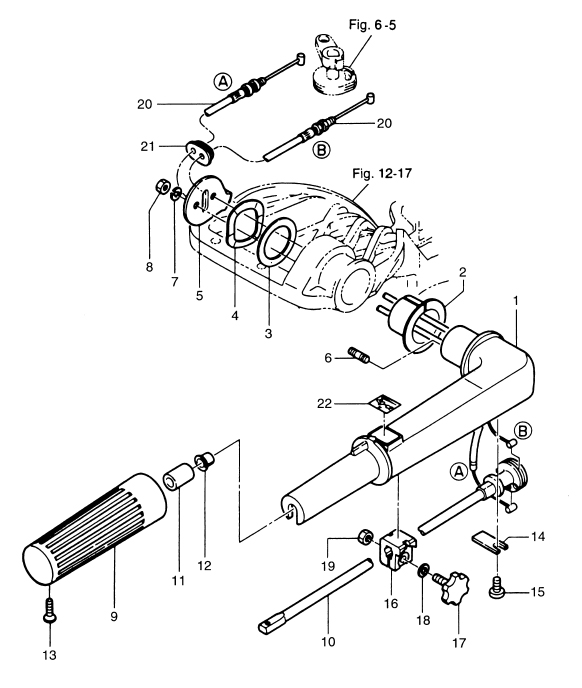

7. TILLER HANDLE (MF/EF TYPE)

Click Here for Microfiche Usage Tip
(1) STEERING HANDLE(2) BUSHING, HANDLE(3) WASHER, 30-45-1(4) WAVE WASHER, 30-45-1.2(5) STOPPER, STEERING HANDLE(6) STUD BOLT(7) SPRING WASHER(8) NUT(9) GRIP(10) THROTTLE SHAFT(11) RUBBER, THROTTLE SHAFT(12) BUSHING, 8.4-10-11(13) SCREW(14) SUPPORTER, THROTTLE SHAFT(15) SCREW(16) FRICTION PIECE, GRIP(17) ADJUST SCREW(18) WASHER(19) NUT(20) THROTTLE CABLE(20) THROTTLE CABLE(21) GROMMET, THROTTLE CABLE(22) LABEL, THROTTLE



Parts List
2003 :: 9.8 HP :: 2 Stroke Tohatsu M9.8B :: TILLER HANDLE (MF/EF TYPE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STEERING HANDLE 3B2S630111 3B2S63011-1 $44.58 1
(2) BUSHING HANDLE 3B2631020M 3B2-63102-0 $4.83 1
(3) WASHER 30-45-1 3B2631080M 3B2-63108-0 $1.41 1
(4) WAVE WASHER 30-45-1.2 3B2631090M 3B2-63109-0 $4.19 1
(5) STOPPER STEERING HANDLE 3B2631030M 3B2-63103-0 $9.46 1
(6) STUD BOLT 3B2631041M 3B2-63104-1 $3.27 2
(7) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(8) NUT 9301030600M 930113-0600 OR 930113-0600 $0.84 2
(9) GRIP 350630120M 350-63012-0 $29.88 1
(10) THROTTLE SHAFT 3B2630410M 3B2-63041-0 $18.64 1
(11) RUBBER THROTTLE SHAFT 345630480M 345-63048-0 $1.85 1
(12) BUSHING 8.4 -10 -11 350630460M 350-63046-0 $1.85 1
(13) SCREW 9208030518M 9208E3-0518 $0.92 1
(14) THROTTLE SHAFT SUPPORT 3B2630630M 3B2-63063-0 $2.31 1
(15) SCREW 9215030612M 921513-0612 OR 921513-0612 $0.93 1
(16) GRIP FRICTION PIECE 3B2630351M 3B2-63035-1 $4.19 1
(17) ADJUSTING SCREW 3B2630340M 3B2-63034-0 $4.19 1
(18) WASHER 9401030600M 940103-0600 OR 940113-0600 $0.70 1
(19) NUT 9301030600M 930113-0600 OR 930113-0600 $0.84 1
(20) THROTTLE CABLE 3B2636001M 3B2-63600-1 $15.87 2
(21) GROMMET THROTTLE CABLE 3B2636210M 3B2-63621-0 $3.27 1
(22) THROTTLE DECAL 369720191M 369-72019-1 $1.20 1
