3. INLET - REED VALVE

Click Here for Microfiche Usage Tip

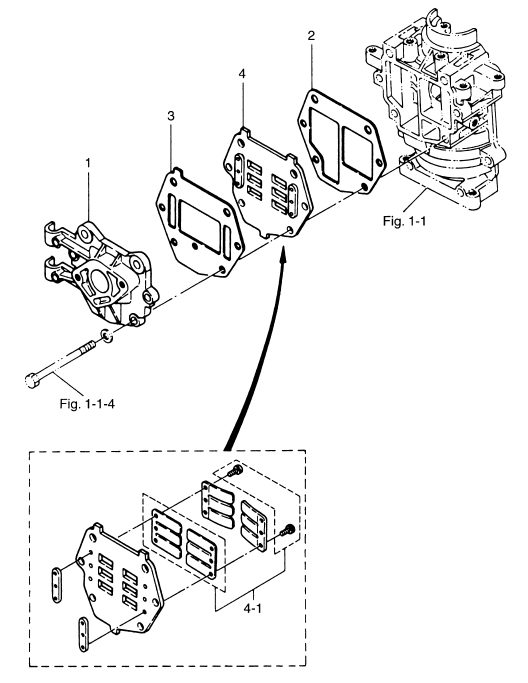

(1) INLET MANIFOLD(2) GASKET INNER, INLET MANIFOLD(3) GASKET OUTER, INLET MANIFOLD(4) REED VALVE ASSY(4-1) REED VALVE SET



Parts List
2003 :: 9.8 HP :: 2 Stroke Tohatsu M9.8B :: INLET - REED VALVE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) INLET MANIFOLD 3B2B020100 3B2B02010-0 $32.23 1
(2) GASKET INNER INLET MANIFOLD 3B2021040M 3B2-02104-0 $4.78 1
(3) GASKET OUTER INLET MANIFOLD 3B2021050M 3B2-02105-0 $4.93 1
(4) REED VALVE ASSY 3B2021000M 3B2-02100-0 $50.61 1
(4-1) REED VALVE SET 3B2021100M 3B2-02110-0 $50.61 1
