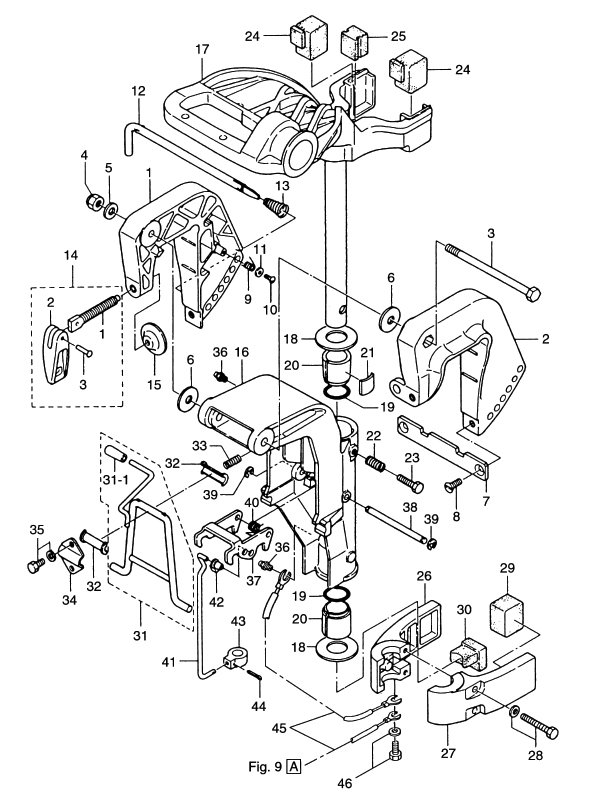

12. BRACKET - REVERSE LOCK

Click Here for Microfiche Usage Tip
(1) STERN BRACKET RIGHT(2) STERN BRACKET LEFT(3) BOLT, 8-122(4) NYLON NUT, 8-P1.25(5) WASHER(6) WASHER, 8.5-28-1(6) WASHER, 8.5-28-1(7) DISTANCE PLATE, BRACKET(8) SCREW(9) SPRING, STERN BRACKET(10) SCREW(11) WASHER, 4.3-16-1.5(12) THRUST ROD(13) SPRING, THRUST ROD(14) CLAMP SCREW ASSY(14-1) CLAMP SCREW(14-2) HANDLE, CLAMP SCREW(14-3) RIVET, 3-22(15) PAD, CLAMP SCREW(16) SWIVEL BRACKET(17) STEERING SHAFT(18) THRUST PLATE, 22-44-2(18) THRUST PLATE, 22-44-2(19) O-RING, 4.25-19.5(19) O-RING, 4.25-19.5(20) BUSHING, STEERING SHAFT(20) BUSHING, STEERING SHAFT(21) FRICTION PLATE, BRACKET(22) SPRING, FRICTION PLATE(23) BOLT(24) MOUNT RUBBER UPPER(24) MOUNT RUBBER UPPER(25) DAMPER RUBBER(26) MOUNT BRACKET "R"(27) MOUNT BRACKET "L"(28) BOLT(29) MOUNT RUBBER LOWER, SIDE(30) MOUNT RUBBER LOWER, FRONT(31) TILT STOPPER(31-1) GRIP, TILT STOPPER(32) BUSHING, TILT STOPPER(32) BUSHING, TILT STOPPER(33) SPRING(34) SET PLATE, TILT STOPPER(35) BOLT(36) GREASE NIPPLE(36) GREASE NIPPLE(37) REVERSE LOCK(38) SHAFT, REVERSE LOCK(39) E-RING, D=5(39) E-RING, D=5(40) SPRING, REVERSE LOCK(41) LINK, REVERSE LOCK(42) ROD SNAP, 5-2.5(43) JOINT, REVERSE LOCK LINK(44) SPLIT PIN, 2-14(45) GROUND CABLE(46) BOLT



Parts List
2003 :: 9.8 HP :: 2 Stroke Nissan NS9.8B :: BRACKET - REVERSE LOCK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STERN BRACKET R 369S621123 369S62112-3 STARBOARD $57.36 1
(2) STERN BRACKET L 369S621132 369S62113-2 PORT $57.36 1
(3) BOLT 8-122 309621152M 309-62115-2 $9.92 1
(4) NYLON NUT 8-P1.25 9304460800M 930446-0800 $1.99 1 Sold Out View More Details
(5) WASHER 9401130800M 940113-0800 $0.84 1
(6) WASHER 8.5-28-1 307621161M 307-62116-1 $1.93 2
(7) DISTANCE PLATE 3B2621180M 3B2-62118-0 $6.47 1 Sold Out View More Details
(8) SCREW 9216130612M 921613-0612 $0.98 2
(9) CLAMP BRACKET SPRING 369621461M 369-62146-1 $2.31 1
(10) SCREW 9207030406M 920703-0406 $0.67 1
(11) WASHER 4.3-16-1.5 369621470M 369-62147-0 $0.76 1
(12) THRUST ROD 350621211M 350-62121-1 $20.96 1
(13) THRUST ROD SPRING 369621222M 369-62122-2 $1.85 1 Sold Out View More Details
(14) CLAMP SCREW ASSY 369S621001 369S62100-1 $26.51 2
(14-1) CLAMP SCREW 369621030M 369-62103-0 $22.95 2
(14-2) HANDLE CLAMP SCREW 307S621021 307S62102-1 $9.29 2
(14-3) RIVET 3C8621041M 3C8-62104-1 $0.92 2
(15) CLAMP SCREW PAD 332621010M 332-62101-0 $3.36 2
(16) SWIVEL BRACKET 3B2S623100 3B2S62310-0 $132.17 1 Sold Out View More Details
(17) STEERING SHAFT 3B2S620100 3B2S62010-0 $176.21 1 Sold Out View More Details
(18) THRUST PLATE 22-44-2 3B2624220M 3B2-62422-0 $4.38 2
(19) O-RING 4.25-19.5 3B2624150M 3B2-62415-0 $2.07 2
(20) BUSHING STEERING SHAFT 3B2624170M 3B2-62417-0 $6.74 2
(21) FRICTION PLATE 345624410M 345-62441-0 $5.55 1
(22) FRICTION PLATE SPRING 309624461M 309-62446-1 $1.59 1
(23) BOLT 9101130830M 910113-0830 $1.67 1
(24) MOUNT RUBBER UPPER 3B2613010M 3B2-61301-0 $4.83 2
(25) DAMPER RUBBER 3B2613370M 3B2-61337-0 $2.68 1
(26) MOUNT BRACKET R 3K9S614010 3K9S614010 $40.76 1
(27) MOUNT BRACKET L 3B2S614010 3B2S61401-0 $40.76 1
(28) BOLT 9101135640M 910113-5640 $1.68 2
(29) MOUNT RUBBER LOWER SIDE 3B2613020M 3B2-61302-0 $5.55 2
(30) MOUNT RUBBER LOWER FRONT 3B2613360M 3B2-61336-0 $4.19 1
(31) TILT STOPPER 3B2S624313 3B2S62431-3 8B # 67218~ $34.68 1 Sold Out View More Details
(31-1) TILT STOPPER GRIP 369624331M 369-62433-1 $1.85 1
(32) TILT STOPPER BUSHING 393624370M 393-62437-0 8B # 67218~ $2.25 2
(33) SPRING 369661121M 369-66112-1 $1.61 1
(34) TILT STOPPER SETTING PLATE 369624391M 369-62439-1 $4.40 1
(35) BOLT 9101135612M 910113-5612 $1.07 2
(36) GREASE FITTING 344671770M 344-67177-0 $2.56 2 Sold Out View More Details
(37) REVERSE LOCK B 3B2663220M 3B2663220M $19.83 1
(38) REVERSE LOCK ROD 3B2663211M 3B2-66321-1 $4.19 1
(39) E-RING D=5 9453030500M 945303-0500 $0.86 2
(40) REVERSE LOCK SPRING 3B2663150M 3B2-66315-0 $2.31 1
(41) LINK REVERSE LOCK 3B2663050M 3B2-66305-0 $9.89 1
(42) ROD SNAP 5-2.5 345052240M 345-05224-0 $1.45 1
(43) JOINT REVERSE LOCK LINK 3B2663020M 3B2-66302-0 $3.00 1
(44) SPLIT PIN 2-14 9515030214M 951503-0214 $0.84 1
(45) GROUND CABLE 3A3623960M 3A3-62396-0 $17.85 2
(46) BOLT 9101135612M 910113-5612 $1.07 1
