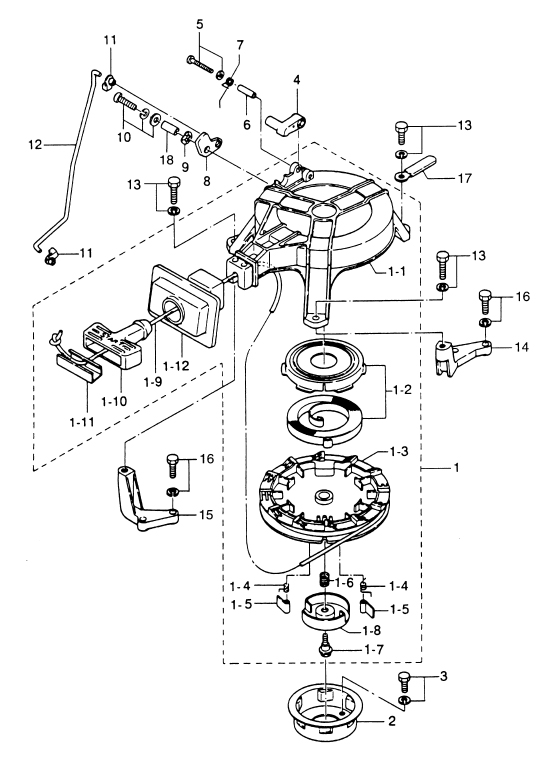

8. RECOIL STARTER & STARTER LOCK

Click Here for Microfiche Usage Tip
(1) RECOIL STARTER(1-1) STARTER CASE(1-2) STARTER SPRING SET(1-3) REEL(1-4) RETURN SPRING(1-4) RETURN SPRING(1-5) RATCHET(1-5) RATCHET(1-6) FRICTION SPRING(1-7) BOLT, STARTER SHAFT(1-8) FRICTION PLATE(1-9) STARTER ROPE(1-10) STARTER HANDLE(1-11) ROPE ANCHOR(1-12) SEAL PLATE, STARTER(2) STARTER PULLEY(3) BOLT(4) STARTER LOCK(5) SCREW(6) COLLAR, 4-6-21(7) SPRING, STARTER LOCK(8) CAM, STARTER LOCK(9) WAVE WASHER, D=8(10) SCREW(11) ROD SNAP, 4-2(11) ROD SNAP, 4-2(12) ROD, STARTER LOCK(13) BOLT(13) BOLT(13) BOLT(14) STARTER BRACKET "L"(15) STARTER BRACKET "R"(16) BOLT(16) BOLT(17) CLAMP, 6.5-47.5P(18) COLLAR, 6.1-8-4



Parts List
2003 :: 9.8 HP :: 2 Stroke Nissan NS9.8B :: RECOIL STARTER & STARTER LOCK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RECOIL STARTER 3B2050000M 3B2-05000-0 $186.40 1
(1-1) STARTER CASE 3B2051050M 3B2-05105-0 $82.87 1 Sold Out View More Details
(1-2) STARTER SPRING SET 3B2050100M 3B2-05010-0 $34.51 1
(1-3) REEL 3B2051040M 3B2-05104-0 $43.73 1
(1-4) RETURN SPRING 369050120M 369-05012-0 $1.85 2
(1-5) RATCHET 3B2050030M 3B2-05003-0 $4.83 2
(1-6) FRICTION SPRING 369050070M 369-05007-0 $1.59 1
(1-7) BOLT STARTER SHAFT 3B2051380M 3B2-05138-0 $3.02 1
(1-8) FRICTION PLATE 3B2050060M 3B2-05006-0 $6.97 1
(1-9) STARTER ROPE 3B2050130M 3B2-05013-0 ø 4.5-1620 $12.61 1
(1-10) STARTER HANDLE 3B2050190M 3B2-05019-0 $8.29 1
(1-11) ROPE ANCHOR 3B2051310M 3B2-05131-0 $6.40 1
(1-12) SEAL PLATE STARTER 3B2051160M 3B2-05116-0 $12.63 1 Sold Out View More Details
(2) STARTER PULLEY 3B2059010M 3B2-05901-0 $17.49 1
(3) BOLT 9101216612M 910121-6612 $0.70 3
(4) STARTER LOCK 338052520M 338-05252-0 $3.27 1
(5) SCREW 9215035430M 921503-5430 $0.93 1
(6) COLLAR 4- 6- 21 338052550M 338-05255-0 $1.85 1
(7) SPRING STARTER LOCK 338052160M 338-05216-0 $1.27 1
(8) CAM STARTER LOCK 3B2052530M 3B2-05253-0 $2.76 1
(9) WAVE WASHER D=8 9414030800M 941403-0800 $0.90 1
(10) SCREW 9215037616M 921503-7616 $1.36 1
(11) ROD SNAP 4-2 3K9052230M 3K9-05223-0 9.8B # 15989~ / 8B # 75661~ $1.02 2
(12) ROD STARTER LOCK 3B2052171M 3B2-05217-1 9.8B # 15989~ / 8B # 75661~ $3.31 1
(13) BOLT 9101036620M 910103-6620 $1.13 3
(14) STARTER BRACKET L 3B2B051010 3B2B05101-0 $8.05 1
(15) STARTER BRACKET R 3B2B051020 3B2B05102-0 $10.72 1
(16) BOLT 9101216623M 910121-6623 $0.79 4
(17) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(18) COLLAR 6.1-8-4 3M2052150M 3M2-05215-0 $1.30 1
