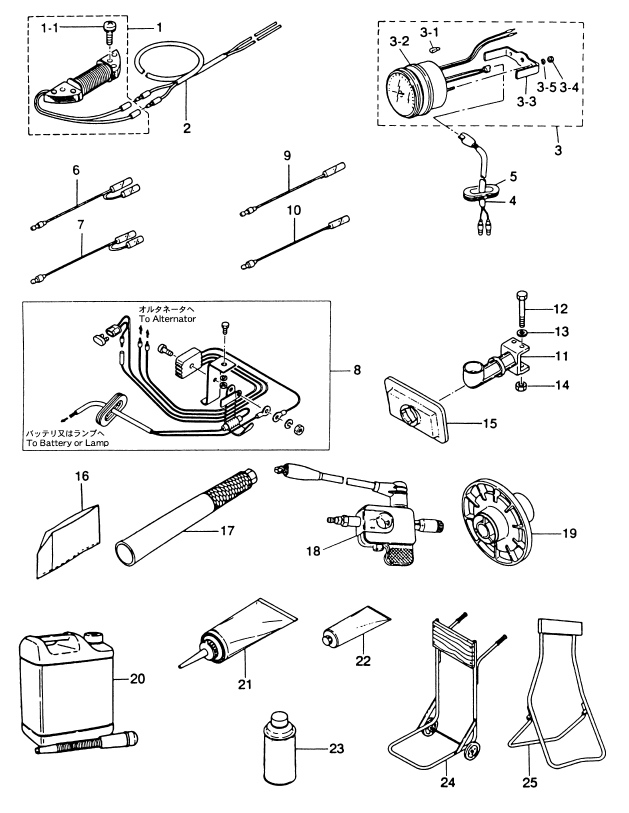

18. OPTIONAL PARTS

Click Here for Microfiche Usage Tip
(1) ALTERNATOR SET (12V80W)(1-1) SCREW(2) EXTENSION CORD(3) TACHOMETER(3-1) BULB, METER (12V1.7W)(3-2) DAMPER, METER(3-3) FITTING PLATE(3-4) NUT(3-5) SPRING WASHER(4) LEAD WIRE, TACHOMETER(5) GROMMET, CORD(6) SEPARATE CORD (YELLOW)(7) SEPARATE CORD (WHITE)(8) RECTIFIER KIT "A"(9) LEAD WIRE (BROWN)(10) LEAD WIRE (BLACK)(11) ELBOW, VERTICAL STARTING(12) BOLT(13) WASHER(14) NUT(15) SEAL RUBBER, VERTICAL STARTING(16) VINYL MOTOR COVER (M)(17) LONG HANDLE, 0.4M(18) SPARK TESTER(19) TEST PROPELLER(20) TOHATSU PREMIUM TCW3 OIL (12-PINTS)(20) TOHATSU PREMIUM TCW3 OIL (12-QUARTS)(20) TOHATSU PREMIUM TCW3 OIL (4-GALLONS)(20) TOHATSU PREMIUM TCW3 OIL (55 GALLON DRUM)(20) NISSAN PREMIUM TCW3 OIL (12-PINTS)(20) NISSAN PREMIUM TCW3 OIL (12-QUARTS)(20) NISSAN PREMIUM TCW3 OIL (4-GALLONS)(21) TOHATSU GEAR LUBE (12-QUARTS)(21) TOHATSU GEAR LUBE (5 GAL PAIL)(21) TOHATSU GEAR LUBE (16 GAL DRUM)(21) NISSAN GEAR LUBE (12-QUARTS)(21) NISSAN GEAR LUBE (5 GAL PAIL)(21) NISSAN GEAR LUBE (16 GAL DRUM)(22) TOHATSU GREASE (10-14 OZ. CARTRIDGE)(22) NISSAN GREASE (10-14 OZ. CARTRIDGE)(23) TOUCH-UP PAINT (SILVER GRAY)(24) CART(25) STAND



Parts List
2003 :: 8 HP :: 2 Stroke Nissan NS8B :: OPTIONAL PARTS
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ALTERNATOR SET 3B2061231M 3B2-06123-1 FOR MF TYPE $52.85 1
(1-1) SCREW 9215216625M 921521-6625 $0.56 2
(2) EXTENSION CORD LIGHT 369761670M 369-76167-0 L=2000 $10.59 1
(3) TACHOMETER (WITHOUT OIL LAMP) 3B7725301M 3B7-72530-1 UNIQUE $0.00 1 Sold Out View More Details
(3-1) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 $0.00 1 Sold Out View More Details
(3-2) METER DAMPER 3B7726560M 3B7-72656-0 $3.27 1
(3-3) FITTING PLATE 3B7726610M 3B7-72661-0 $25.33 1
(3-4) NUT 9302030500M 930203-0500 $0.60 2
(3-5) SPRING WASHER 9413030500M 941303-0500 $0.90 2
(4) TACHOMETER LEAD CABLE 361725390M 361-72539-0 L=6000 $50.65 1
(5) GROMMET CORD 345671690M 345-67169-0 $10.59 1
(6) SEPARATE CORD (YELLOW) 361725430M 361-72543-0 $4.40 1
(7) SEPARATE CORD (WHITE) 361725420M 361-72542-0 $8.17 1
(8) RECTIFIER KIT 346761602M 346-76160-2 $94.25 1
(9) LEAD WIRE (BROWN) 3B2760970M 3B2-76097-0 FOR EP $0.00 1 Sold Out View More Details
(10) LEAD WIRE (BLACK) 3B2760980M 3B2-76098-0 FOR EP $4.19 1 Sold Out View More Details
(11) ELBOW VERTICAL STARTING 3B2B059110 3B2B05911-0 $0.00 1 Sold Out View More Details
(12) BOLT 9101030655M 910103-0655 $1.41 2
(13) WASHER 9401030600M 940103-0600 OR 940113-0600 $0.70 2
(14) NUT 9301030600M 930113-0600 OR 930113-0600 $0.84 2
(15) VERTICAL STARTING SEAL 3B2059120M 3B2-05912-0 $13.51 1
(16) VINYL MOTOR COVER (M) 332723110M 332-72311-0 UNIQUE $0.00 1 Sold Out View More Details
(17) LONG HANDLE 0.4M 3B2630370 3B2-63037-0 $0.00 1 Sold Out View More Details
(18) SPARK TESTER 3F3725400M 3F3-72540-0 $169.88 1
(19) TEST PROPELLER 3B2641100M 3B2-64110-0 $253.42 1
(20) TOHATSU PREMIUM TCW3 OIL (12-PINTS) 332723041M 332723041M PINTS - 12 PER CASE $0.00 1 Sold Out View More Details
(20) TOHATSU PREMIUM TCW3 OIL (12-QUARTS) 332723081M 332723081M QUARTS - 12 PER CASE $145.62 1
(20) TOHATSU PREMIUM TCW3 OIL (4-GALLONS) 332723051M 332723051M GALLONS - 4 PER CASE $163.62 1
(20) TOHATSU PREMIUM TCW3 OIL (55 GALLON DRUM) 332723061M 332723061M 55 GALLON DRUM $1,678.23 1 Sold Out View More Details
(20) NISSAN PREMIUM TCW3 OIL (12-PINTS) 332723011M 332723011M PINTS - 12 PER CASE $0.00 1 Sold Out View More Details
(20) NISSAN PREMIUM TCW3 OIL (12-QUARTS) 332723071M 332723071M QUARTS - 12 PER CASE $145.62 1
(20) NISSAN PREMIUM TCW3 OIL (4-GALLONS) 332723021M 332723021M GALLONS - 4 PER CASE $163.62 1
(21) TOHATSU GEAR LUBE (12-QUARTS) 332823100M 332823100M QUARTS - 12 PER CASE $140.48 1
(21) TOHATSU GEAR LUBE (5 GAL PAIL) 332823120M 332823120M 5 GALLON PAIL $200.25 1
(21) TOHATSU GEAR LUBE (16 GAL DRUM) 332823140M 332823140M 16 GALLON DRUM $0.00 1 Sold Out View More Details
(21) NISSAN GEAR LUBE (12-QUARTS) 332823090M 332823090M QUARTS - 12 PER CASE $140.48 1
(21) NISSAN GEAR LUBE (5 GAL PAIL) 332823110M 332823110M 5 GALLON PAIL $200.25 1
(21) NISSAN GEAR LUBE (16 GAL DRUM) 332823130M 332823130M 16 GALLON DRUM $0.00 1 Sold Out View More Details
(22) TOHATSU GREASE (10-14 OZ. CARTRIDGE) 332823180M 332823180M 14OZ. CARTRIDGES - 10 PER CASE $0.00 1 Sold Out View More Details
(22) NISSAN GREASE (10-14 OZ. CARTRIDGE) 332823170M 332823170M 14OZ. CARTRIDGES - 10 PER CASE $0.00 1 Sold Out View More Details
(23) TOUCH-UP PAINT (SILVER GRAY) 3B7723260M 3B7-72326-0 N.A.F.N. $0.00 1 Sold Out View More Details
(24) CART 332724010M 332-72401-0 $0.00 1 Sold Out View More Details
(25) STAND 332724020M 332-72402-0 $0.00 1 Sold Out View More Details
