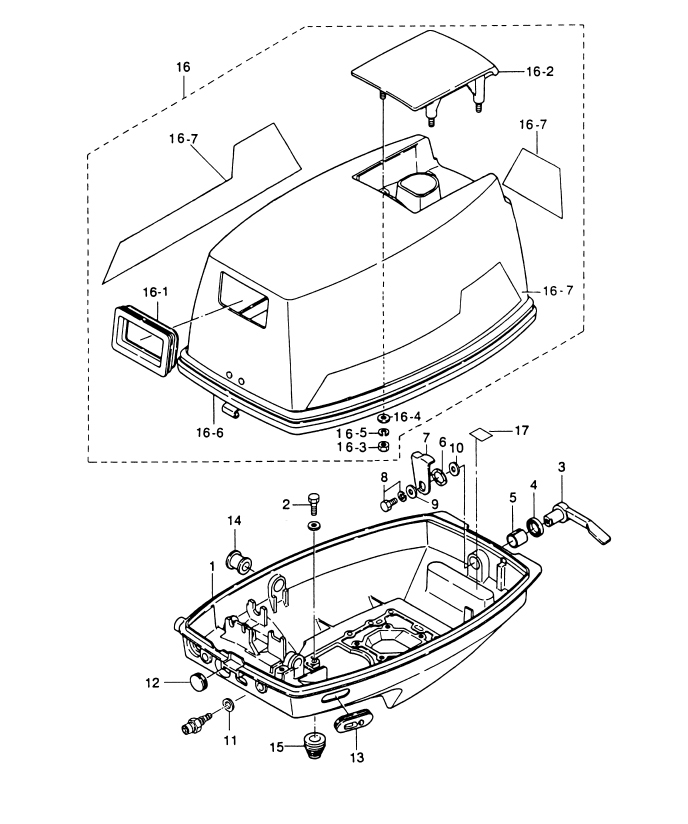

13. MOTOR COVER

Click Here for Microfiche Usage Tip
(1) MOTOR COVER LOWER(2) BOLT(3) HOOK LEVER(4) SEAL RING, HOOK LEVER(5) BUSHING, HOOK LEVER(6) WAVE WASHER, D=14(7) COVER HOOK(8) BOLT(9) WASHER, 6-16-1.5(10) WASHER,14-22-1(11) GASKET,10.2-16-0.5(12) GROMMET,17-2.7(13) GROMMET, BATTERY CABLE(14) GROMMET THROTTLE SHAFT(15) GROMMET,17-3(16) MOTOR COVER UPPER(16) MOTOR COVER UPPER(16-1) SEAL RUBBER, STARTER(16-2) TILT HANDLE(16-3) NUT(16-4) WASHER(16-5) SPRING WASHER(16-6) SEAL RUBBER, MOTOR COVER UPPER(16-7) DECAL SET(16-7) DECAL SET(16-7) DECAL SET(16-7) DECAL SET(16-7) DECAL SET(16-7) DECAL SET(17) LABEL, SPARK PLUG(17) LABEL, SPARK PLUG (RESISTANCE)



Parts List
2003 :: 8 HP :: 2 Stroke Nissan NS8B :: MOTOR COVER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) MOTOR COVER LOWER 3B2S671001 3B2S67100-1 8B # 36551~ $0.00 1 Sold Out View More Details
(2) BOLT 9101135620M 910113-5620 $1.30 4
(3) HOOK LEVER 369S671411 369S67141-1 $8.63 1
(4) SEAL RING 338671470M 338-67147-0 $1.85 1
(5) BUSHING 369671050M 369-67105-0 $2.07 1
(6) WAVE WASHER D=14 9414031400M 941403-1400 $0.83 1
(7) COVER HOOK 369671420M 369-67142-0 $6.65 1
(8) BOLT 9101036612M 910103-6612 $1.16 1
(9) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 OR 3C8-66308-0 $1.59 1
(10) WASHER 14-22-1 3C8671460M 3C8-67146-0 $1.47 1
(11) GASKET 10.2-16-0.5 336701120M 336-70112-0 $1.55 1
(12) GROMMET 17-2.7 345671170M 345-67117-0 $2.31 1 Sold Out View More Details
(13) GROMMET BATTERY CORD 353671620M 353-67162-0 $3.31 1
(14) GROMMET 3B2671870M 3B2-67187-0 FOR MF/EF TYPE $3.27 1
(15) GROMMET 17 - 3 345662260M 345-66226-0 $3.91 1 Sold Out View More Details
(16) MOTOR COVER UPPER 3K9S675001 3K9S67500-1 TOHATSU $0.00 1 Sold Out View More Details
(16) MOTOR COVER UPPER 3N2N675005 3N2N67500-5 NISSAN $0.00 1 Sold Out View More Details
(16-1) STARTER SEAL 3B2675030M 3B2-67503-0 $9.66 1
(16-2) TILT HANDLE 3B2S675210 3B2S67521-0 $32.23 1
(16-3) NUT 9301030600M 930113-0600 OR 930113-0600 $0.84 4
(16-4) WASHER 9401030600M 940103-0600 OR 940113-0600 $0.70 4
(16-5) SPRING WASHER 9413030600M 941303-0600 $0.84 4
(16-6) TOP COWL SEAL 3F3675010M 3F3-67501-0 $35.48 1
(16-7) DECAL SET 3B2S878011 3B2S87801-1 TOHATSU $0.00 1 Sold Out View More Details
(16-7) DECAL SET 3B3878015M 3B387801-5 NISSAN $0.00 1 Sold Out View More Details
(17) LABEL SPARK PLUG 369720250M 369-72025-0 $0.00 1 Sold Out View More Details
(17) LABEL SPARK PLUG (RESISTANCE) 369720260M 369-72026-0 $0.00 1 Sold Out View More Details
