5. MAGNETO

Click Here for Microfiche Usage Tip

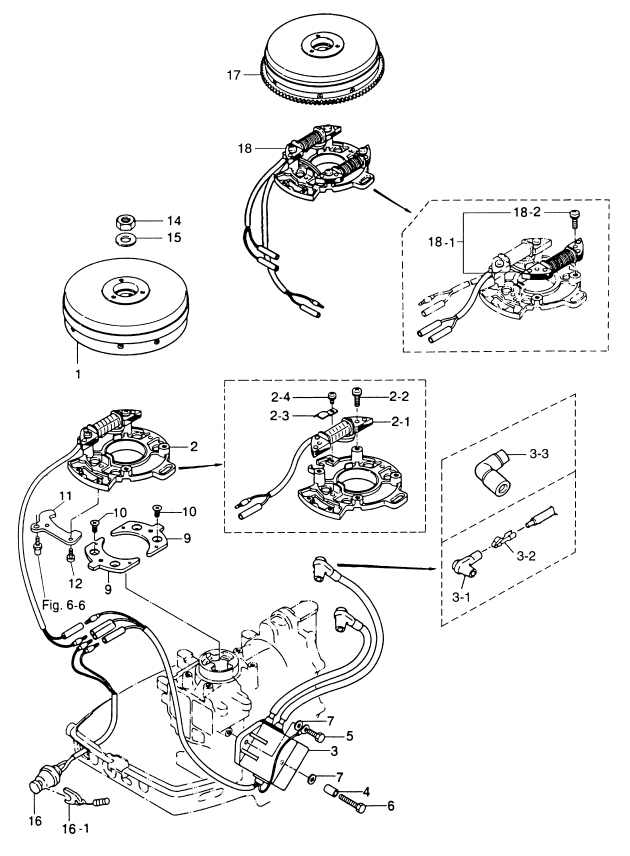

(1) FLYWHEEL CUP(2) COIL PLATE ASSY (WITHOUT ALTERNATOR)(2-1) EXCITER COIL(2-2) SCREW(2-3) HOLDER, MAGNETO CORD(2-4) SCREW(3) C.D. UNIT (WITH RESISTANCE CAP)(3-1) PLUG CAP(3-2) TERMINAL, PLUG CAP(3-3) PLUG CAP ( WITH RESISTANCE)(4) SPACER, 6.2-9-27(5) BOLT(6) BOLT(7) WASHER(7) WASHER(9) SET PLATE, LOWER(9) SET PLATE, LOWER(10) SCREW(10) SCREW(11) STOPPER, COIL PLATE(12) SCREW(14) NUT, MAGNETO (12P-1.25)(15) WASHER(16) LANYARD STOP SWITCH(16-1) LOCK, LANYARD STOP SWITCH(17) FLYWHEEL CUP (WITH RING GEAR)(18) COIL PLATE ASSY (WITH ALTERNATOR)(18-1) ALTERNATOR SET(18-2) SCREW



Parts List
2003 :: 8 HP :: 2 Stroke Nissan NS8B :: MAGNETO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL CUP 3B2061010M 3B2-06101-0 FOR MF TYPE $0.00 1 Sold Out View More Details
(2) COIL PLATE ASSY (WITHOUT ALTERNATOR) 3B2061021M 3B2-06102-1 8B # 40401~ / FOR MF TYPE $286.33 1
(2-1) EXCITER COIL 3B2061200M 3B2-06120-0 $59.46 1
(2-2) SCREW 9215216625M 921521-6625 $0.56 2
(2-3) HOLDER MAGNETO CORD 3B2061350M 3B2-06135-0 $1.85 1 Sold Out View More Details
(2-4) SCREW 9215216406M 921521-6406 $1.99 1
(3) C.D. UNIT (WITH RESISTANCE CAP) 3B2061700M 3B2-06170-0 $296.84 1
(3-1) PLUG CAP 3M2069210M 3M2069210M $9.66 2
(3-2) TERMINAL PLUG CAP 3M2069260M 3M2-06926-0 $5.58 2
(3-3) PLUG CAP ( WITH RESISTANCE) 3C7069210M 3C7-06921-0 $5.66 2
(4) SPACER 6.2 - 9 - 27 3B2061620M 3B2-06162-0 $2.07 1
(5) BOLT 9101140620M 910114-0620 $0.90 1
(6) BOLT 9101140645M 910114-0645 $1.25 1
(7) WASHER 9401030600M 940103-0600 OR 940113-0600 $0.70 2
(9) SET PLATE LOWER 3B2637240M 3B2-63724-0 $6.47 2
(10) SCREW 9216030612M 921613-0612 OR 621621-0612 $0.98 4
(11) STOPPER COIL PLATE 3B2052331M 3B2-05233-1 $0.00 1 Sold Out View More Details
(12) SCREW 9215036510M 921503-6510 $0.49 2
(14) NUT 12-P1.25 369001320M 369-00132-0 $1.61 1
(15) WASHER 9401211200M 940121-1200 $0.97 1
(16) STOP SWITCH 398068300M 398-06830-0 $48.44 1
(16-1) STOP SWITCH LANYARD 353068210M 353-06821-0 $16.48 1 Sold Out View More Details
(17) FLYWHEEL CUP (WITH ALTERNATOR) 3B2061941M 3B2-06194-1 8B # 41351~ / FOR EF/EP TYPE $0.00 1 Sold Out View More Details
(18) COIL PLATE ASSY (WITH ALTERNATOR) 3B2061032M 3B2-06103-2 8B # 40401~ / FOR EF/EP TYPE $219.10 1
(18-1) ALTERNATOR SET 3B2061231M 3B2-06123-1 8B # 36351~ / FOR EF/EP TYPE $52.85 1
(18-2) SCREW 9215216625M 921521-6625 $0.56 2
