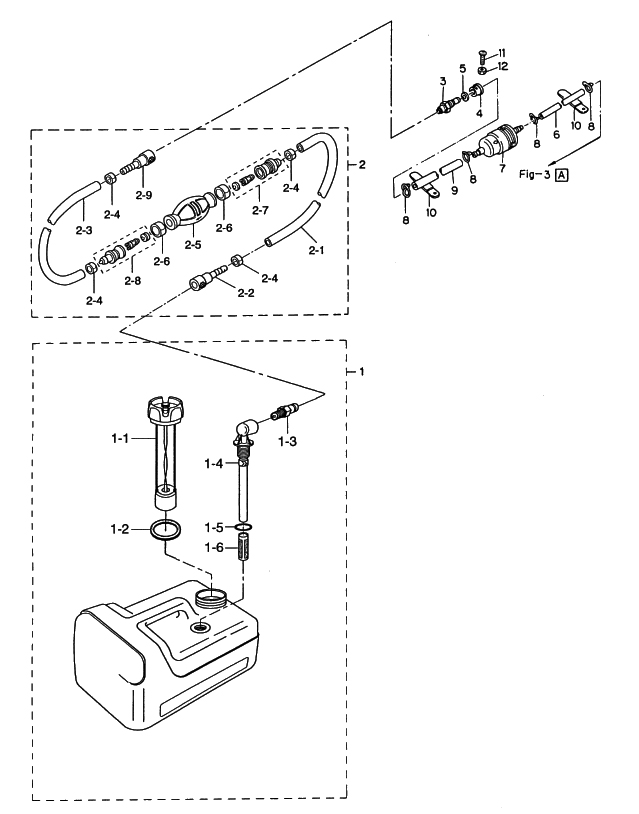

14. SEPARATE FUEL TANK (PLASTIC) - 5BS MODEL

Click Here for Microfiche Usage Tip
(1) FUEL TANK (12L, PLASTIC)(1-1) FUEL GAUGE VENTED CAP(1-2) CAP GASKET(1-3) MALE QUICK CONNECTOR(1-4) ELBOW TUBING AND CLAMP ASSY(1-5) O-RING(1-6) FILTER(2) PRIMER BULB ASSY(2-1) FUEL PIPE(2-2) FUEL CONNECTOR (TANK SIDE, FEMALE)(2-3) FUEL PIPE(2-4) CLAMP(2-4) CLAMP(2-4) CLAMP(2-4) CLAMP(2-5) PRIMER BULB(2-6) CLAMP(2-6) CLAMP(2-7) JOINT "A" ASSY IN(2-8) OINT "A" ASSY OUT(2-9) FUEL CONNECTOR (ENGINE SIDE, FEMALE)(3) FUEL CONNECTOR (ENGINE, MALE)(4) BUSHING, FUEL CONNECTOR(5) SPRING WASHER(6) FUEL PIPE(7) FUEL FILTER(8) CLIP, FUEL PIPE(8) CLIP, FUEL PIPE(8) CLIP, FUEL PIPE(8) CLIP, FUEL PIPE(9) FUEL PIPE(10) CLAMP, 6.5-47.5P(10) CLAMP, 6.5-47.5P(11) SCREW(12) NUT



Parts List
2003 :: 5 HP :: 2 Stroke Tohatsu M5B :: SEPARATE FUEL TANK (PLASTIC) - 5BS MODEL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FUEL TANK (12L PLASTIC) 3B2701670M 3B2-70167-0 FOR SEPARATE TANK MODEL 5BS ONLY $87.32 0
(1-1) FUEL GAUGE VENTED CAP 3B2700500M 3B2-70050-0 FOR SEPARATE TANK MODEL 5BS ONLY $0.00 0 Sold Out View More Details
(1-2) TANK CAP GASKET 3C7700210M 3C7-70021-0 FOR SEPARATE TANK MODEL 5BS ONLY $0.00 0 Sold Out View More Details
(1-3) MALE QUICK CONNETOR 3E0702700M 3E0-70270-0 FOR SEPARATE TANK MODEL 5BS ONLY $9.71 0
(1-4) ELBOW TUBING AND CLAMP ASSY 3B2701550M 3B2-70155-0 FOR SEPARATE TANK MODEL 5BS ONLY $11.97 0
(1-5) O-RING 3C7701990M 3C7-70199-0 FOR SEPARATE TANK MODEL 5BS ONLY $1.24 0
(1-6) FILTER 3C7701130M 3C7-70113-0 FOR SEPARATE TANK MODEL 5BS ONLY $3.20 0
(2) PRIMER BULB ASSY 3B7702003M 3B7-70200-3 FOR SEPARATE TANK MODEL 5BS ONLY $125.87 0
(2-1) RUBBER HOSE 98AB71600M 98AB-7-1600 FOR SEPARATE TANK MODEL 5BS ONLY $13.44 0
(2-2) FUEL CONNECTOR (TANK SIDE FEMALE) 3B2702810M 3B2-70281-0 FOR SEPARATE TANK MODEL 5BS ONLY $21.33 0
(2-3) RUBBER HOSE 98AB70700M 98AB-7-0700 FOR SEPARATE TANK MODEL 5BS ONLY $13.44 0
(2-4) CLAMP 332702010M 332-70201-0 FOR SEPARATE TANK MODEL 5BS ONLY $2.07 0
(2-5) PRIMER BULB 3C7702110M 3C7-70211-0 FOR SEPARATE TANK MODEL 5BS ONLY $22.31 0
(2-6) CLAMP 3C7702170M 3C7-70217-0 FOR SEPARATE TANK MODEL 5BS ONLY $3.27 0
(2-7) JOINT A ASSY IN 3C7702201M 3C7-70220-1 FOR SEPARATE TANK MODEL 5BS ONLY $8.52 0
(2-8) JOINT A ASSY OUT 3C7702241M 3C7-70224-1 FOR SEPARATE TANK MODEL 5BS ONLY $8.77 0
(2-9) FUEL CONNECTOR (ENGINE SIDE FEMALE) 3B2702501M 3B2-70250-1 FOR SEPARATE TANK MODEL 5BS ONLY $21.46 0
(3) FUEL CONNECTOR (ENGINE MALE) 3B2702601M 3B2-70260-1 FOR SEPARATE TANK MODEL 5BS ONLY $16.97 0
(4) BUSHING FUEL CONNECTOR 369702630M 369-70263-0 FOR SEPARATE TANK MODEL 5BS ONLY $7.08 0
(5) SPRING WASHER 9413031000M 941303-1000 FOR SEPARATE TANK MODEL 5BS ONLY $0.51 0
(6) RUBBER HOSE 98AB50150M 98AB-5-0150 FOR SEPARATE TANK MODEL 5BS ONLY $11.41 0
(7) FUEL FILTER 369022300M 369-02230-0 FOR SEPARATE TANK MODEL 5BS ONLY $12.14 0
(8) CLIP ø10 338022150M 338-02215-0 FOR SEPARATE TANK MODEL 5BS ONLY $1.41 0
(9) RUBBER HOSE 98AB51000M 98AB51000M FOR SEPARATE TANK MODEL 5BS ONLY $11.41 0
(10) CLAMP 6.5-47.5P 309069720M 309-06972-0 FOR SEPARATE TANK MODEL 5BS ONLY $2.07 0
(11) SCREW 9215030414M 921503-0414 FOR SEPARATE TANK MODEL 5BS ONLY $0.64 0
(12) NUT 9301030400M 930103-0400 FOR SEPARATE TANK MODEL 5BS ONLY $0.56 0
