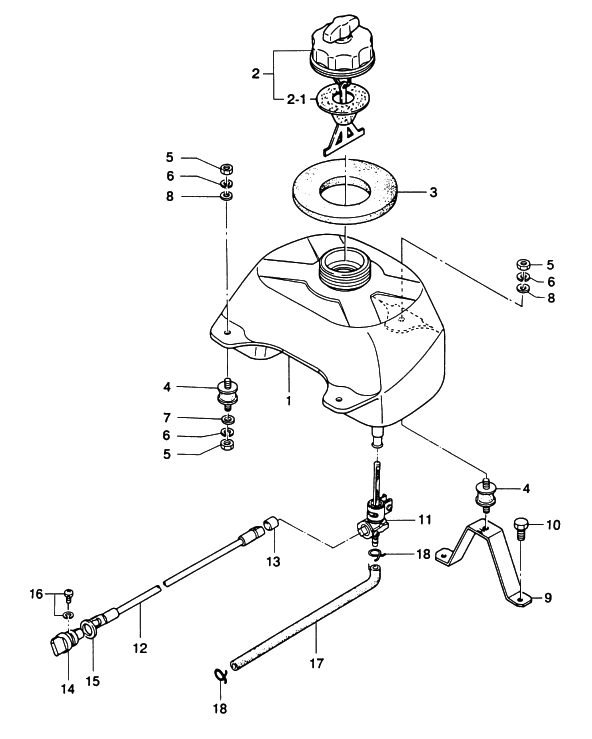

13. INTEGRAL FUEL TANK - 5B MODEL

Click Here for Microfiche Usage Tip
(1) FUEL TANK(2) FUEL TANK CAP(2-1) CAP GASKET(3) SEAL RUBBER, FUEL TANK(4) MOUNT RUBBER, FUEL TANK(4) MOUNT RUBBER, FUEL TANK(5) NUT(5) NUT(5) NUT(6) SPRING WASHER(6) SPRING WASHER(6) SPRING WASHER(7) WASHER, 6-16-1.5(8) WASHER, 6.5-23-1.5(8) WASHER, 6.5-23-1.5(9) STAY, FUEL TANK(10) BOLT(11) FUEL COCK(12) ROD, FUEL COCK(13) TUBE, FUEL COCK ROD(14) KNOB, FUEL COCK ROD(15) RUBBER, FUEL COCK ROD KNOB(16) SCREW(17) FUEL PIPE(18) CLIP, FUEL PIPE(18) CLIP, FUEL PIPE



Parts List
2003 :: 5 HP :: 2 Stroke Tohatsu M5B :: INTEGRAL FUEL TANK - 5B MODEL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FUEL TANK 369703162M 369-70316-2 $77.11 1
(2) FUEL TANK CAP 393700205M 393-70020-5 $14.17 1
(2-1) CAP GASKET 3D6700210M 3D6-70021-0 $2.40 1
(3) SEAL RUBBER FUEL TANK 369700362M 369-70036-2 $10.98 1
(4) MOUNT RUBBER FUEL TANK 369700570M 369-70057-0 $10.59 3
(5) NUT 9301030600M 930113-0600 OR 930113-0600 $0.84 5
(6) SPRING WASHER 9413030600M 941303-0600 $0.84 5
(7) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 OR 3C8-66308-0 $1.59 2 Sold Out View More Details
(8) WASHER 6.5 - 23 -1.5 345051220M 345-05122-0 $2.17 3
(9) STAY FUEL TANK 369B703120 369B70312-0 $10.81 1
(10) BOLT 9101140616M 910114-5616 $0.69 2
(11) FUEL COCK 369703110M 369-70311-0 $29.88 1
(12) ROD FUEL COCK 369700610M 369-70061-0 $7.50 1
(13) FUEL COCK ROD HOSE 353725440M 353-72544-0 $2.97 1 Sold Out View More Details
(14) FUEL COCK KNOB 369700620M 369-70062-0 $5.07 1
(15) SEAL RING 369700630M 369-70063-0 $2.56 1
(16) SCREW 9215036410M 921503-6410 $0.90 1
(17) FUEL PIPE 369703150M 369-70315-0 $7.08 1
(18) CLIP ø10 338022150M 338-02215-0 $1.41 2
