6. RECOIL STARTER & STARTER LOCK

Click Here for Microfiche Usage Tip

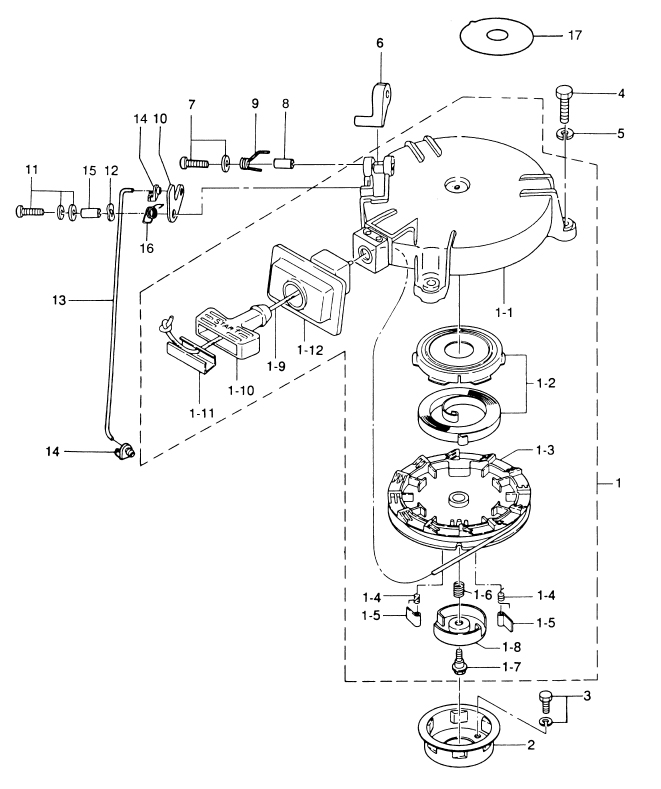

(1) RECOIL STARTER(1-1) STARTER CASE(1-2) STARTER SPRING SET(1-3) REEL(1-4) RETURN SPRING(1-4) RETURN SPRING(1-5) RATCHET(1-5) RATCHET(1-6) FRICTION SPRING(1-7) BOLT, STARTER SHAFT(1-8) FRICTION PLATE(1-9) STARTER ROPE(1-10) STARTER HANDLE(1-11) ROPE ANCHOR(1-12) SEAL PLATE, STARTER(2) STARTER PULLEY(3) BOLT(4) BOLT(5) SPRING WASHER(6) STARTER LOCK(7) SCREW(8) COLLAR, 4-6-21(9) SPRING, STARTER LOCK(10) CAM, STARTER LOCK(11) SCREW(12) WAVEWASHER(13) ROD, STARTER LOCK(14) ROD SNAP, 3.5-2(14) ROD SNAP, 3.5-2(15) COLLAR, 6.1-8-6.5(16) SPRING, STARTER LOCK CAM(17) CAUTION LABEL



Parts List
2003 :: 5 HP :: 2 Stroke Tohatsu M5B :: RECOIL STARTER & STARTER LOCK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RECOIL STARTER 3R1050900M 3R1-05090-0 5B # 26924~ $115.18 1
(1-1) STARTER CASE 3R1051050M 3R1-05105-0 5B # 26924~ $44.80 1
(1-2) STARTER SPRING SET 3B2050100M 3B2-05010-0 $34.51 1
(1-3) REEL 3B2051040M 3B2-05104-0 $43.73 1
(1-4) RETURN SPRING 3R1050120M 3H6-05012-0 5B # 26924~ $2.22 2
(1-5) RATCHET 3B2050030M 3B2-05003-0 $4.83 2
(1-6) FRICTION SPRING 369050070M 369-05007-0 $1.59 1
(1-7) BOLT STARTER SHAFT 3B2051380M 3B2-05138-0 $3.02 1
(1-8) FRICTION PLATE 3B2050060M 3B2-05006-0 $6.97 1
(1-9) STARTER ROPE 3B2050130M 3B2-05013-0 ø 4.5-1620 $12.61 1
(1-10) STARTER HANDLE (OLD) 3R1050190M 3H6-05019-0 5B # 26924~ $7.00 1
(1-11) ROPE ANCHOR 3R1051310M 3R1-05131-0 5B # 26924~ $4.78 1
(1-12) SEAL PLATE STARTER 3B2051160M 3B2-05116-0 $12.63 1 Sold Out View More Details
(2) STARTER PULLEY 3B2059010M 3B2-05901-0 $17.49 1
(3) BOLT 9101216612M 910121-6612 $0.70 3
(4) BOLT 9101140623M 910114-0623 $0.65 3
(5) SPRING WASHER 9413030600M 941303-0600 $0.84 3
(6) STARTER LOCK 338052520M 338-05252-0 $3.27 1
(7) SCREW 9215035430M 921503-5430 $0.93 1
(8) COLLAR 4- 6- 21 338052550M 338-05255-0 $1.85 1
(9) SPRING STARTER LOCK 338052160M 338-05216-0 $1.27 1
(10) STARTER LOCK CAM 3R1052530M 3R1-05253-0 5B # 26924~ $1.27 1
(11) SCREW 9215037616M 921503-7616 $1.36 1
(12) WAVEWASHER 3H6052590M 3H6-05259-0 5B # 26924~ $0.70 1
(13) ROD STARTER LOCK 369052170M 369052170M $7.92 1
(14) ROD SNAP 3.5-2 345052231M 345-05223-1 $1.45 2
(15) COLLAR 6.1-8-6.5 3R1052150M 3R1-05215-0 5B # 26924~ $2.08 1
(16) STARTER LOCK CAM SPRING 3R1052580M 3R1-05258-0 5B # 26924~ $1.27 1
(17) CAUTION DECAL B 3R0721810M 3R0-72181-0 5B # 26924~ $3.85 1
