4. MAGNETO

Click Here for Microfiche Usage Tip

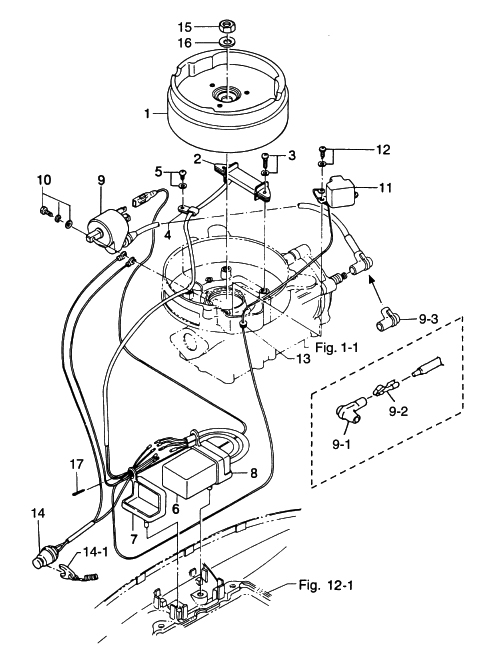

(1) FLYWHEEL CUP(2) EXCITER COIL(3) SCREW(4) CLAMP, 4.2-3-8(5) SCREW(6) C. D. UNIT(7) DAMPER RUBBER "B"(8) DAMPER RUBBER "A"(9) IGNITION COIL(9-1) PLUG CAP(9-2) TERMINAL, PLUG CAP(9-3) PLUG CAP ( WITH RESISTANCE)(10) BOLT(11) PULSER COIL(12) SCREW(13) GROMMET, PULSER COIL(14) LANYARD STOP SWITCH(14-1) LOCK, LANYARD STOP SWITCH(15) NUT, MAGNETO (12P-1.25)(16) WASHER(17) SPLIT PIN, 3-18



Parts List
2003 :: 5 HP :: 2 Stroke Tohatsu M5B :: MAGNETO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL CUP 369060011M 369-06001-1 $0.00 1 Sold Out View More Details
(2) EXCITER COIL 369060210M 369-06021-0 $50.65 1
(3) SCREW 9215216520M 921521-6520 $0.40 2
(4) CLAMP 4.2-3-8 369069150M 369-06915-0 $2.31 1
(5) SCREW 9215216408M 921521-6408 $0.63 1
(6) C. D. UNIT 369060601M 369-06060-1 $176.21 1
(7) RUBBER DAMPER B 3H6069070M 3H6-06907-0 $4.63 1
(8) RUBBER DAMPER A 3H6069060M 3H6-06906-0 $4.63 1
(9) IGNITION COIL 369060502M 369-06050-2 $42.69 1
(9-1) PLUG CAP 3M2069210M 3M2069210M $9.66 1
(9-2) TERMINAL PLUG CAP 3M2069260M 3M2-06926-0 $5.58 1
(9-3) PLUG CAP ( WITH RESISTANCE) 3C7069210M 3C7-06921-0 $5.66 1
(10) BOLT 9101035620M 910103-5620 OR 910113-5620 $1.30 2
(11) PULSER COIL 369060710M 369-06071-0 $41.86 1
(12) SCREW 9215216412M 921521-6412 $0.97 1
(13) PULSER COIL GROMMET 369069080M 369-06908-0 $1.55 1
(14) STOP SWITCH 3D5068700M 3D5-06870-0 $54.43 1
(14-1) STOP SWITCH LANYARD 353068210M 353-06821-0 $16.48 1 Sold Out View More Details
(15) NUT 12-P1.25 369001320M 369-00132-0 $1.61 1
(16) WASHER 9401211200M 940121-1200 $0.97 1
(17) SPLIT PIN 3-18 9515030318M 951503-0318 $0.95 1
