3. CARBURETOR

Click Here for Microfiche Usage Tip

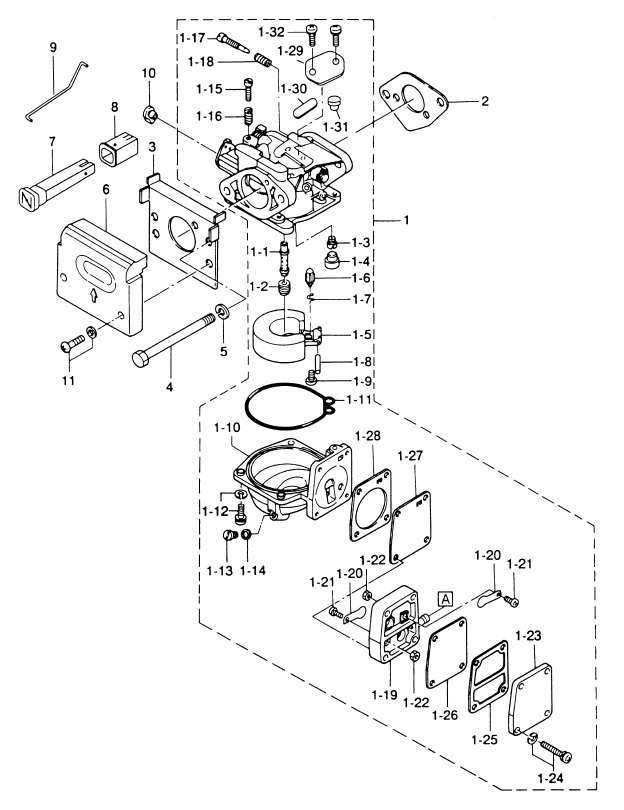

(1) CARBURETOR(1-1) MAIN NOZZLE(1-2) MAIN JET # 78(1-3) SLOW JET # 52(1-4) RUBBER CAP(1-5) FLOAT(1-6) FLOAT VALVE(1-7) CLIP(1-8) ARM PIN, FLOAT(1-9) SCREW(1-10) FLOAT CHAMBER(1-11) O-RING, FLOAT CHAMBER(1-12) SCREW(1-13) DRAIN SCREW(1-14) GASKET, DRAIN SCREW(1-15) STOP SCREW(1-16) SPRING "A"(1-17) ADJUST SCREW(1-18) SPRING "B"(1-19) PUMP BODY(1-20) CHECK VALVE(1-20) CHECK VALVE(1-21) SCREW(1-21) SCREW(1-22) NUT(1-22) NUT(1-23) PUMP COVER(1-24) SCREW(1-25) GASKET, PUMP COVER(1-26) DIAPHRAGM "A"(1-27) DIAPHRAGM "B"(1-28) GASKET, PUMP BODY(1-29) CARBURETOR COVER(1-30) GASKET "A", CARBURETOR COVER(1-31) GASKET "B", CARBURETOR COVER(1-32) SCREW(2) GASKET, CARBURETOR(3) HOLDER, BAFFLE PLATE(4) BOLT(5) SPRING WASHER(6) BAFFLE PLATE(7) CHOKE ROD(8) GROMMET, CHOCK ROD(9) ROD, CHOCK LINK(10) ROD SNAP o 3B(11) SCREW



Parts List
2003 :: 5 HP :: 2 Stroke Tohatsu M5B :: CARBURETOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CARBURETOR 369032002M 369-03200-2 78BC $197.95 1
(1-1) MAIN NOZZLE 369032521M 369-03252-1 $15.46 1
(1-2) MAIN JET # 78 369032510M 369-03251-0 $6.50 1
(1-3) SLOW JET # 52 393032540M 393-03254-0 $11.14 1
(1-4) RUBBER CAP 346032560M 346-03256-0 $2.25 1
(1-5) FLOAT 369032310M 369-03231-0 $30.77 1
(1-6) FLOAT VALVE 369032400M 369-03240-0 $12.47 1
(1-7) CLIP 344032440M 344-03244-0 $3.51 1
(1-8) ARM PIN FLOAT HINGE 346032320M 346-03232-0 $2.31 1
(1-9) SCREW 9215210408M 921521-0408 $0.76 1
(1-10) FLOAT CHAMBER 369032210M 369-03221-0 $34.51 1
(1-11) O-RING FLOAT CHAMBER 369032220M 369-03222-0 $6.07 1
(1-12) SCREW 9225036412M 922503-6412 $1.47 4
(1-13) DRAIN SCREW 369032920M 369-03292-0 $7.71 1
(1-14) GASKET DRAIN SCREW 369032930M 369032930M $1.34 1
(1-15) STOP SCREW 346032650M 346-03265-0 $4.54 1
(1-16) SPRING A 346032670M 346-03267-0 $2.08 1
(1-17) ADJUST SCREW 3B2032660M 3B2-03266-0 $8.52 1
(1-18) SPRING B 356032680M 356-03268-0 $2.58 1
(1-19) PUMP BODY 369033040M 369-03304-0 $17.77 1
(1-20) CHECK VALVE 369033050M 369-03305-0 $4.66 2
(1-21) SCREW 9218210306M 921821-0306 $1.44 2
(1-22) NUT 9301210300M 930121-0300 $0.88 2
(1-23) PUMP COVER 369033010M 369-03301-0 $13.51 1
(1-24) SCREW 9225536423M 922553-6423 $2.58 4
(1-25) GASKET PUMP COVER 369033020M 369-03302-0 $2.74 1
(1-26) DIAPHRAGM A 369033030M 369-03303-0 $7.71 1
(1-27) DIAPHRAGM B 369033060M 369-03306-0 $8.80 1
(1-28) GASKET PUMP BODY 369033070M 369-03307-0 $2.74 1
(1-29) CARBURETOR COVER 369031810M 369-03181-0 $0.00 1 Sold Out View More Details
(1-30) GASKET A CARBURETOR COVER 369031820M 369-03182-0 $2.22 1
(1-31) GASKET B CARBURETOR COVER 369031830M 369-03183-0 $2.58 1
(1-32) SCREW 369031860M 369-03186-0 $1.44 2
(2) GASKET CARBURETOR 369020110M 369-02011-0 $2.07 1
(3) HOLDER BAFFLE PLATE 369025031M 369-02503-1 $8.05 1
(4) BOLT 9161810685M 916181-0685 $1.73 2
(5) SPRING WASHER 9413220600M 941322-0600 $0.35 2
(6) BAFFLE PLATE 369025012M 369-02501-2 $5.55 1
(7) CHOKE ROD 369671512M 369-67151-2 $6.63 1
(8) GROMMET CHOCK ROD 393671040M 393-67104-0 $3.87 1
(9) ROD CHOCK LINK 393671920M 393-67192-0 $2.25 1
(10) ROD SNAP ø 3B 346671961M 346-67196-1 $2.56 1
(11) SCREW 9215035418M 921503-5418 $0.58 2
