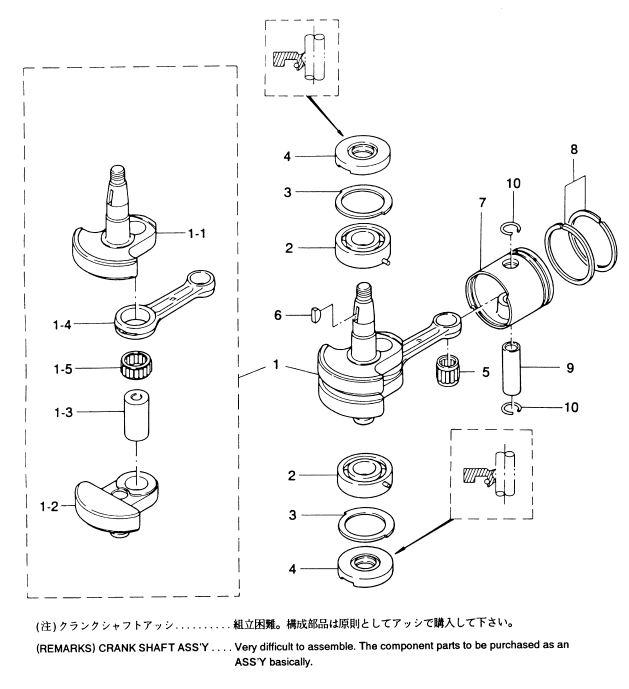

2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip
(1) CRANK SHAFT(1-1) CRANK SHAFT A(1-2) CRANK SHAFT D(1-3) CRANK PIN(1-4) CONNECTING ROD(1-5) NEEDLE BEARING, 20-26-12(2) BALL BEARING, 6204(2) BALL BEARING, 6204(3) THRUST PLATE, CRANK SHAFT(3) THRUST PLATE, CRANK SHAFT(4) OIL SEAL, 20-47-8(4) OIL SEAL, 20-47-8(5) NEEDLE BEARING, 14-18-20(6) KEY, MAGNETO(7) PISTON (STD)(7) PISTON (0.5MM O/S)(8) PISTON RING (STD)(8) PISTON RING (0.5MM O/S)(9) PISTON PIN(10) CLIP, PISTON PIN(10) CLIP, PISTON PIN



Parts List
2003 :: 5 HP :: 2 Stroke Tohatsu M5B :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANK SHAFT 369000300M 369-00030-0 $197.35 1
(1-1) CRANK SHAFT A 369000310M 369-00031-0 $0.00 1 Sold Out View More Details
(1-2) CRANK SHAFT D 369000340M 369-00034-0 $0.00 1 Sold Out View More Details
(1-3) CRANK PIN 369000610M 369-00061-0 $12.61 1
(1-4) CONNECTING ROD 369000400M 369-00040-0 $73.63 1
(1-5) NEEDLE BEARING 20-26-12 369000430M 369-00043-0 $11.28 1
(2) BALL BEARING 6204 960336204M 9603-3-6204 $15.82 2
(3) THRUST PLATE CRANK SHAFT 369001150M 369-00115-0 $1.55 2
(4) OIL SEAL 20-47-8 369001220M 369-00122-0 $6.95 2
(5) NEEDLE BEARING 14-18-20 350000420M 350-00042-0 $13.25 1
(6) MAGNETO KEY 338001310M 338-00131-0 $3.39 1
(7) PISTON (STD) 369000010M 369-00001-0 $52.85 1
(7) PISTON (0.5MM O/S) 369000040M 369-00004-0 OPTION $59.46 1
(8) PISTON RING 2ND (STD) 351000110M 351-00011-0 $9.46 2
(8) PISTON RING 2ND (0.5MM O/S) 351000140M 351-00014-0 OPTION $10.59 2
(9) PISTON PIN 369000210M 369-00021-0 $7.71 1
(10) PISTON PIN CLIP 350000241M 350-00024-1 $0.86 2
