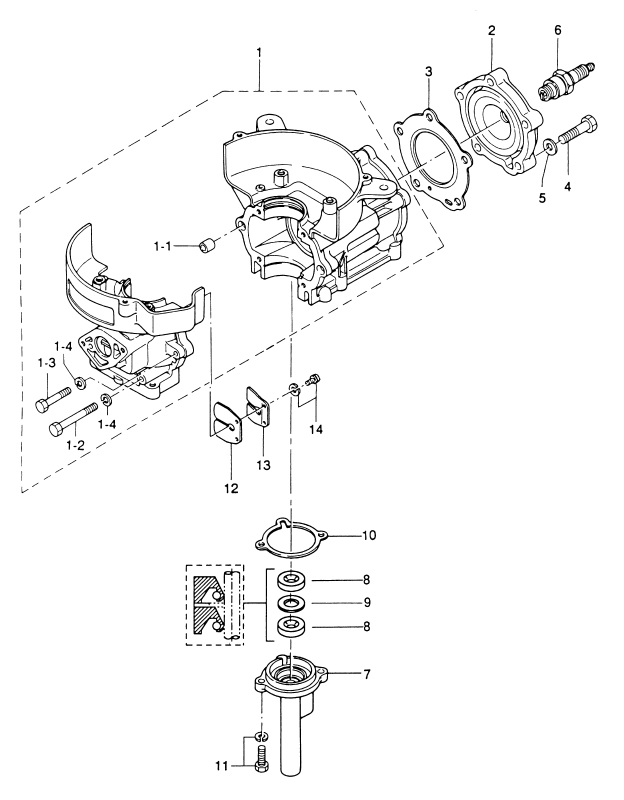

1. CYLINDER - CRANK CASE ASSEMBLY

Click Here for Microfiche Usage Tip
(1) CYLINDER, CRANK CASE(1-1) KNOCK, 6-12(1-2) BOLT(1-3) BOLT(1-4) SPRING WASHER(1-4) SPRING WASHER(2) CYLINDER HEAD(3) GASKET, CYLINDER HEAD(4) BOLT(5) WASHER(6) SPARK PLUG(6) SPARK PLUG ( WITH RESISTANCE)(7) HEAD, CRANK CASE(8) OIL SEAL, 10.1-25-7(8) OIL SEAL, 10.1-25-7(9) SPACER,19-24.8-1(10) GASKET, CRANK CASE HEAD(11) BOLT(12) REED VALVE(13) STOPPER, REED VALVE(14) SCREW



Parts List
2003 :: 5 HP :: 2 Stroke Tohatsu M5B :: CYLINDER - CRANK CASE ASSEMBLY
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYLINDER CRANK CASE 369B011002 369B01100-2 $0.00 1 Sold Out View More Details
(1-1) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(1-2) BOLT 9161240653M 916124-0653 $1.34 4
(1-3) BOLT 9161240630M 916124-0630 OR 916114-0630 $1.21 2
(1-4) SPRING WASHER 9413220600M 941322-0600 $0.35 6
(2) CYLINDER HEAD 369B010011 369B01001-1 $48.44 1
(3) GASKET CYLINDER HEAD 369010051M 369-01005-1 $26.48 1
(4) BOLT 9161140835M 916114-0835 $1.50 5
(5) WASHER 9401210800M 940121-0800 $0.37 5
(6) SPARK PLUG ( WITH RESISTANCE) 970101005M 970101005M NGK BP 7HS-10 $4.64 1
(6) SPARK PLUG ( WITH RESISTANCE) 970101005M 970101005M NGK BPR 7HS-10 $4.64 1
(7) CRANK CASE HEAD 369012104M 369-01210-4 $22.31 1
(8) OIL SEAL 10-25-7 369012150M 369-01215-0 $5.07 2
(9) SPACER 19-24.8-1 369012170M 369-01217-0 $1.30 1
(10) CRANK CASE HEAD GASKET 369012140M 369-01214-0 $12.31 1
(11) BOLT 9101036620M 910103-6620 $1.13 2
(12) REED VALVE 369021110M 369-02111-0 $6.90 1
(13) STOPPER REED VALVE 369021130M 369-02113-0 $4.38 1
(14) SCREW 9215216410M 921521-6410 $1.07 2
