16. OPTIONAL PARTS (2) ACCESSORIES

Click Here for Microfiche Usage Tip
(1) ALTERNATOR (12V60W)(2) SCREW(3) CLAMP, 4.2-3-8(4) SCREW(5) EXTENSION CORD(6) RECTIFIER(6-1) FUSE (10A)(7) SCREW(8) SPRING WASHER(9) WASHER(10) CLAMP, 7-80P(11) NUT(12) EXTENSION CORD(13) ELBOW, VERTICAL STARTING(14) SEAL RUBBER, VERTICAL STARTING(15) TAPPING SCREW(16) LONG HANDLE 0.4M(16) LONG HANDLE 0.8M(16) LONG HANDLE 1.0M(17) SPARK TESTER(18) FLUSHING ATTACHMENT(19) TEST PROPELLER(20) TOHATSU GEAR LUBE (12-QUARTS)(20) TOHATSU GEAR LUBE (5 GAL PAIL)(20) TOHATSU GEAR LUBE (16 GAL DRUM)(20) NISSAN GEAR LUBE (12-QUARTS)(20) NISSAN GEAR LUBE (5 GAL PAIL)(20) NISSAN GEAR LUBE (16 GAL DRUM)(21) TOHATSU GREASE (10-14 OZ. CARTRIDGE)(21) NISSAN GREASE (10-14 OZ. CARTRIDGE)(22) TOUCH-UP PAINT (SILVER GRAY)(23) TOHATSU PREMIUM TCW3 OIL (12-PINTS)(23) TOHATSU PREMIUM TCW3 OIL (12-QUARTS)(23) TOHATSU PREMIUM TCW3 OIL (4-GALLONS)(23) TOHATSU PREMIUM TCW3 OIL (55 GALLON DRUM)(23) NISSAN PREMIUM TCW3 OIL (12-PINTS)(23) NISSAN PREMIUM TCW3 OIL (12-QUARTS)(23) NISSAN PREMIUM TCW3 OIL (4-GALLONS)(24) VINYL MOTOR COVER (S)(25) CART(26) STAND(27) ALTERNATOR KIT(28) RECTIFIER KIT



Parts List

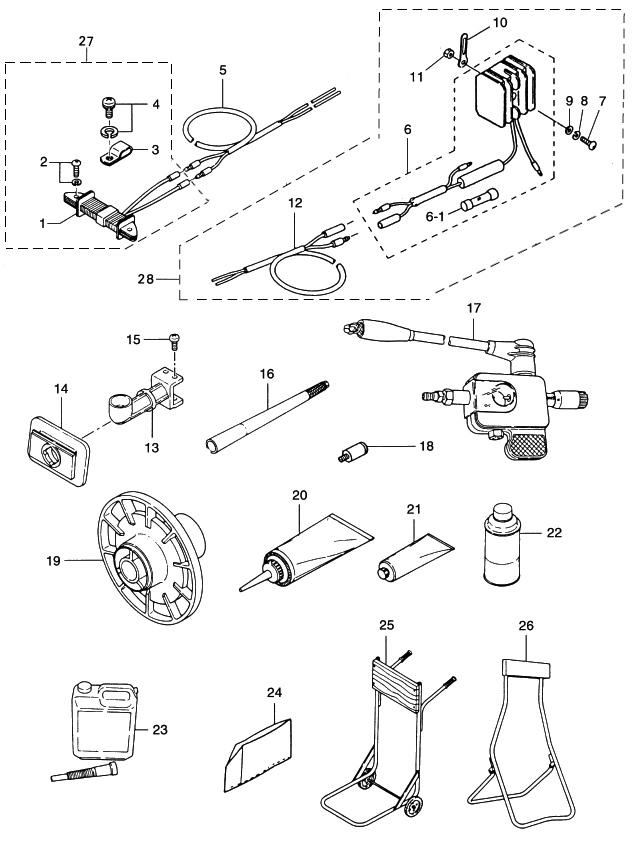

2003 :: 5 HP :: 2 Stroke Nissan NS5B :: OPTIONAL PARTS (2) ACCESSORIES
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ALTERNATOR (12V60W) 399060231M 399-06023-1 $30.42 1
(2) SCREW 9215216520M 921521-6520 $0.40 2
(3) CLAMP 4.2-3-8 369069150M 369-06915-0 $2.31 1
(4) SCREW 9215216408M 921521-6408 $0.63 1
(5) EXTENSION CORD LIGHT 369761670M 369-76167-0 L=2000 $10.59 1
(6) RECTIFIER 369760601M 369-76060-1 $48.83 1
(6-1) FUSE (10A) 334762110M 334-76211-0 $1.90 1
(7) SCREW 9215030530M 921503-0530 $0.65 1
(8) SPRING WASHER 9413030500M 941303-0500 $0.90 1
(9) WASHER 9401030500M 940103-0500 $0.53 1
(10) CLAMP 7-80P 353069720M 353-06972-0 $2.19 1
(11) NUT 9301030500M 930103-0500 $0.86 1
(12) EXTENSION CORD 369761610M 369-76161-0 L=2000 $11.02 1
(13) VERTICAL STARTING ELBOW 369B059110 369B05911-0 $73.15 1
(14) VERTICAL STARTING SEAL 3B2059120M 3B2-05912-0 $13.51 1
(15) TAPPING SCREW 6-12 369059130M 369-05913-0 $0.00 4 Sold Out View More Details
(16) LONG HANDLE 0.4M 3B2630370 3B2-63037-0 $0.00 1 Sold Out View More Details
(16) LONG HANDLE 0.8M 3A1630390M 3A1-63039-0 $0.00 1 Sold Out View More Details
(16) LONG HANDLE 1.0M 3A1630380M 3A1-63038-0 $0.00 1 Sold Out View More Details
(17) SPARK TESTER 3F3725400M 3F3-72540-0 $169.88 1
(18) FLUSHING ATTACHMENT 336600070M 336-60007-0 $8.05 1
(19) TEST PROPELLER 369641110M 369-64111-0 $0.00 1 Sold Out View More Details
(20) TOHATSU GEAR LUBE (12-QUARTS) 332823100M 332823100M QUARTS - 12 PER CASE $140.48 1
(20) TOHATSU GEAR LUBE (5 GAL PAIL) 332823120M 332823120M 5 GALLON PAIL $200.25 1
(20) TOHATSU GEAR LUBE (16 GAL DRUM) 332823140M 332823140M 16 GALLON DRUM $0.00 1 Sold Out View More Details
(20) NISSAN GEAR LUBE (12-QUARTS) 332823090M 332823090M QUARTS - 12 PER CASE $140.48 1
(20) NISSAN GEAR LUBE (5 GAL PAIL) 332823110M 332823110M 5 GALLON PAIL $200.25 1
(20) NISSAN GEAR LUBE (16 GAL DRUM) 332823130M 332823130M 16 GALLON DRUM $0.00 1 Sold Out View More Details
(21) TOHATSU GREASE (10-14 OZ. CARTRIDGE) 332823180M 332823180M 14OZ. CARTRIDGES - 10 PER CASE $89.08 1
(21) NISSAN GREASE (10-14 OZ. CARTRIDGE) 332823170M 332823170M 14OZ. CARTRIDGES - 10 PER CASE $89.08 1
(22) TOUCH-UP PAINT (SILVER GRAY) 3B7723260M 3B7-72326-0 N.A.F.N. $0.00 1 Sold Out View More Details
(23) TOHATSU PREMIUM TCW3 OIL (12-PINTS) 332723041M 332723041M PINTS - 12 PER CASE $0.00 1 Sold Out View More Details
(23) TOHATSU PREMIUM TCW3 OIL (12-QUARTS) 332723081M 332723081M QUARTS - 12 PER CASE $145.62 1
(23) TOHATSU PREMIUM TCW3 OIL (4-GALLONS) 332723051M 332723051M GALLONS - 4 PER CASE $1,678.23 1 Sold Out View More Details
(23) TOHATSU PREMIUM TCW3 OIL (55 GALLON DRUM) 332723061M 332723061M 55 GALLON DRUM $163.62 1
(23) NISSAN PREMIUM TCW3 OIL (12-PINTS) 332723011M 332723011M PINTS - 12 PER CASE $0.00 1 Sold Out View More Details
(23) NISSAN PREMIUM TCW3 OIL (12-QUARTS) 332723071M 332723071M QUARTS - 12 PER CASE $1,678.23 1 Sold Out View More Details
(23) NISSAN PREMIUM TCW3 OIL (4-GALLONS) 332723021M 332723021M GALLONS - 4 PER CASE $163.62 1
(24) VINYL MOTOR COVER (S) 369723140M 369-72314-0 UNIQUE $0.00 1 Sold Out View More Details
(25) CART 332724010M 332-72401-0 $0.00 1 Sold Out View More Details
(26) STAND 332724020M 332-72402-0 $0.00 1 Sold Out View More Details
(27) ALTERNATOR KIT 3H6061280M 3H6-06128-0 $30.91 1
(28) RECTIFIER KIT 3H6761600M 3H6-76160-0 $49.78 1
